diff --git a/packages/preview/xwysyy/0.5.0/LICENSE b/packages/preview/xwysyy/0.5.0/LICENSE
new file mode 100644
index 0000000000..45bb67b23e
--- /dev/null
+++ b/packages/preview/xwysyy/0.5.0/LICENSE
@@ -0,0 +1,22 @@
+MIT License
+
+Copyright (c) 2025 Carlos-Mero
+Copyright (c) 2026 xwysyy
+
+Permission is hereby granted, free of charge, to any person obtaining a copy
+of this software and associated documentation files (the "Software"), to deal
+in the Software without restriction, including without limitation the rights
+to use, copy, modify, merge, publish, distribute, sublicense, and/or sell
+copies of the Software, and to permit persons to whom the Software is
+furnished to do so, subject to the following conditions:
+
+The above copyright notice and this permission notice shall be included in all
+copies or substantial portions of the Software.
+
+THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
+IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
+FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
+AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
+LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
+OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE
+SOFTWARE.
diff --git a/packages/preview/xwysyy/0.5.0/README.md b/packages/preview/xwysyy/0.5.0/README.md
new file mode 100644
index 0000000000..d61369a834
--- /dev/null
+++ b/packages/preview/xwysyy/0.5.0/README.md
@@ -0,0 +1,210 @@
+xwysyy
+
+
+
+
+
+
+
+
+
+
+ 中文 | English
+
+
+Academic presentation templates built on [touying](https://github.com/touying-typ/touying). The package covers slide decks, handouts, speaker notes, and pdfpc metadata. The visual theme is derived from [Carlos-Mero/may](https://github.com/Carlos-Mero/may) under MIT.
+
+## Features
+
+- Universe template support: `typst init @preview/xwysyy:0.5.0` creates a ready-to-compile deck.
+- Six built-in themes: `sky`, `sunset`, `forest`, `midnight`, `violet`, and `graphite`.
+- Custom theme dictionaries can be passed directly to `theme`, so users can customize colors without forking the package.
+- `xwysyy-pre` takes `font`, `code-font`, and `lang`, plus `heading-font` for the header title.
+- Touying handout mode, `#speaker-note`, and pdfpc export are documented with tagged source examples.
+- Eight semantic layout components (`duo-slide`, `grid-slide`, `figure-slide`, `stat-slide`, ...) measure every block at compile time, distribute space fill-first, and export layout telemetry without hand-written `#v()` spacing.
+
+## Preview
+
+Rendered previews are generated from the [tagged source examples](https://github.com/xwysyy/xwysyy-typst/tree/v0.5.0/examples).
+
+### Slide Themes
+

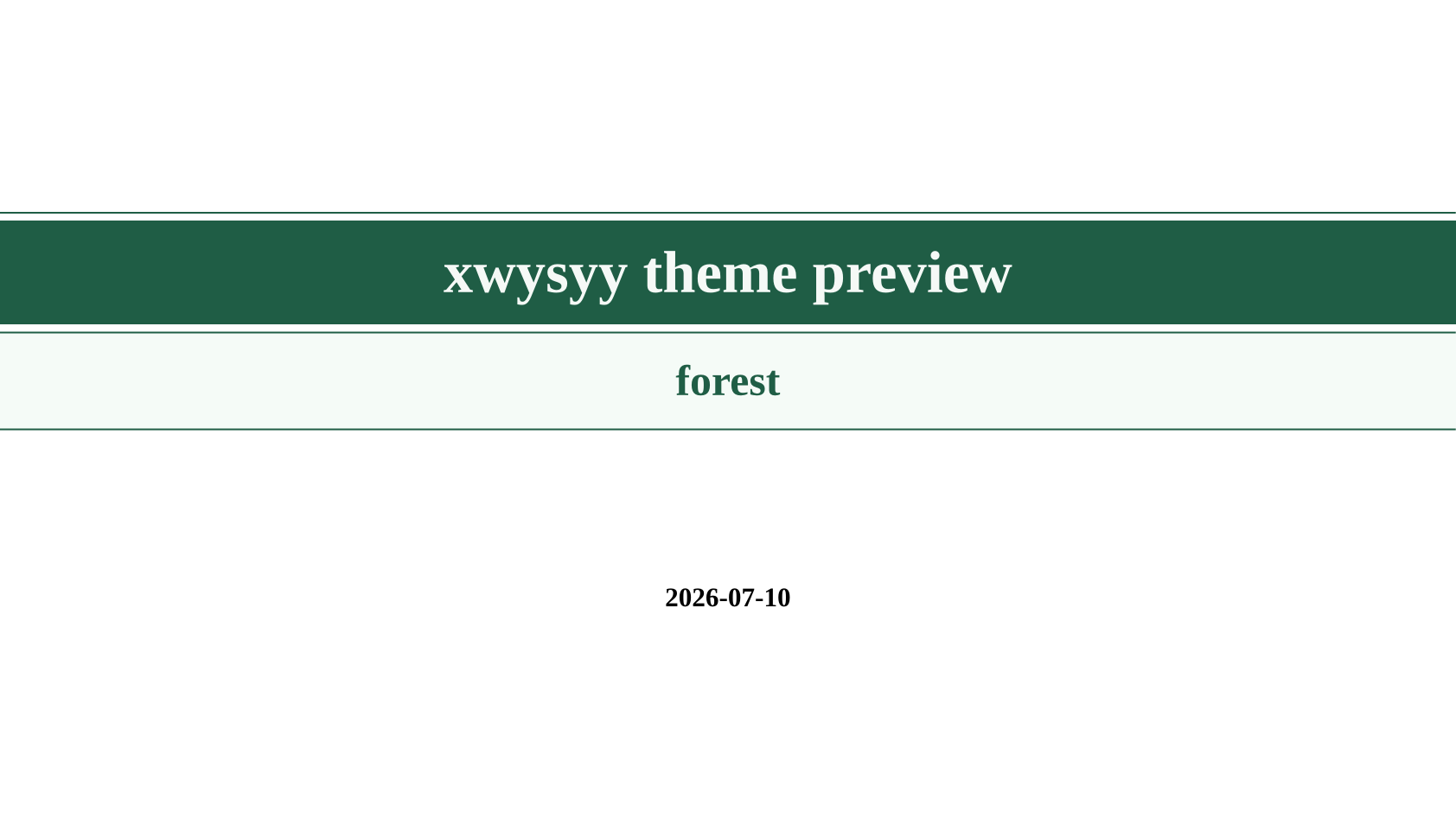

+| sky | sunset | forest |
+|:---:|:---:|:---:|
+|  |  |  |
+

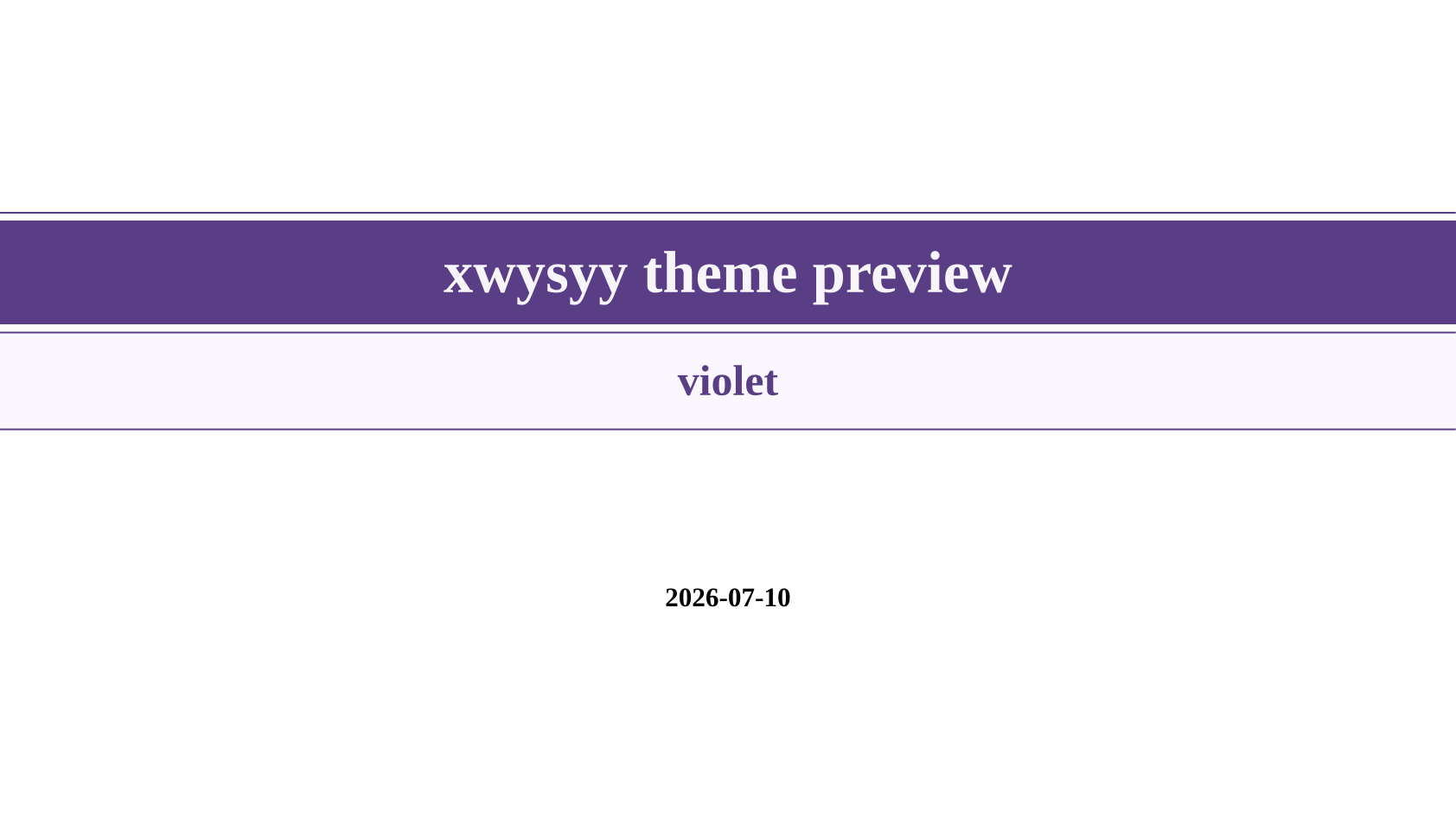

+| midnight | violet | graphite |
+|:---:|:---:|:---:|
+|  |  |  |
+
+### Component Pages
+

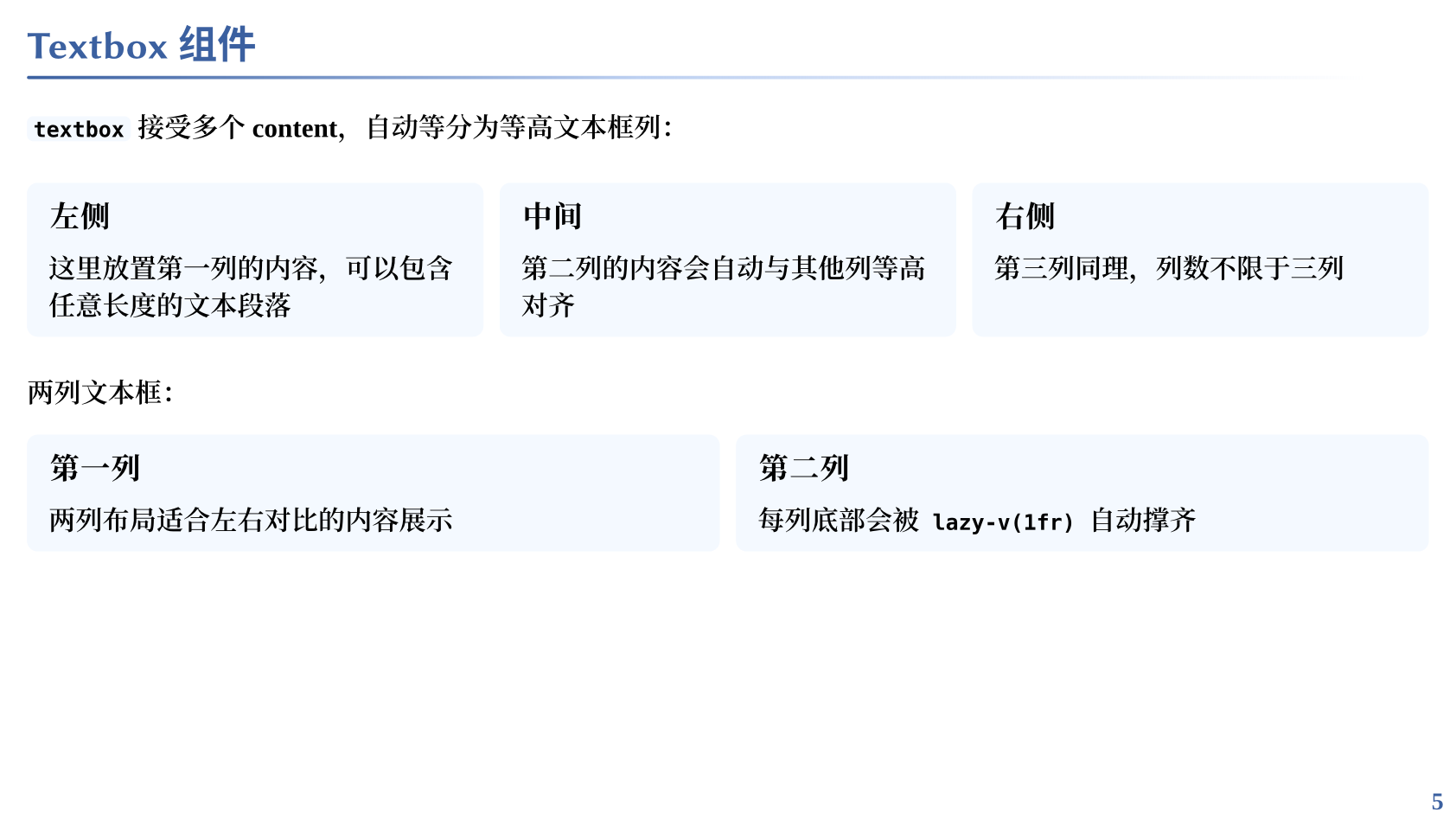

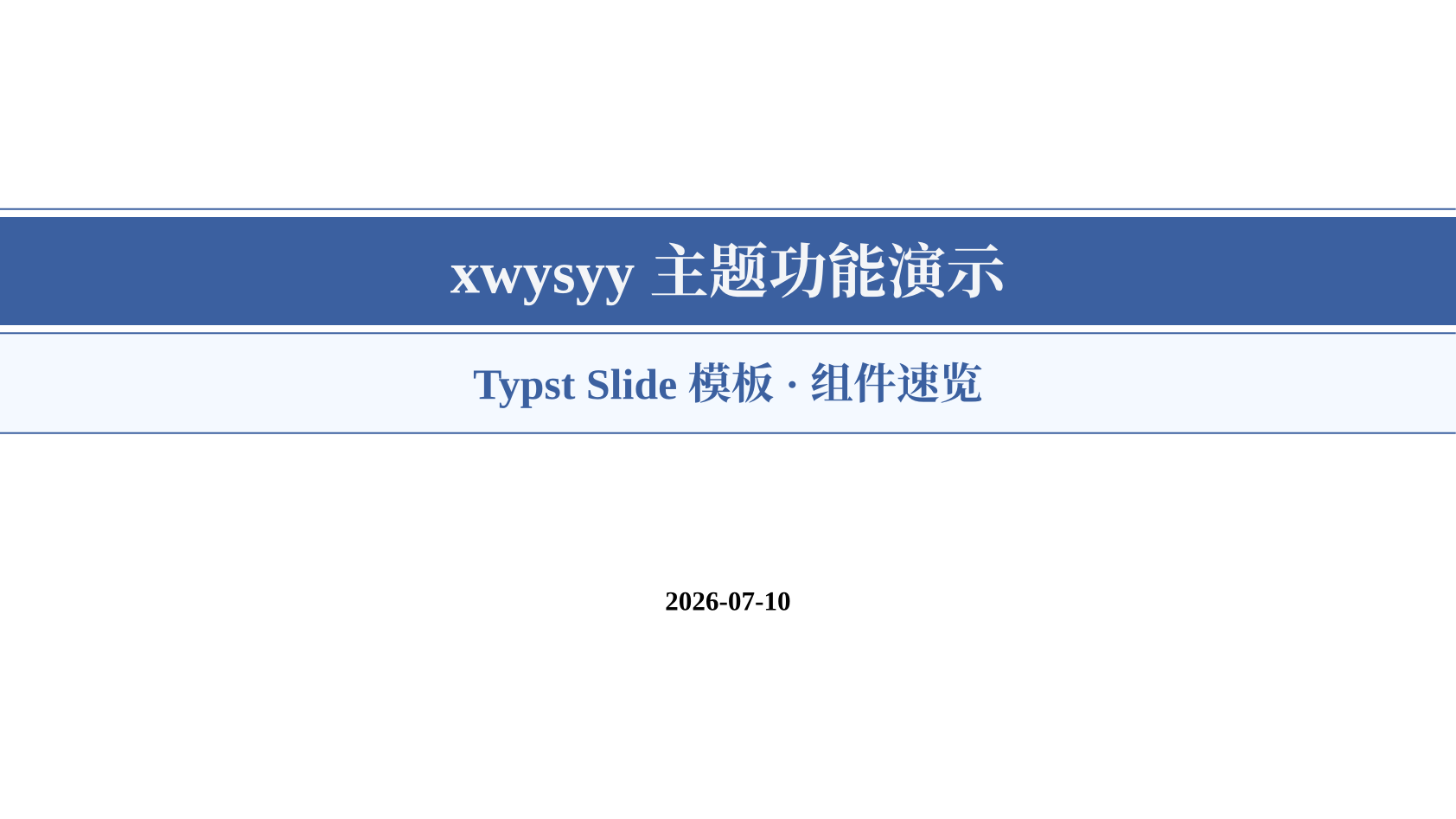

+| Sky cover | Sky components |
+|:---:|:---:|
+|  |  |
+
+| Sunset cover | Sunset components |
+|:---:|:---:|
+|  |  |
+
+## Quick Start
+
+Create a new project from the Universe template:
+
+```bash
+typst init @preview/xwysyy:0.5.0 my-talk
+cd my-talk
+typst compile main.typ
+```
+
+Use the package in an existing Typst project:
+
+```typst
+#import "@preview/xwysyy:0.5.0": *
+
+#show: xwysyy-pre.with(
+ theme: "sunset",
+ config-info(
+ title: [My Presentation Title],
+ subtitle: [Subtitle],
+ author: " ",
+ date: datetime.today(),
+ institution: " ",
+ ),
+)
+
+#title-slide()
+#outline-slide()
+
+= Section Title
+
+== Slide Title
+
+Body text with *bold* and #red[red highlight].
+
+#textbox(
+ [*Module A*
+
+ First column],
+
+ [*Module B*
+
+ Second column],
+)
+
+#end-slide(title: [Thank You!], body: [Questions?])
+```
+
+## Themes
+
+Select a built-in theme by name:
+
+```typst
+#show: xwysyy-pre.with(
+ theme: "forest",
+ config-info(title: [My Presentation]),
+)
+```
+
+Pass a custom dictionary directly:
+
+```typst
+#let my-theme = (
+ sea: rgb("#1f5d45"),
+ sky: rgb("#a8d5ba"),
+ skyll: rgb("#f5fbf7"),
+ paper: rgb("#f7faf8"),
+ page-fill: white,
+)
+
+#show: xwysyy-pre.with(
+ theme: my-theme,
+ config-info(title: [My Presentation]),
+)
+```
+
+All five fields are required:
+
+| Field | Purpose |
+|-------|---------|
+| `sea` | Primary dark color for the header title, links, table heads, and badges |
+| `sky` | Accent color, also the fade-out end of the header rule |
+| `skyll` | Code block, table row, and textbox fill |
+| `paper` | Text on dark backgrounds |
+| `page-fill` | Slide page background |
+
+## Component Reference
+
+| Category | API | Usage |
+|----------|-----|-------|
+| Slide entry | `xwysyy-pre` | `#show: xwysyy-pre.with(theme: "sky", ...)` |
+| Title slide | `title-slide` | `#title-slide()` |
+| Outline | `outline-slide` | `#outline-slide()` auto-collects section headings |
+| Content slide | `xwysyy-slide` | `== Title` auto-triggers |
+| Section transition | `new-section-slide` | `= Title` auto-triggers |
+| Full-screen image | `image-slide` | `#image-slide(img: image("bg.png"))` |
+| End slide | `end-slide` | `#end-slide(title: [...])` |
+| Layout · pair | `duo-slide` | figure over text, measured spacing + telemetry |
+| Layout · single | `focus-slide` | one centered block for sparse pages |
+| Layout · columns | `grid-slide` | N equal-height peer columns |
+| Layout · stack | `stack-slide` | N vertical blocks, the visual grows dominant or cards grow tall |
+| Layout · compare | `compare-slide` | two top-aligned blocks read as a contrast |
+| Layout · stats | `stat-slide` | a row of big-number metric tiles |
+| Layout · figure | `figure-slide` | figure, tight caption, optional takeaway |
+| Layout · sidebar | `sidebar-slide` | a label tab beside a content card |
+| Text box | `textbox` | `#textbox[Content]` or `#textbox([Col 1], [Col 2])` |
+| Highlight | `red` / `bred` | `#red[text]` / `#bred[bold red]` |
+| Highlight | `yellow` / `byellow` | `#yellow[text]` / `#byellow[bold yellow]` |
+
+The layout components (`duo-slide`, `focus-slide`, `grid-slide`, `stack-slide`, `compare-slide`, `stat-slide`, `figure-slide`, `sidebar-slide`) take typed content items (`visual` / `card` / `takeaway` / `plain`, with `metric` entries for `stat-slide`; `sidebar-slide` takes plain content) with declared sizing, measure every block, distribute space fill-first, and export `` v4 telemetry (allocated frame, natural preferred size, 2-D payload bbox with a measured/declared source, and paint box + fill per object). For stepwise reveal use the `reveal: true` parameter of the multi-block components (all but `focus-slide` and `sidebar-slide`) instead of `#pause`, which cannot appear inside the components (touying panics). See the [layout guide](https://github.com/xwysyy/xwysyy-typst/blob/v0.5.0/docs/LAYOUT.md).
+
+## Handouts And Speaker Notes
+
+Pass touying's handout setting through `xwysyy-pre`. A command-line switch can be wired as follows:
+
+```typst
+#let handout = sys.inputs.at("handout", default: "false") == "true"
+
+#show: xwysyy-pre.with(
+ config-common(handout: handout),
+ config-info(title: [My Presentation]),
+)
+```
+
+```bash
+typst compile main.typ slides.pdf
+typst compile --input handout=true main.typ slides-handout.pdf
+```
+
+Speaker notes are available because `xwysyy.typ` re-exports touying:
+
+```typst
+#speaker-note[
+ Mention the ablation table before moving to the next section.
+]
+```
+
+Export pdfpc metadata:
+
+```bash
+typst eval --in main.typ --format json 'query().first().value' > slides.pdfpc
+```
+
+## Requirements
+
+- Typst >= 0.15.0
+- touying 0.8.0, downloaded on first compile
+- physica 0.9.8, downloaded on first compile
+- Default local fonts: Times New Roman, Noto Serif CJK SC, Libertinus Sans, Noto Sans CJK SC, Maple Mono, and Noto Sans Mono CJK SC
+- Typst web app users can pass web-available fonts with `font:`, `heading-font:`, and `code-font:`
+
+Full API reference: [docs/USAGE.md](https://github.com/xwysyy/xwysyy-typst/blob/v0.5.0/docs/USAGE.md). Customization guide: [docs/CUSTOMIZATION.md](https://github.com/xwysyy/xwysyy-typst/blob/v0.5.0/docs/CUSTOMIZATION.md). Theme generator: [docs/THEME-GENERATOR.md](https://github.com/xwysyy/xwysyy-typst/blob/v0.5.0/docs/THEME-GENERATOR.md).
+
+## Acknowledgements
+
+- Theme derived from [Carlos-Mero/may](https://github.com/Carlos-Mero/may) under MIT
+- Built on [touying](https://github.com/touying-typ/touying)
+
+## License
+
+[MIT](./LICENSE)
diff --git a/packages/preview/xwysyy/0.5.0/src/elements.typ b/packages/preview/xwysyy/0.5.0/src/elements.typ
new file mode 100644
index 0000000000..a7e8d5ea7f
--- /dev/null
+++ b/packages/preview/xwysyy/0.5.0/src/elements.typ
@@ -0,0 +1,139 @@
+// Shared show-chain (xwysyy-elements) and reusable components (info, textbox).
+
+#import "@preview/touying:0.8.0": components
+#import "themes.typ": *
+
+#let xwysyy-elements(
+ doc,
+ code-font: ("Maple Mono", "Noto Sans Mono CJK SC"),
+ t-sea: sea,
+ t-sky: sky,
+ t-skyll: skyll,
+ t-paper: paper,
+) = [
+ // Bold enhancement (recipe in themes.typ `_bold-run`)
+ #show strong: it => _bold-run(it.body)
+
+ // List style
+ #set list(marker: (text(fill: t-sea, [❖]), text(fill: t-sky, [⬦]), text(fill: t-sky, [–])), spacing: 1.2em, indent: 0.5em, body-indent: 0.8em)
+ #set enum(spacing: 1.2em, indent: 0.5em)
+
+ // Italic — per-character synthetic skew for CJK
+ #show emph: it => {
+ if type(it.body) == content and it.body.has("text") {
+ for c in it.body.text {
+ box(skew(ax: -8deg, c))
+ }
+ } else {
+ box(skew(ax: -8deg, it.body))
+ }
+ }
+
+ // No image shadow: wrapping images in a box sized by measure() collapses
+ // percentage-width images to zero size.
+
+ // Figure captions — smaller
+ #show figure.caption: it => {
+ set text(size: 0.78em, fill: luma(100))
+ v(0.3em)
+ it
+ }
+
+ // Table captions on top
+ #show figure.where(kind: table): set figure.caption(position: top)
+
+ // Codeblocks
+ #show raw.where(block: true): it => {
+ set text(font: code-font, size: 0.9em)
+ block(
+ width: 100%,
+ height: auto,
+ fill: t-skyll,
+ inset: 0.6em,
+ radius: 0.5em,
+ it
+ )
+ }
+ // Inline code — the chip fill is painted with `outset` so it does not join
+ // baseline/line-height layout (the old inset+baseline recipe sank the code
+ // text ~0.1em below the surrounding baseline).
+ #show raw.where(block: false): it => {
+ set text(font: code-font)
+ box(
+ fill: t-skyll,
+ inset: (x: 0.3em),
+ outset: (y: 0.2em),
+ radius: 0.3em,
+ it
+ )
+ }
+
+ // Links
+ #show link: underline
+ #show link: it => {
+ set text(fill: t-sea)
+ it
+ }
+
+ // Detail Decoration — longer patterns first to avoid partial matches.
+ // Each rule is guarded so it never rewrites code content: string show rules
+ // also match text inside raw, which used to turn `<=` in code into ⇐.
+ // NB: `text.font` reports lowercased family names — compare case-insensitively.
+ #let code-head = lower(if type(code-font) == array { code-font.first() } else { code-font })
+ #let non-code(arrow) = it => context {
+ let f = text.font
+ let head = if type(f) == array and f.len() > 0 { f.first() } else { f }
+ if lower(head) == code-head { it } else { arrow }
+ }
+ #show "<==>": non-code([$arrow.l.r.double.long$])
+ #show "<=>": non-code([$<=>$])
+ #show "-->": non-code([$-->$])
+ #show "<--": non-code([$<--$])
+ #show "==>": non-code([$==>$])
+ #show "<==": non-code([$arrow.l.double.long$])
+ #show "->": non-code([$->$])
+ #show "<-": non-code([$<-$])
+ #show "=>": non-code([$=>$])
+ #show "<=": non-code([$arrow.l.double$])
+ #show "|->": non-code([$|->$])
+
+ // Tables — seamless filled header + zebra body (no gutter: cell gaps used to
+ // slice the fills into fragments), theme-toned thin hlines
+ #set table(
+ stroke: none,
+ inset: (x: 0.6em, y: 0.42em),
+ align: center,
+ fill: (x, y) => if y == 0 { t-sea } else if calc.even(y) { t-skyll } else { none },
+ )
+ #set table.hline(stroke: 0.5pt + t-sea.lighten(30%))
+ #show table.cell: it => {
+ if it.y == 0 {
+ set text(t-paper, weight: "bold")
+ it
+ } else {it}
+ }
+
+ #doc
+]
+
+// information item
+#let info(something, description) = [
+ *#something* #h(1fr) *#description*\
+]
+
+#let textbox(inset: 0.8em, radius: 0.4em, width: 100%, gutter: 0.6em, ..bodies) = context {
+ let t = _theme-state.get()
+ let bodies = bodies.pos()
+ if bodies.len() == 1 {
+ block(width: width, fill: t.skyll, inset: inset, radius: radius, bodies.first())
+ } else {
+ components.lazy-layout(grid(
+ columns: (1fr,) * bodies.len(),
+ gutter: gutter,
+ ..bodies.map(b => block(width: 100%, fill: t.skyll, inset: inset, radius: radius, {
+ b
+ components.lazy-v(1fr)
+ })),
+ ))
+ }
+}
diff --git a/packages/preview/xwysyy/0.5.0/src/layout.typ b/packages/preview/xwysyy/0.5.0/src/layout.typ
new file mode 100644
index 0000000000..25c323351c
--- /dev/null
+++ b/packages/preview/xwysyy/0.5.0/src/layout.typ
@@ -0,0 +1,1366 @@
+// Semantic layout layer for xwysyy-typst — telemetry schema v4.
+//
+// Authors (human or AI) pick a semantic component and provide typed content
+// items; each component measures the real rendered size of every block, runs
+// a shared allocator, and exports the *measured* normalized geometry as
+// `` v4 metadata for scripts/slide-check.py.
+//
+// Honesty rules baked into the schema:
+// * sizing is DECLARED, never inferred: percent-sized content must be
+// wrapped in `visual(...)` (fit: "stretch"); required slots panic on
+// `none`; text slots panic on content with no measurable width or height
+// (spacers, empty strings, bare rules) instead of masquerading as a
+// payload;
+// * every object carries `frame` (allocated), `preferred` (what the
+// allocator saw), `payload` (a 2-D flow bbox of the inner content —
+// approximate for wrapped text, exact for fixed-size content) and
+// `paint` (the visible card box + its fill colour, or none);
+// * `payload_source` separates "measured" payloads from "declared" ones
+// (stretch slots and percent-width media): a declared payload is a
+// claim, not evidence — the checker verifies it against rendered pixels
+// instead of trusting it;
+// * unbreakable content wider than its slot is exported as `overflow_x`
+// (wrapped text is clamped honestly; a long URL that cannot wrap is not);
+// * the allocator has four states — normal / compressed (gaps squeezed
+// below their preferred size) / tight (outer margins consumed) /
+// overflow — with the invariants overflow => body_overflow_ratio > 0 and
+// compressed => gap_ratio < 1;
+// * one `` mapping is emitted per physically rendered
+// subslide, carrying the physical body geometry in pt, and the slide id
+// is stable across subslides (touying's logical slide counter), so every
+// frame joins its layout record and coverage counts real pages.
+//
+// Authors never write raw `v()` spacing or absolute coordinates; they adjust
+// `mode` and read the numeric feedback the checker returns after each
+// compile. Numeric layout knobs live in the `tuning` dictionary (validated
+// for key, type, and range); the AI generation contract treats `tuning` as
+// off-limits and the telemetry records whether it was used.
+//
+// Stepwise reveal: touying's `#pause` cannot be used inside these components
+// (marks do not survive `context` / `layout` closures; touying panics).
+// Components take `reveal: true` (or per-item `reveal-from`) instead, which
+// shows blocks one subslide at a time via the callback-style `utils.uncover`
+// — hidden steps keep their measured space, so the layout is identical on
+// every subslide. One resolver (`_steps`) serves every component and an
+// explicit `reveal-from` always wins over the `reveal: true` sugar;
+// components without reveal steps have a single frame and reject any
+// `reveal-from` beyond step 1 instead of silently ignoring it.
+
+#import "@preview/touying:0.8.0": utils
+#import "slides.typ": xwysyy-slide
+#import "themes.typ": _theme-state
+
+// Capture `top` / `left` before the parameters of the same name (duo's `top`,
+// compare's `left`) shadow them inside a component body.
+#let _atop = top
+#let _aleft = left
+
+#let _clamp(x, lo, hi) = calc.min(calc.max(x, lo), hi)
+
+// Optical center sits slightly above the geometric center so a centered group
+// does not read as sinking. Only focus-slide centers a group; every other
+// component fills the body instead.
+#let _OPTICAL-CENTER = 0.46
+
+// Fill-first distribution. Outer margins are pinned small; leftover space
+// grows the content (figures become dominant, cards become tall) instead of
+// becoming blank margin.
+#let _MARGIN-TOP = 0.07
+#let _MARGIN-BOT = 0.09
+#let _FILL = 1.0 - _MARGIN-TOP - _MARGIN-BOT
+// A card row occupies at least this fraction of the body height, so a row of
+// short cards reads as substantial cards rather than tiles floating in space.
+#let _CARD-FILL-MIN = 0.60
+// Hard minimum for a stretch visual: below this the visual is starved and the
+// slide must degrade to tight/overflow instead of reporting normal.
+#let _VISUAL-MIN = 0.28
+// Semantic gaps compress down to this fraction of their preferred size before
+// the slide starts consuming its outer margins.
+#let _GAP-MIN = 0.4
+// Card inner padding.
+#let _CARD-PAD = 0.9em
+// stat-slide shrinks a long value to fit its tile, but never below this scale
+// (below it the value wraps and the tile grows, reported honestly by fit).
+#let _STAT-SCALE-MIN = 0.6
+// Measurement epsilon: below this a dimension counts as zero.
+#let _EPS-L = 0.01pt
+
+#let _MODES = ("compact", "balanced", "separated")
+#let _check-mode(mode) = {
+ if mode not in _MODES {
+ panic("unknown mode " + repr(mode) + "; use \"compact\" | \"balanced\" | \"separated\"")
+ }
+}
+
+// Gap between semantically-related blocks, as a fraction of body height. The
+// three values land inside the checker's proximity ranges so a correctly
+// generated slide passes without diagnostics.
+#let _mode-gap(mode) = {
+ if mode == "compact" { 0.06 } else if mode == "separated" { 0.22 } else { 0.13 }
+}
+#let _mode-proximity(mode) = {
+ if mode == "compact" { "compact" } else if mode == "separated" { "loose" } else { "medium" }
+}
+
+// Numeric layout knobs, validated for key, type, and range so a typo or a
+// nonsense value fails loudly instead of being silently ignored.
+// `spec` maps key -> (default:, lo:, hi:).
+#let _tuning(comp, given, spec) = {
+ for (k, v) in given {
+ if k not in spec {
+ panic(comp + ": unknown tuning key " + repr(k) + "; allowed: " + repr(spec.keys()))
+ }
+ if type(v) != float and type(v) != int {
+ panic(comp + ": tuning " + repr(k) + " must be a number, got " + repr(v))
+ }
+ let s = spec.at(k)
+ if v < s.lo or v > s.hi {
+ panic(comp + ": tuning " + repr(k) + " = " + repr(v) + " outside [" + repr(s.lo) + ", " + repr(s.hi) + "]")
+ }
+ }
+ let out = (:)
+ for (k, s) in spec { out.insert(k, float(given.at(k, default: s.default))) }
+ out
+}
+
+#let _require(comp, slot, v) = {
+ if v == none { panic(comp + ": " + slot + " is required") }
+}
+
+// Reveal gating. The block becomes visible from subslide `step` (1-based);
+// hidden steps keep their measured space. Uses the callback-style
+// `utils.uncover` because mark-based `#pause` / global `#uncover` panic inside
+// `context` / `layout`.
+#let _from(self, step, body) = {
+ if step <= 1 { body } else { utils.uncover(self: self, str(step) + "-", body) }
+}
+
+// ---------------------------------------------------------------------------
+// typed items (declared sizing; sidebar slots take plain content instead)
+// ---------------------------------------------------------------------------
+//
+// `visual(...)` marks the slide's visual payload: never carded, and with
+// fit: "stretch" (the default) it absorbs free space and its content is told
+// to fill the allocated frame (use `rect(height: 100%)`, or
+// `image(width: 100%, height: 100%, fit: "contain")` for real images).
+// fit: "natural" keeps the visual at its measured size (`image(width: 100%)`).
+// `card(...)` / `takeaway(...)` draw the theme card behind their content.
+// `plain(...)` is an uncarded text block. Plain (untyped) content passed to
+// a slot is coerced per component (documented at each component).
+//
+// Roles form a closed set: they weight the checker's optical-centre estimate
+// and must not be able to change its control flow, so there is no
+// "decorative" escape hatch.
+
+#let _ROLES = (
+ "main_visual", "figure", "image", "chart", "visual", "table", "formula",
+ "callout", "takeaway", "option", "column", "explanation", "label",
+ "metric", "text", "content", "caption",
+)
+#let _check-role(ctor, role) = {
+ if role not in _ROLES {
+ panic(ctor + ": role " + repr(role) + " is not in the closed role set " + repr(_ROLES))
+ }
+}
+
+#let visual(body, fit: "stretch", role: "main_visual", reveal-from: auto) = {
+ if fit not in ("stretch", "natural") {
+ panic("visual: fit must be \"stretch\" or \"natural\", got " + repr(fit))
+ }
+ _check-role("visual", role)
+ (xwysyy-item: true, kind: "visual", fit: fit, role: role, body: body, reveal-from: reveal-from)
+}
+#let card(body, role: "explanation", reveal-from: auto) = {
+ _check-role("card", role)
+ (xwysyy-item: true, kind: "card", fit: "natural", role: role, body: body, reveal-from: reveal-from)
+}
+#let takeaway(body, reveal-from: auto) = (
+ xwysyy-item: true, kind: "takeaway", fit: "natural", role: "takeaway", body: body, reveal-from: reveal-from,
+)
+#let plain(body, role: "text", reveal-from: auto) = {
+ _check-role("plain", role)
+ (xwysyy-item: true, kind: "plain", fit: "natural", role: role, body: body, reveal-from: reveal-from)
+}
+
+#let _as-item(x, default-kind) = {
+ if type(x) == dictionary and x.at("xwysyy-item", default: false) { x }
+ else if default-kind == "visual" {
+ (xwysyy-item: true, kind: "visual", fit: "natural", role: "main_visual", body: x, reveal-from: auto)
+ } else if default-kind == "takeaway" {
+ (xwysyy-item: true, kind: "takeaway", fit: "natural", role: "takeaway", body: x, reveal-from: auto)
+ } else {
+ (xwysyy-item: true, kind: "card", fit: "natural", role: "explanation", body: x, reveal-from: auto)
+ }
+}
+
+#let _painted(it) = it.kind in ("card", "takeaway")
+#let _stretchy(it) = it.kind == "visual" and it.fit == "stretch"
+
+#let _KINDS = ("visual", "card", "takeaway", "plain")
+
+// Central item validation, run up front in every component. The constructor
+// marker is not trusted: a hand-built dictionary with an unknown kind, fit, or
+// role fails here instead of silently taking some other code path.
+// `stretch: false` marks slots sized by their natural height; `reveal: false`
+// marks components without reveal steps, which accept `reveal-from: 1` (their
+// single frame) and reject any later step instead of ignoring it.
+#let _validate-item(comp, slot, it, stretch: true, reveal: true) = {
+ if it.at("kind", default: none) not in _KINDS {
+ panic(comp + ": " + slot + " item kind must be one of " + repr(_KINDS)
+ + ", got " + repr(it.at("kind", default: none)))
+ }
+ if it.at("fit", default: none) not in ("stretch", "natural") {
+ panic(comp + ": " + slot + " fit must be \"stretch\" or \"natural\", got "
+ + repr(it.at("fit", default: none)))
+ }
+ if it.at("role", default: none) not in _ROLES {
+ panic(comp + ": " + slot + " role " + repr(it.at("role", default: none))
+ + " is not in the closed role set " + repr(_ROLES))
+ }
+ if it.at("body", default: none) == none {
+ panic(comp + ": " + slot + " body is required")
+ }
+ if not stretch and _stretchy(it) {
+ panic(comp + ": " + slot + " cannot be visual(fit: \"stretch\") — this slot is "
+ + "sized by its natural height; use fit: \"natural\"")
+ }
+ let rf = it.at("reveal-from", default: auto)
+ if not reveal and rf != auto and rf != 1 {
+ panic(comp + ": " + slot + " has no reveal steps; remove reveal-from")
+ }
+ it
+}
+
+// Relation kinds an author may declare between blocks. Structural kinds
+// (peer / caption / labels) are emitted by the components themselves.
+#let _AUTHOR-RELS = ("supports", "contrast")
+#let _check-relation(comp, rel) = {
+ if rel not in _AUTHOR-RELS {
+ panic(comp + ": relation must be one of " + repr(_AUTHOR-RELS) + ", got " + repr(rel))
+ }
+}
+
+// Resolve per-item reveal steps — the single resolver for every component.
+// `reveal: true` reveals auto items in order (item i on subslide
+// min(i+1, max-step)); an explicit `reveal-from` must be an integer in
+// [1, max-step] and ALWAYS wins over the sugar.
+#let _steps(comp, items, reveal, max-step) = {
+ items.enumerate().map(((i, it)) => {
+ let rf = it.at("reveal-from", default: auto)
+ if rf == auto {
+ if reveal { calc.min(i + 1, max-step) } else { 1 }
+ } else {
+ if type(rf) != int {
+ panic(comp + ": reveal-from must be an integer >= 1, got " + repr(rf))
+ }
+ if rf < 1 or rf > max-step {
+ panic(comp + ": reveal-from = " + str(rf) + " outside [1, " + str(max-step) + "]")
+ }
+ rf
+ }
+ })
+}
+
+// ---------------------------------------------------------------------------
+// allocator
+// ---------------------------------------------------------------------------
+//
+// Column: every item is a spec (min:, pref:, max:, grow:) in absolute
+// lengths (max: none = unbounded); every gap is (min:, pref:). Resolution
+// order and states:
+// normal — everything at preferred fits the safe area; free space goes
+// to grow-weighted items (water-filling against max); residual
+// free space centers the group inside the safe area
+// compressed — fits the safe area only with gaps squeezed below preferred
+// (but not below their min); gap_ratio in [_GAP-MIN, 1)
+// tight — fits the page only by consuming the outer margins; gaps at
+// min, group centered on the page; margin_deficit_ratio > 0
+// overflow — taller than the page even at minimums;
+// body_overflow_ratio > 0 (hard invariant)
+// `gap_ratio` is the REAL ratio of the summed actual gaps to the summed
+// preferred gaps (1.0 when the layout has no gaps), not an interpolation
+// parameter.
+#let _alloc-column(specs, gaps, H) = {
+ let budget = H * _FILL
+ let prefs = specs.map(s => calc.max(s.pref, s.min))
+ let body = prefs.fold(0pt, (a, h) => a + h)
+ let gap-pref = gaps.fold(0pt, (a, g) => a + g.pref)
+ let gap-min = gaps.fold(0pt, (a, g) => a + g.min)
+ let base = body + gap-pref
+ let min-ratio = if gap-pref > 0pt { gap-min / gap-pref } else { 1.0 }
+ if base <= budget {
+ let heights = prefs
+ let free = budget - base
+ let frozen = specs.map(s => s.grow <= 0)
+ while free > 0.05pt {
+ let gsum = 0.0
+ for (i, s) in specs.enumerate() {
+ if not frozen.at(i) { gsum += s.grow }
+ }
+ if gsum == 0 { break }
+ let spent = 0pt
+ for (i, s) in specs.enumerate() {
+ if frozen.at(i) { continue }
+ let add = free * (s.grow / gsum)
+ if s.max != none and heights.at(i) + add >= s.max {
+ add = calc.max(s.max - heights.at(i), 0pt)
+ frozen.at(i) = true
+ }
+ heights.at(i) += add
+ spent += add
+ }
+ free -= spent
+ if spent <= 0.05pt { break }
+ }
+ let used = heights.fold(0pt, (a, h) => a + h) + gap-pref
+ (heights: heights, gaps: gaps.map(g => g.pref),
+ y0: H * _MARGIN-TOP + calc.max(budget - used, 0pt) / 2,
+ fit: (state: "normal", required_height_ratio: base / H, gap_ratio: 1.0,
+ margin_deficit_ratio: 0.0, body_overflow_ratio: 0.0))
+ } else if body + gap-min <= budget {
+ let span = gap-pref - gap-min
+ let t = if span > 0pt { (budget - body - gap-min) / span } else { 1.0 }
+ let actual = gaps.map(g => g.min + (g.pref - g.min) * t)
+ let actual-sum = actual.fold(0pt, (a, g) => a + g)
+ (heights: prefs, gaps: actual,
+ y0: H * _MARGIN-TOP,
+ fit: (state: "compressed", required_height_ratio: base / H,
+ gap_ratio: if gap-pref > 0pt { actual-sum / gap-pref } else { 1.0 },
+ margin_deficit_ratio: 0.0, body_overflow_ratio: 0.0))
+ } else if body + gap-min <= H {
+ let total = body + gap-min
+ (heights: prefs, gaps: gaps.map(g => g.min), y0: (H - total) / 2,
+ fit: (state: "tight", required_height_ratio: base / H, gap_ratio: min-ratio,
+ margin_deficit_ratio: (total - budget) / H, body_overflow_ratio: 0.0))
+ } else {
+ let total = body + gap-min
+ (heights: prefs, gaps: gaps.map(g => g.min), y0: 0pt,
+ fit: (state: "overflow", required_height_ratio: base / H, gap_ratio: min-ratio,
+ margin_deficit_ratio: (H - budget) / H, body_overflow_ratio: (total - H) / H))
+ }
+}
+
+// Row variant: one shared height for side-by-side cards. No gaps to
+// compress, so the states are normal / tight / overflow and gap_ratio is 1.
+#let _fit-row(naturals, H) = {
+ let natural = naturals.fold(0pt, (a, h) => calc.max(a, h))
+ let budget = H * _FILL
+ if natural <= budget {
+ let row = _clamp(natural, _CARD-FILL-MIN * H, budget)
+ (row: row, y: H * _MARGIN-TOP + (budget - row) / 2,
+ fit: (state: "normal", required_height_ratio: natural / H, gap_ratio: 1.0,
+ margin_deficit_ratio: 0.0, body_overflow_ratio: 0.0))
+ } else if natural <= H {
+ (row: natural, y: (H - natural) / 2,
+ fit: (state: "tight", required_height_ratio: natural / H, gap_ratio: 1.0,
+ margin_deficit_ratio: (natural - budget) / H, body_overflow_ratio: 0.0))
+ } else {
+ (row: natural, y: 0pt,
+ fit: (state: "overflow", required_height_ratio: natural / H, gap_ratio: 1.0,
+ margin_deficit_ratio: (H - budget) / H, body_overflow_ratio: (natural - H) / H))
+ }
+}
+
+// ---------------------------------------------------------------------------
+// measurement
+// ---------------------------------------------------------------------------
+
+// Content signatures (verified against typst 0.15 `measure`):
+// * `v(...)` and an empty string have zero unconstrained WIDTH;
+// * a bare horizontal rule has zero constrained HEIGHT;
+// * percent-width media (`image(width: 100%)`) measures exactly like a
+// spacer — zero unconstrained width — so only visual() slots may fall
+// back to the slot width, and that payload is marked "declared";
+// * `hide(...)` keeps its full layout size and can only be caught by the
+// pixel cross-check.
+// Text slots (card / takeaway / plain / metric fields) therefore require a
+// positive unconstrained width AND a positive constrained height; visuals
+// only panic when every dimension is zero (genuinely empty content).
+#let _assert-measurable(comp, slot, kind, body, w) = {
+ let mu = measure(body)
+ let mc = measure(block(width: w, body))
+ if kind == "visual" {
+ if mu.width < _EPS-L and mu.height < _EPS-L and mc.height < _EPS-L {
+ panic(comp + ": " + slot + " renders empty — pass real content; percent-sized "
+ + "content must be declared visual() (fit: \"stretch\")")
+ }
+ } else {
+ if mu.width < _EPS-L {
+ panic(comp + ": " + slot + " has no measurable width — spacers and empty "
+ + "strings are not content, and percent-width media belongs in visual()")
+ }
+ if mc.height < _EPS-L {
+ panic(comp + ": " + slot + " has no measurable height — a bare rule is "
+ + "decoration, not content")
+ }
+ }
+ (mu: mu, mc: mc)
+}
+
+// Horizontal-overflow evidence. Unbreakable content wider than its slot
+// cannot wrap: the constrained height (`mc`) stays at the unconstrained
+// height (`mu`) while the natural width exceeds the slot width `w`. Wrapped
+// text is clamped honestly instead.
+#let _overflows-x(mu, mc, w) = mu.width > w + _EPS-L and mc.height <= mu.height + _EPS-L
+
+// Measure a natural item for a slot of width `w`. Returns the outer size the
+// allocator uses (including card padding), the 2-D payload flow bbox, the
+// payload source, and horizontal-overflow evidence.
+#let _measure-item(comp, slot, it, w) = {
+ let pad = if _painted(it) { _CARD-PAD.to-absolute() } else { 0pt }
+ let iw = w - 2 * pad
+ let m = _assert-measurable(comp, slot, it.kind, it.body, iw)
+ // Only reachable for visual items: percent-width media measures at zero
+ // width, claims the slot width, and is marked "declared" so the checker
+ // demands pixel evidence instead of counting it as measured payload.
+ let fallback = m.mu.width < _EPS-L
+ (
+ outer: m.mc.height + 2 * pad,
+ pay-w: if fallback { iw } else { calc.min(m.mu.width, iw) },
+ pay-h: m.mc.height,
+ pad: pad,
+ src: if fallback { "declared" } else { "measured" },
+ over-x: _overflows-x(m.mu, m.mc, iw),
+ )
+}
+
+// Build the allocator spec and telemetry seed for one column/slot item.
+// Stretch visuals get the hard minimum and a grow weight; natural items are
+// pinned at their measured size (max = pref) unless the component grants
+// cards a grow weight.
+#let _item-slot(comp, slot, it, w, H) = {
+ if _stretchy(it) {
+ (stretch: true, painted: false, pad: 0pt,
+ spec: (min: H * _VISUAL-MIN, pref: H * _VISUAL-MIN, max: none, grow: 1.0),
+ pay-w: none, pay-h: none, src: "declared", over-x: false)
+ } else {
+ let m = _measure-item(comp, slot, it, w)
+ (stretch: false, painted: _painted(it), pad: m.pad,
+ spec: (min: m.outer, pref: m.outer, max: m.outer, grow: 0.0),
+ pay-w: m.pay-w, pay-h: m.pay-h, src: m.src, over-x: m.over-x)
+ }
+}
+
+// ---------------------------------------------------------------------------
+// telemetry primitives (schema v4)
+// ---------------------------------------------------------------------------
+
+// One telemetry object.
+// frame — the box the component allocated (normalized to the body)
+// preferred — the natural outer size the allocator saw
+// payload — 2-D flow bbox of the inner content (inside card
+// padding); approximate for wrapped text (flow bbox, not
+// glyph ink); equals the padded frame for declared-stretch
+// content
+// paint — the visible card box, or none for unpainted objects
+// paint_fill — hex colour of the card fill (pixel-check evidence)
+// payload_source — "measured" | "declared"; declared payloads are claims
+// the checker verifies against pixels, never evidence
+// overflow_x — unbreakable content wider than the slot (see
+// _measure-item)
+// Payload height is NOT clamped to the frame: overflowing content reports a
+// payload that runs past its frame, and the checker sees it.
+#let _obj(
+ id, kind, role,
+ fx, fy, fw, fh,
+ pref-h: none,
+ pay-w: none, pay-h: none,
+ pay-src: "measured", over-x: false,
+ pad-x: 0.0, pad-y: 0.0,
+ calign: "center", halign: "center",
+ painted: false, paint-fill: none, visible-from: 1,
+) = {
+ let ix = fx + pad-x
+ let iy = fy + pad-y
+ let iw = calc.max(fw - 2 * pad-x, 0.0)
+ let ih = calc.max(fh - 2 * pad-y, 0.0)
+ let sx = if pay-w == none { "stretch" } else { "natural" }
+ let sy = if pay-h == none { "stretch" } else { "natural" }
+ let pw = if pay-w == none { iw } else { calc.min(pay-w, iw) }
+ let ph = if pay-h == none { ih } else { pay-h }
+ let px = if sx == "stretch" or halign == "left" { ix } else { ix + (iw - pw) / 2 }
+ let py = if sy == "stretch" or calign == "top" { iy } else { iy + (ih - ph) / 2 }
+ (
+ id: id,
+ object_kind: kind,
+ semantic_role: role,
+ frame: (x: fx, y: fy, w: fw, h: fh),
+ preferred: (w: fw, h: if pref-h == none { fh } else { pref-h }),
+ payload: (x: px, y: py, w: pw, h: ph),
+ paint: if painted { (x: fx, y: fy, w: fw, h: fh) } else { none },
+ paint_fill: if painted { paint-fill } else { none },
+ payload_source: if pay-w == none or pay-h == none { "declared" } else { pay-src },
+ overflow_x: over-x,
+ sizing: (x: sx, y: sy),
+ visible_from: visible-from,
+ )
+}
+
+#let _rel(from, to, kind, axis, proximity) = (
+ from: from,
+ to: to,
+ kind: kind,
+ axis: axis,
+ desired_proximity: proximity,
+)
+
+// One frame mapping per physically rendered subslide, carrying the physical
+// body geometry (pt) so the pixel checker maps normalized telemetry onto the
+// render without hard-coded page constants. In handout mode only the
+// surviving subslide emits, so coverage counts real pages.
+#let _frame-mark(sid, self, size) = {
+ let pos = here().position()
+ [#metadata((
+ schema: "xwysyy-frame/v2",
+ id: sid,
+ step: self.subslide,
+ steps: self.repeat,
+ page: pos.page,
+ handout: self.handout,
+ body: (x: pos.x.pt(), y: pos.y.pt(), w: size.width.pt(), h: size.height.pt()),
+ page_size: (w: page.width.pt(), h: page.height.pt()),
+ )) ]
+}
+
+// Emit one slide's telemetry. Must be produced in markup so the label binds
+// (a label on `metadata(...)` in code mode is a Typst syntax error).
+#let _emit(id, archetype, engine, page, frame-count, objects, relations, fit, extra) = [
+ #metadata((
+ schema: "xwysyy-slide-layout/v4",
+ id: id,
+ archetype: archetype,
+ layout_engine: engine,
+ page: page,
+ frame_count: frame-count,
+ coordinate_system: "normalized-slide-body",
+ objects: objects,
+ relations: relations,
+ fit: fit,
+ extra: extra,
+ ))
+]
+
+// Debug overlay: solid rect = frame, dashed rect = payload bbox.
+#let _debug-palette = (
+ rgb("#d7263d"), rgb("#2e86ab"), rgb("#4f772d"),
+ rgb("#7b2cbf"), rgb("#f77f00"), rgb("#006d77"),
+)
+#let _debug-layer(objects, W, H) = {
+ for (i, o) in objects.enumerate() {
+ let c = _debug-palette.at(calc.rem(i, _debug-palette.len()))
+ let f = o.frame
+ place(_atop + _aleft, dx: W * f.x, dy: H * f.y, rect(
+ width: W * f.w, height: H * f.h,
+ stroke: (paint: c, thickness: 0.7pt), fill: c.transparentize(93%),
+ ))
+ if o.sizing.y == "natural" or o.sizing.x == "natural" {
+ let p = o.payload
+ place(_atop + _aleft, dx: W * p.x, dy: H * p.y, rect(
+ width: W * p.w, height: H * p.h,
+ stroke: (paint: c, thickness: 0.5pt, dash: "dashed"),
+ ))
+ }
+ place(_atop + _aleft, dx: W * f.x + 0.2em, dy: H * f.y + 0.12em,
+ text(fill: c, size: 0.5em, weight: "bold", o.id))
+ }
+}
+
+// Card container for slot rendering: the theme's rounded skyll box; `calign`
+// controls where content sits inside a fixed-height box.
+#let _card-box(cw, h, fill, body, calign: horizon) = {
+ block(width: cw, height: h, fill: fill, inset: _CARD-PAD, radius: 0.4em, align(calign, body))
+}
+
+// Render one typed item into its allocated slot.
+#let _render-item(it, w, h, fill, calign: horizon) = {
+ if _painted(it) {
+ _card-box(w, h, fill, it.body, calign: calign)
+ } else {
+ block(width: w, height: h, align(center + calign, it.body))
+ }
+}
+
+// Resolve the slide id: `auto` becomes "@s" from touying's logical
+// slide counter, which is STABLE across reveal subslides and handout mode
+// (the physical page number is not: it changes per subslide and would detach
+// early frames from their layout record). Must run inside a context.
+#let _sid(id, base) = {
+ if id == auto { base + "@s" + str(utils.slide-counter.get().first()) } else { id }
+}
+
+// ---------------------------------------------------------------------------
+// duo-slide — one vertical semantic pair (e.g. figure over takeaway)
+// ---------------------------------------------------------------------------
+//
+// `top` coerces plain content to visual(fit: "natural"); wrap percent-height
+// content in visual() to make it the growing dominant block. `bottom`
+// coerces plain content to card() (painted).
+
+#let duo-slide(
+ title: auto,
+ id: auto,
+ top: none,
+ bottom: none,
+ mode: "balanced",
+ relation: "supports",
+ reveal: false,
+ debug: false,
+ tuning: (:),
+) = {
+ _check-mode(mode)
+ _check-relation("duo-slide", relation)
+ _require("duo-slide", "top", top)
+ _require("duo-slide", "bottom", bottom)
+ let tn = _tuning("duo-slide", tuning, (
+ "top-width": (default: 0.82, lo: 0.3, hi: 0.95),
+ "bottom-width": (default: 0.74, lo: 0.3, hi: 0.95),
+ ))
+ let ti = _validate-item("duo-slide", "top", _as-item(top, "visual"))
+ let bi = _validate-item("duo-slide", "bottom", _as-item(bottom, "card"))
+ let steps = _steps("duo-slide", (ti, bi), reveal, 2)
+ let rep = calc.max(..steps, 1)
+ xwysyy-slide(title: title, repeat: rep, self => context {
+ let cfill = _theme-state.get().skyll
+ layout(size => {
+ let W = size.width
+ let H = size.height
+ let sid = _sid(id, "duo")
+ _frame-mark(sid, self, size)
+ let twn = tn.at("top-width")
+ let bwn = tn.at("bottom-width")
+ let tw = W * twn
+ let bw = W * bwn
+ let gap = H * _mode-gap(mode)
+ let ts = _item-slot("duo-slide", "top", ti, tw, H)
+ let bs = _item-slot("duo-slide", "bottom", bi, bw, H)
+ let alloc = _alloc-column((ts.spec, bs.spec), ((min: gap * _GAP-MIN, pref: gap),), H)
+ let th = alloc.heights.at(0)
+ let bh = alloc.heights.at(1)
+ let g = alloc.gaps.at(0)
+ let y0 = alloc.y0
+
+ place(_atop + _aleft, dx: (W - tw) / 2, dy: y0,
+ _from(self, steps.at(0), _render-item(ti, tw, th, cfill)))
+ place(_atop + _aleft, dx: (W - bw) / 2, dy: y0 + th + g,
+ _from(self, steps.at(1), _render-item(bi, bw, bh, cfill)))
+
+ let objects = (
+ _obj(sid + ":top", ti.kind, ti.role,
+ (1.0 - twn) / 2, y0 / H, twn, th / H,
+ pref-h: ts.spec.pref / H,
+ pay-w: if ts.stretch { none } else { ts.pay-w / W },
+ pay-h: if ts.stretch { none } else { ts.pay-h / H },
+ pay-src: ts.src, over-x: ts.over-x,
+ pad-x: ts.pad / W, pad-y: ts.pad / H,
+ halign: if ts.painted { "left" } else { "center" },
+ painted: ts.painted, paint-fill: cfill.to-hex(),
+ visible-from: steps.at(0)),
+ _obj(sid + ":bottom", bi.kind, bi.role,
+ (1.0 - bwn) / 2, (y0 + th + g) / H, bwn, bh / H,
+ pref-h: bs.spec.pref / H,
+ pay-w: if bs.stretch { none } else { bs.pay-w / W },
+ pay-h: if bs.stretch { none } else { bs.pay-h / H },
+ pay-src: bs.src, over-x: bs.over-x,
+ pad-x: bs.pad / W, pad-y: bs.pad / H,
+ halign: if bs.painted { "left" } else { "center" },
+ painted: bs.painted, paint-fill: cfill.to-hex(),
+ visible-from: steps.at(1)),
+ )
+ let relations = (
+ _rel(sid + ":top", sid + ":bottom", relation, "vertical", _mode-proximity(mode)),
+ )
+ if self.subslide == rep {
+ _emit(sid, "duo", "column", here().position().page, rep, objects, relations,
+ alloc.fit, (mode: mode, tuned: tuning.len() > 0))
+ if debug { _debug-layer(objects, W, H) }
+ }
+ })
+ })
+}
+
+// ---------------------------------------------------------------------------
+// focus-slide — a single centered block for low-content pages
+// ---------------------------------------------------------------------------
+//
+// The one deliberate exception to fill-first: a focus page states a single
+// point and is allowed its symmetric whitespace. Plain content is coerced to
+// card(). A focus page has exactly one frame: it rejects reveal-from beyond
+// step 1 and stretch visuals (there is no free space to absorb). Fit still honours the
+// safe area: content taller than it reports tight, taller than the page
+// reports overflow.
+
+#let focus-slide(
+ title: auto,
+ id: auto,
+ body: none,
+ debug: false,
+ tuning: (:),
+) = {
+ _require("focus-slide", "body", body)
+ let tn = _tuning("focus-slide", tuning, (
+ "width": (default: 0.76, lo: 0.3, hi: 0.95),
+ "center-y": (default: _OPTICAL-CENTER, lo: 0.30, hi: 0.70),
+ ))
+ let it = _validate-item("focus-slide", "body", _as-item(body, "card"),
+ stretch: false, reveal: false)
+ xwysyy-slide(title: title, self => context {
+ let cfill = _theme-state.get().skyll
+ layout(size => {
+ let W = size.width
+ let H = size.height
+ let sid = _sid(id, "focus")
+ _frame-mark(sid, self, size)
+ let wn = tn.at("width")
+ let cw = W * wn
+ let m = _measure-item("focus-slide", "body", it, cw)
+ let hr = m.outer / H
+ let fit = if hr <= _FILL {
+ (state: "normal", required_height_ratio: hr, gap_ratio: 1.0,
+ margin_deficit_ratio: 0.0, body_overflow_ratio: 0.0)
+ } else if hr <= 1.0 {
+ (state: "tight", required_height_ratio: hr, gap_ratio: 1.0,
+ margin_deficit_ratio: hr - _FILL, body_overflow_ratio: 0.0)
+ } else {
+ (state: "overflow", required_height_ratio: hr, gap_ratio: 1.0,
+ margin_deficit_ratio: 1.0 - _FILL, body_overflow_ratio: hr - 1.0)
+ }
+ let y = if fit.state == "normal" {
+ _clamp(tn.at("center-y") - hr / 2, _MARGIN-TOP,
+ calc.max(1.0 - _MARGIN-BOT - hr, _MARGIN-TOP))
+ } else if fit.state == "tight" { (1.0 - hr) / 2 } else { 0.0 }
+
+ place(_atop + _aleft, dx: (W - cw) / 2, dy: H * y,
+ _render-item(it, cw, m.outer, cfill))
+
+ let objects = (
+ _obj(sid + ":focus", it.kind, it.role,
+ (1.0 - wn) / 2, y, wn, hr,
+ pref-h: hr,
+ pay-w: m.pay-w / W, pay-h: m.pay-h / H,
+ pay-src: m.src, over-x: m.over-x,
+ pad-x: m.pad / W, pad-y: m.pad / H,
+ halign: if _painted(it) { "left" } else { "center" },
+ painted: _painted(it), paint-fill: cfill.to-hex()),
+ )
+ _emit(sid, "focus", "single", here().position().page, 1, objects, (), fit,
+ (tuned: tuning.len() > 0))
+ if debug { _debug-layer(objects, W, H) }
+ })
+ })
+}
+
+// ---------------------------------------------------------------------------
+// stack-slide — N vertical blocks, fill-first (duo generalized)
+// ---------------------------------------------------------------------------
+//
+// Takes typed items; plain content is coerced to card(). Stretch visuals
+// absorb the free space; a stack with no stretch visual grows its cards so
+// every card reads tall. With `reveal: true` item i appears on subslide i
+// (override per item with `reveal-from`).
+
+#let stack-slide(
+ title: auto,
+ id: auto,
+ items: (),
+ relation: "supports",
+ mode: "balanced",
+ reveal: false,
+ debug: false,
+ tuning: (:),
+) = {
+ _check-mode(mode)
+ _check-relation("stack-slide", relation)
+ let tn = _tuning("stack-slide", tuning, (
+ "width": (default: 0.82, lo: 0.3, hi: 0.95),
+ ))
+ let its = items.enumerate().map(((i, x)) =>
+ _validate-item("stack-slide", "items[" + str(i) + "]", _as-item(x, "card")))
+ let n = its.len()
+ if n == 0 {
+ panic("stack-slide: items is empty")
+ }
+ let steps = _steps("stack-slide", its, reveal, n)
+ let rep = calc.max(..steps, 1)
+ xwysyy-slide(title: title, repeat: rep, self => context {
+ let cfill = _theme-state.get().skyll
+ layout(size => {
+ let W = size.width
+ let H = size.height
+ let sid = _sid(id, "stack")
+ _frame-mark(sid, self, size)
+ let wn = tn.at("width")
+ let bw = W * wn
+ let slots = its.enumerate().map(((i, it)) =>
+ _item-slot("stack-slide", "items[" + str(i) + "]", it, bw, H))
+ // Grow policy: stretch visuals absorb free space; without one, the
+ // cards share it so a pure-text stack reads as tall cards.
+ let has-stretch = slots.any(s => s.stretch)
+ let specs = slots.enumerate().map(((i, s)) => {
+ if s.stretch { s.spec }
+ else if not has-stretch and its.at(i).kind == "card" {
+ (min: s.spec.min, pref: s.spec.pref, max: none, grow: 1.0)
+ } else { s.spec }
+ })
+ let gap = H * _mode-gap(mode)
+ let alloc = _alloc-column(specs, ((min: gap * _GAP-MIN, pref: gap),) * (n - 1), H)
+
+ let objects = ()
+ let relations = ()
+ let cy = alloc.y0
+ for (i, it) in its.enumerate() {
+ let h = alloc.heights.at(i)
+ let s = slots.at(i)
+ place(_atop + _aleft, dx: (W - bw) / 2, dy: cy,
+ _from(self, steps.at(i), _render-item(it, bw, h, cfill)))
+ let oid = sid + ":" + str(i)
+ objects.push(_obj(oid, it.kind, it.role,
+ (1.0 - wn) / 2, cy / H, wn, h / H,
+ pref-h: specs.at(i).pref / H,
+ pay-w: if s.stretch { none } else { s.pay-w / W },
+ pay-h: if s.stretch { none } else { s.pay-h / H },
+ pay-src: s.src, over-x: s.over-x,
+ pad-x: s.pad / W, pad-y: s.pad / H,
+ halign: if s.painted { "left" } else { "center" },
+ painted: s.painted, paint-fill: cfill.to-hex(),
+ visible-from: steps.at(i)))
+ if i > 0 {
+ relations.push(_rel(sid + ":" + str(i - 1), oid, relation, "vertical", _mode-proximity(mode)))
+ }
+ cy = cy + h + if i < n - 1 { alloc.gaps.at(i) } else { 0pt }
+ }
+ if self.subslide == rep {
+ _emit(sid, "stack", "column", here().position().page, rep, objects, relations,
+ alloc.fit, (mode: mode, tuned: tuning.len() > 0))
+ if debug { _debug-layer(objects, W, H) }
+ }
+ })
+ })
+}
+
+// ---------------------------------------------------------------------------
+// grid-slide — N equal-height peer columns (N >= 2)
+// ---------------------------------------------------------------------------
+//
+// Columns take typed items; plain content is coerced to card(). Row layouts
+// are sized by their natural height, so stretch visuals are rejected up
+// front. Consecutive columns carry a `peer` relation so the checker
+// validates the gutter.
+
+#let grid-slide(
+ title: auto,
+ id: auto,
+ columns: (),
+ reveal: false,
+ debug: false,
+ tuning: (:),
+) = {
+ let tn = _tuning("grid-slide", tuning, (
+ "gutter": (default: 0.04, lo: 0.0, hi: 0.2),
+ ))
+ let its = columns.enumerate().map(((i, x)) =>
+ _validate-item("grid-slide", "columns[" + str(i) + "]", _as-item(x, "card"),
+ stretch: false))
+ let n = its.len()
+ if n < 2 {
+ panic("grid-slide: needs at least 2 columns (use stack-slide or focus-slide for one block)")
+ }
+ let steps = _steps("grid-slide", its, reveal, n)
+ let rep = calc.max(..steps, 1)
+ xwysyy-slide(title: title, repeat: rep, self => context {
+ let cfill = _theme-state.get().skyll
+ layout(size => {
+ let W = size.width
+ let H = size.height
+ let sid = _sid(id, "grid")
+ _frame-mark(sid, self, size)
+ let gutter = tn.at("gutter")
+ let cwn = (1.0 - gutter * (n - 1)) / n
+ if cwn <= 0.0 {
+ panic("grid-slide: gutter " + repr(gutter) + " leaves no width for " + repr(n) + " columns")
+ }
+ let cw = W * cwn
+ let slots = its.enumerate().map(((i, it)) =>
+ _item-slot("grid-slide", "columns[" + str(i) + "]", it, cw, H))
+ let naturals = slots.map(s => s.spec.pref)
+ let row = _fit-row(naturals, H)
+
+ let objects = ()
+ let relations = ()
+ for (i, it) in its.enumerate() {
+ let s = slots.at(i)
+ let xn = i * (cwn + gutter)
+ place(_atop + _aleft, dx: W * xn, dy: row.y,
+ _from(self, steps.at(i), _render-item(it, cw, row.row, cfill)))
+ let oid = sid + ":" + str(i)
+ objects.push(_obj(oid, it.kind, it.role,
+ xn, row.y / H, cwn, row.row / H,
+ pref-h: s.spec.pref / H,
+ pay-w: s.pay-w / W, pay-h: s.pay-h / H,
+ pay-src: s.src, over-x: s.over-x,
+ pad-x: s.pad / W, pad-y: s.pad / H,
+ halign: if s.painted { "left" } else { "center" },
+ painted: s.painted, paint-fill: cfill.to-hex(),
+ visible-from: steps.at(i)))
+ if i > 0 {
+ relations.push(_rel(sid + ":" + str(i - 1), oid, "peer", "horizontal", "gutter"))
+ }
+ }
+ if self.subslide == rep {
+ _emit(sid, "grid", "row", here().position().page, rep, objects, relations, row.fit,
+ (tuned: tuning.len() > 0))
+ if debug { _debug-layer(objects, W, H) }
+ }
+ })
+ })
+}
+
+// ---------------------------------------------------------------------------
+// compare-slide — two equal-height cards read as a contrast
+// ---------------------------------------------------------------------------
+//
+// Cards share one row height; content is TOP-aligned so the two openings sit
+// on the same line, which is how a contrast is read. Both sides are
+// required; plain content is coerced to card(); stretch visuals are rejected
+// up front (row layouts are sized by their natural height).
+
+#let compare-slide(
+ title: auto,
+ id: auto,
+ left: none,
+ right: none,
+ reveal: false,
+ debug: false,
+ tuning: (:),
+) = {
+ _require("compare-slide", "left", left)
+ _require("compare-slide", "right", right)
+ let tn = _tuning("compare-slide", tuning, (
+ "gutter": (default: 0.06, lo: 0.0, hi: 0.2),
+ ))
+ let li = _validate-item("compare-slide", "left", _as-item(left, "card"), stretch: false)
+ let ri = _validate-item("compare-slide", "right", _as-item(right, "card"), stretch: false)
+ let steps = _steps("compare-slide", (li, ri), reveal, 2)
+ let rep = calc.max(..steps, 1)
+ xwysyy-slide(title: title, repeat: rep, self => context {
+ let cfill = _theme-state.get().skyll
+ layout(size => {
+ let W = size.width
+ let H = size.height
+ let sid = _sid(id, "compare")
+ _frame-mark(sid, self, size)
+ let gutter = tn.at("gutter")
+ let cwn = (1.0 - gutter) / 2
+ let cw = W * cwn
+ let ls = _item-slot("compare-slide", "left", li, cw, H)
+ let rs = _item-slot("compare-slide", "right", ri, cw, H)
+ let row = _fit-row((ls.spec.pref, rs.spec.pref), H)
+
+ place(_atop + _aleft, dx: 0pt, dy: row.y,
+ _from(self, steps.at(0), _render-item(li, cw, row.row, cfill, calign: _atop)))
+ place(_atop + _aleft, dx: W * (cwn + gutter), dy: row.y,
+ _from(self, steps.at(1), _render-item(ri, cw, row.row, cfill, calign: _atop)))
+
+ let objects = (
+ _obj(sid + ":left", li.kind, li.role,
+ 0.0, row.y / H, cwn, row.row / H,
+ pref-h: ls.spec.pref / H,
+ pay-w: ls.pay-w / W, pay-h: ls.pay-h / H,
+ pay-src: ls.src, over-x: ls.over-x,
+ pad-x: ls.pad / W, pad-y: ls.pad / H,
+ calign: "top", halign: if ls.painted { "left" } else { "center" },
+ painted: ls.painted, paint-fill: cfill.to-hex(),
+ visible-from: steps.at(0)),
+ _obj(sid + ":right", ri.kind, ri.role,
+ cwn + gutter, row.y / H, cwn, row.row / H,
+ pref-h: rs.spec.pref / H,
+ pay-w: rs.pay-w / W, pay-h: rs.pay-h / H,
+ pay-src: rs.src, over-x: rs.over-x,
+ pad-x: rs.pad / W, pad-y: rs.pad / H,
+ calign: "top", halign: if rs.painted { "left" } else { "center" },
+ painted: rs.painted, paint-fill: cfill.to-hex(),
+ visible-from: steps.at(1)),
+ )
+ let relations = (
+ _rel(sid + ":left", sid + ":right", "contrast", "horizontal", "gutter"),
+ )
+ if self.subslide == rep {
+ _emit(sid, "compare", "row", here().position().page, rep, objects, relations, row.fit,
+ (tuned: tuning.len() > 0))
+ if debug { _debug-layer(objects, W, H) }
+ }
+ })
+ })
+}
+
+// ---------------------------------------------------------------------------
+// stat-slide — a row of metric tiles (big value + label)
+// ---------------------------------------------------------------------------
+//
+// Standalone row engine (shares `_fit-row`), so the value auto-shrink scale
+// is measured here and exported in the telemetry. `stats` takes typed
+// `metric(value, label, reveal-from: ...)` entries; the value and the label
+// are measured separately (never through the tile's forced width) and both
+// must render non-empty.
+
+#let metric(value, label, reveal-from: auto) = {
+ if value == none { panic("metric: value is required") }
+ if label == none { panic("metric: label is required") }
+ (xwysyy-metric: true, value: value, label: label, reveal-from: reveal-from)
+}
+
+#let stat-slide(
+ title: auto,
+ id: auto,
+ stats: (),
+ reveal: false,
+ debug: false,
+ tuning: (:),
+) = {
+ let n = stats.len()
+ if n == 0 {
+ panic("stat-slide: stats is empty")
+ }
+ for (i, s) in stats.enumerate() {
+ if type(s) != dictionary or not s.at("xwysyy-metric", default: false) {
+ panic("stat-slide: stats[" + str(i) + "] must be built with metric(value, label)")
+ }
+ if s.at("value", default: none) == none or s.at("label", default: none) == none {
+ panic("stat-slide: stats[" + str(i) + "] must carry both value and label")
+ }
+ }
+ let tn = _tuning("stat-slide", tuning, (
+ "gutter": (default: 0.04, lo: 0.0, hi: 0.2),
+ ))
+ let steps = _steps("stat-slide", stats, reveal, n)
+ let rep = calc.max(..steps, 1)
+ // Both metric fields must render non-empty (an empty string still has line
+ // height, but zero width).
+ let assert-metric(i, s) = {
+ if measure(text(weight: 700, s.value)).width < _EPS-L {
+ panic("stat-slide: stats[" + str(i) + "] value renders empty")
+ }
+ if measure(s.label).width < _EPS-L {
+ panic("stat-slide: stats[" + str(i) + "] label renders empty")
+ }
+ }
+ xwysyy-slide(title: title, repeat: rep, self => context {
+ let t = _theme-state.get()
+ layout(size => {
+ let W = size.width
+ let H = size.height
+ let sid = _sid(id, "stat")
+ _frame-mark(sid, self, size)
+ for (i, s) in stats.enumerate() { assert-metric(i, s) }
+ let gutter = tn.at("gutter")
+ let cwn = (1.0 - gutter * (n - 1)) / n
+ if cwn <= 0.0 {
+ panic("stat-slide: gutter " + repr(gutter) + " leaves no width for " + repr(n) + " tiles")
+ }
+ let cw = W * cwn
+ let pad = _CARD-PAD.to-absolute()
+ let iw = cw - 2 * pad
+ // Fit each value to its tile: shrink down to the floor scale, below
+ // which the value wraps and the tile grows (reported by fit).
+ let scales = stats.map(s => {
+ let vw = measure(text(size: 2.6em, weight: 700, s.value)).width
+ if vw > iw and vw > 0pt { calc.max(iw / vw, _STAT-SCALE-MIN) } else { 1.0 }
+ })
+ let tile(i) = {
+ let s = stats.at(i)
+ align(center + horizon, stack(
+ spacing: 0.2em,
+ align(center, text(size: 2.6em * scales.at(i), weight: 700, fill: t.sea, s.value)),
+ align(center, text(size: 0.95em, fill: t.sea.lighten(12%), s.label)),
+ ))
+ }
+ // Payload width comes from the value and the label measured
+ // separately, never from the tile's forced full width.
+ let pays = range(n).map(i => {
+ let s = stats.at(i)
+ let vstyled = text(size: 2.6em * scales.at(i), weight: 700, s.value)
+ let vm = measure(vstyled)
+ let lm = measure(text(size: 0.95em, s.label))
+ let vc = measure(block(width: iw, vstyled))
+ (
+ w: calc.max(vm.width, lm.width),
+ h: measure(block(width: iw, tile(i))).height,
+ over-x: _overflows-x(vm, vc, iw),
+ )
+ })
+ let naturals = pays.map(p => p.h + 2 * pad)
+ let row = _fit-row(naturals, H)
+
+ let objects = ()
+ let relations = ()
+ for i in range(n) {
+ let xn = i * (cwn + gutter)
+ place(_atop + _aleft, dx: W * xn, dy: row.y,
+ _from(self, steps.at(i),
+ block(width: cw, height: row.row, fill: t.skyll, inset: _CARD-PAD,
+ radius: 0.4em, align(horizon, tile(i)))))
+ let oid = sid + ":" + str(i)
+ objects.push(_obj(oid, "card", "metric",
+ xn, row.y / H, cwn, row.row / H,
+ pref-h: naturals.at(i) / H,
+ pay-w: calc.min(pays.at(i).w, iw) / W, pay-h: pays.at(i).h / H,
+ pay-src: "measured", over-x: pays.at(i).over-x,
+ pad-x: pad / W, pad-y: pad / H,
+ painted: true, paint-fill: t.skyll.to-hex(),
+ visible-from: steps.at(i)))
+ if i > 0 {
+ relations.push(_rel(sid + ":" + str(i - 1), oid, "peer", "horizontal", "gutter"))
+ }
+ }
+ if self.subslide == rep {
+ _emit(sid, "stat", "row", here().position().page, rep, objects, relations, row.fit, (
+ value_scales: scales,
+ tuned: tuning.len() > 0,
+ ))
+ if debug { _debug-layer(objects, W, H) }
+ }
+ })
+ })
+}
+
+// ---------------------------------------------------------------------------
+// figure-slide — figure, tight caption, optional takeaway
+// ---------------------------------------------------------------------------
+//
+// The caption is measured first and subtracted, then the figure slot receives
+// an explicit height, so a stretch figure fills its slot instead of escaping
+// the wrapper (Typst measures percentage heights as 0 in an unbounded
+// context). `fig` coerces plain content to visual(fit: "natural"); wrap it
+// in visual() to make it fill. `takeaway` coerces to a painted takeaway card
+// and rejects stretch. Reveal goes through the shared resolver: with
+// `reveal: true` the figure shows first and the takeaway follows; per-item
+// `reveal-from` overrides that order, and the caption always follows the
+// figure.
+
+#let figure-slide(
+ title: auto,
+ id: auto,
+ fig: none,
+ caption: none,
+ takeaway: none,
+ mode: "balanced",
+ reveal: false,
+ debug: false,
+ tuning: (:),
+) = {
+ _check-mode(mode)
+ _require("figure-slide", "fig", fig)
+ let tn = _tuning("figure-slide", tuning, (
+ "figure-width": (default: 0.80, lo: 0.3, hi: 0.95),
+ "takeaway-width": (default: 0.74, lo: 0.3, hi: 0.95),
+ ))
+ let fi = _validate-item("figure-slide", "fig", _as-item(fig, "visual"))
+ let ki = if takeaway == none { none } else {
+ _validate-item("figure-slide", "takeaway", _as-item(takeaway, "takeaway"), stretch: false)
+ }
+ let items = if ki == none { (fi,) } else { (fi, ki) }
+ let steps = _steps("figure-slide", items, reveal, items.len())
+ let fig-step = steps.at(0)
+ let tk-step = if ki != none { steps.at(1) } else { 1 }
+ let rep = calc.max(..steps, 1)
+ let cap = if caption == none { none } else {
+ context text(size: 0.85em, fill: _theme-state.get().sea.lighten(12%), style: "italic", caption)
+ }
+ xwysyy-slide(title: title, repeat: rep, self => context {
+ let cfill = _theme-state.get().skyll
+ layout(size => {
+ let W = size.width
+ let H = size.height
+ let sid = _sid(id, "figure")
+ _frame-mark(sid, self, size)
+ let fwn = tn.at("figure-width")
+ let twn = tn.at("takeaway-width")
+ let fw = W * fwn
+ let tw = W * twn
+ let cap-gap = 0.5em.to-absolute()
+ let mode-gap = H * _mode-gap(mode)
+
+ let fs = _item-slot("figure-slide", "fig", fi, fw, H)
+ let specs = (fs.spec,)
+ let gaps = ()
+ let cap-m = if cap != none {
+ let m = measure(block(width: fw, cap))
+ specs.push((min: m.height, pref: m.height, max: m.height, grow: 0.0))
+ // The caption gap is tight by design and not compressible.
+ gaps.push((min: cap-gap, pref: cap-gap))
+ m
+ } else { none }
+ let ks = if ki != none {
+ let s = _item-slot("figure-slide", "takeaway", ki, tw, H)
+ specs.push(s.spec)
+ gaps.push((min: mode-gap * _GAP-MIN, pref: mode-gap))
+ s
+ } else { none }
+ let alloc = _alloc-column(specs, gaps, H)
+
+ let objects = ()
+ let relations = ()
+ let cy = alloc.y0
+ let idx = 0
+ let fh = alloc.heights.at(idx)
+ place(_atop + _aleft, dx: (W - fw) / 2, dy: cy,
+ _from(self, fig-step, _render-item(fi, fw, fh, cfill)))
+ objects.push(_obj(sid + ":figure", fi.kind, fi.role,
+ (1.0 - fwn) / 2, cy / H, fwn, fh / H,
+ pref-h: fs.spec.pref / H,
+ pay-w: if fs.stretch { none } else { fs.pay-w / W },
+ pay-h: if fs.stretch { none } else { fs.pay-h / H },
+ pay-src: fs.src, over-x: fs.over-x,
+ pad-x: fs.pad / W, pad-y: fs.pad / H,
+ painted: fs.painted, paint-fill: cfill.to-hex(),
+ visible-from: fig-step))
+ cy = cy + fh
+ idx += 1
+ if cap != none {
+ cy = cy + alloc.gaps.at(idx - 1)
+ let ch = alloc.heights.at(idx)
+ place(_atop + _aleft, dx: (W - fw) / 2, dy: cy,
+ _from(self, fig-step, block(width: fw, align(center, cap))))
+ let cm = measure(cap)
+ objects.push(_obj(sid + ":caption", "plain", "caption",
+ (1.0 - fwn) / 2, cy / H, fwn, ch / H,
+ pref-h: ch / H,
+ pay-w: calc.min(cm.width, fw) / W, pay-h: cap-m.height / H,
+ pay-src: "measured",
+ over-x: _overflows-x(cm, cap-m, fw),
+ visible-from: fig-step))
+ relations.push(_rel(sid + ":figure", sid + ":caption", "caption", "vertical", "tight"))
+ cy = cy + ch
+ idx += 1
+ }
+ if ki != none {
+ cy = cy + alloc.gaps.at(idx - 1)
+ let th = alloc.heights.at(idx)
+ place(_atop + _aleft, dx: (W - tw) / 2, dy: cy,
+ _from(self, tk-step, _render-item(ki, tw, th, cfill)))
+ let anchor = if cap != none { sid + ":caption" } else { sid + ":figure" }
+ objects.push(_obj(sid + ":takeaway", ki.kind, ki.role,
+ (1.0 - twn) / 2, cy / H, twn, th / H,
+ pref-h: ks.spec.pref / H,
+ pay-w: ks.pay-w / W, pay-h: ks.pay-h / H,
+ pay-src: ks.src, over-x: ks.over-x,
+ pad-x: ks.pad / W, pad-y: ks.pad / H,
+ halign: if ks.painted { "left" } else { "center" },
+ painted: ks.painted, paint-fill: cfill.to-hex(),
+ visible-from: tk-step))
+ relations.push(_rel(anchor, sid + ":takeaway", "supports", "vertical", _mode-proximity(mode)))
+ }
+ if self.subslide == rep {
+ _emit(sid, "figure", "column", here().position().page, rep, objects, relations,
+ alloc.fit, (mode: mode, tuned: tuning.len() > 0))
+ if debug { _debug-layer(objects, W, H) }
+ }
+ })
+ })
+}
+
+// ---------------------------------------------------------------------------
+// sidebar-slide — a narrow label tab beside a wide content card
+// ---------------------------------------------------------------------------
+//
+// No `reveal`: the label and its content have no presentation order. Both
+// slots take plain content only (the component paints its own boxes; do not
+// wrap the body in `textbox` or pass typed items).
+
+#let sidebar-slide(
+ title: auto,
+ id: auto,
+ label: none,
+ body: none,
+ debug: false,
+ tuning: (:),
+) = {
+ _require("sidebar-slide", "label", label)
+ _require("sidebar-slide", "body", body)
+ if type(label) == dictionary or type(body) == dictionary {
+ panic("sidebar-slide: label and body take plain content, not typed items")
+ }
+ let tn = _tuning("sidebar-slide", tuning, (
+ "label-width": (default: 0.26, lo: 0.1, hi: 0.5),
+ "gutter": (default: 0.04, lo: 0.0, hi: 0.2),
+ ))
+ // Both slots are text cards: spacers, empty strings, and bare rules panic.
+ let assert-slot(slot, body, w) = {
+ let mu = measure(body)
+ let mc = measure(block(width: w, body))
+ if mu.width < _EPS-L {
+ panic("sidebar-slide: " + slot + " has no measurable width — spacers and "
+ + "empty strings are not content")
+ }
+ if mc.height < _EPS-L {
+ panic("sidebar-slide: " + slot + " has no measurable height — a bare rule "
+ + "is decoration, not content")
+ }
+ (mu: mu, mc: mc)
+ }
+ xwysyy-slide(title: title, self => context {
+ let t = _theme-state.get()
+ layout(size => {
+ let W = size.width
+ let H = size.height
+ let sid = _sid(id, "sidebar")
+ _frame-mark(sid, self, size)
+ let lwn = tn.at("label-width")
+ let gutter = tn.at("gutter")
+ let bwn = 1.0 - lwn - gutter
+ let lw = W * lwn
+ let bw = W * bwn
+ let pad = _CARD-PAD.to-absolute()
+ // The label is measured with the same styled content it is rendered
+ // with (bold via `set text`, not `strong`, whose show rule enlarges
+ // the run and would make the measurement disagree with the render).
+ let label-inner = {
+ set text(weight: "bold")
+ show raw: set text(fill: t.sea)
+ label
+ }
+ let lmm = assert-slot("label", label-inner, lw - 2 * pad)
+ let bmm = assert-slot("body", body, bw - 2 * pad)
+ let lh = lmm.mc.height + 2 * pad
+ let bh = bmm.mc.height + 2 * pad
+ let row = _fit-row((lh, bh), H)
+
+ place(_atop + _aleft, dx: 0pt, dy: row.y,
+ block(width: lw, height: row.row, fill: t.sea, inset: pad, radius: 0.4em,
+ align(horizon + _aleft, {
+ // Label text is light (paper) on the dark sea tab; inline code
+ // keeps its light chip but takes dark (sea) text so it stays
+ // readable instead of light-on-light.
+ set text(fill: t.paper)
+ label-inner
+ })))
+ place(_atop + _aleft, dx: W * (lwn + gutter), dy: row.y,
+ block(width: bw, height: row.row, fill: t.skyll, inset: pad, radius: 0.4em,
+ align(horizon, body)))
+
+ let objects = (
+ _obj(sid + ":label", "card", "label",
+ 0.0, row.y / H, lwn, row.row / H,
+ pref-h: lh / H,
+ pay-w: calc.min(lmm.mu.width, lw - 2 * pad) / W,
+ pay-h: lmm.mc.height / H,
+ pay-src: "measured",
+ over-x: _overflows-x(lmm.mu, lmm.mc, lw - 2 * pad),
+ pad-x: pad / W, pad-y: pad / H,
+ halign: "left", painted: true, paint-fill: t.sea.to-hex()),
+ _obj(sid + ":body", "card", "content",
+ lwn + gutter, row.y / H, bwn, row.row / H,
+ pref-h: bh / H,
+ pay-w: calc.min(bmm.mu.width, bw - 2 * pad) / W,
+ pay-h: bmm.mc.height / H,
+ pay-src: "measured",
+ over-x: _overflows-x(bmm.mu, bmm.mc, bw - 2 * pad),
+ pad-x: pad / W, pad-y: pad / H,
+ halign: "left", painted: true, paint-fill: t.skyll.to-hex()),
+ )
+ let relations = (_rel(sid + ":label", sid + ":body", "labels", "horizontal", "gutter"),)
+ _emit(sid, "sidebar", "row", here().position().page, 1, objects, relations, row.fit,
+ (tuned: tuning.len() > 0))
+ if debug { _debug-layer(objects, W, H) }
+ })
+ })
+}
diff --git a/packages/preview/xwysyy/0.5.0/src/slides.typ b/packages/preview/xwysyy/0.5.0/src/slides.typ
new file mode 100644
index 0000000000..88234f0869
--- /dev/null
+++ b/packages/preview/xwysyy/0.5.0/src/slides.typ
@@ -0,0 +1,359 @@
+// Slides: touying-based slide variants and the xwysyy-pre entry.
+
+#import "@preview/touying:0.8.0": *
+#import "themes.typ": *
+#import "elements.typ": *
+
+#let _auto-outline-title(title) = {
+ if title == auto {
+ context {
+ if text.lang == "zh" { [目录] } else { [Contents] }
+ }
+ } else {
+ title
+ }
+}
+
+// Per-page manifest: every slide layout declares its kind and physical page,
+// so the layout checker can compute telemetry coverage (which content pages
+// carry no layout telemetry) and exempt title/section/end/image/outline pages.
+#let _page-manifest(kind) = context [
+ #metadata((schema: "xwysyy-page/v1", kind: kind, page: here().position().page))
+]
+
+// Checker-exempt page kinds (title / section / end / image / outline) are
+// emitted by their own slide functions only: the public `xwysyy-slide` has no
+// kind parameter, so a content page cannot spoof an exemption.
+#let _kinded-slide(kind, title: auto, ..args) = {
+ touying-slide-wrapper(self => {
+ if title != auto {
+ self.store.title = title
+ }
+ // Open header (ported from the poster's section header): sans title in
+ // the theme color over a thin gradient rule fading to the right. The
+ // title shrinks to fit one line (floor 0.65×): the page's top margin is
+ // fixed, so a wrapped title would collide with the rule and the body.
+ // The applied scale is exported as `` telemetry; a title
+ // still wider than the header at the floor scale reports fits: false.
+ let header(self) = {
+ set align(top)
+ block(
+ width: 100% + 2em,
+ inset: (x: 1em, top: 1.1em),
+ {
+ context {
+ let avail = page.width - 2em.to-absolute()
+ let title-body = if self.store.title != none {
+ utils.call-or-display(self, self.store.title)
+ } else {
+ utils.display-current-heading(level: 2)
+ }
+ let styled(s) = text(
+ font: self.store.heading-font,
+ fill: self.colors.neutral-dark,
+ weight: "bold",
+ size: 1.45em * s,
+ title-body,
+ )
+ let natural = measure(box(styled(1.0))).width
+ let scale = if natural > avail and natural > 0pt {
+ calc.max(avail / natural, 0.65)
+ } else { 1.0 }
+ let hsize = measure(box(styled(scale)))
+ // Vertical fit: top inset + title + gap + rule must stay inside
+ // the fixed top margin, or an explicitly wrapped / oversized
+ // title collides with the rule and the body.
+ let used = (1.1em + 0.65em + 0.12em).to-absolute() + hsize.height
+ [#metadata((
+ schema: "xwysyy-header/v2",
+ page: here().position().page,
+ scale: scale,
+ fits: natural * scale <= avail + 0.01pt,
+ height: hsize.height.pt(),
+ fits_v: used <= 4.35em.to-absolute() + 0.01pt,
+ )) ]
+ block(styled(scale))
+ }
+ v(0.65em, weak: true)
+ // Full-width track whose ink fades out completely by 92% — the
+ // tail dies before the page edge instead of running into it.
+ rect(
+ width: 100%,
+ height: 0.12em,
+ radius: (left: 0.06em),
+ fill: gradient.linear(
+ (self.colors.neutral-dark, 0%),
+ (self.colors.primary, 42%),
+ (self.colors.primary.transparentize(100%), 92%),
+ (self.colors.primary.transparentize(100%), 100%),
+ ),
+ )
+ },
+ )
+ }
+ // Footer: page number in the bottom-right corner only.
+ let footer(self) = {
+ set align(bottom + right)
+ set text(fill: self.colors.neutral-dark, size: .9em)
+ block(
+ inset: (x: 0.5em, bottom: 0.4em),
+ context utils.slide-counter.display(),
+ )
+ }
+ self = utils.merge-dicts(
+ self,
+ config-page(
+ header: header,
+ footer: footer,
+ ),
+ )
+ // Prepend the page manifest to the slide body (works for both plain
+ // content and callback-style `self => ...` bodies).
+ let bodies = args.pos()
+ let raw-body = if bodies.len() > 0 { bodies.first() } else { [] }
+ let tagged = if type(raw-body) == function {
+ s => { _page-manifest(kind); raw-body(s) }
+ } else {
+ { _page-manifest(kind); raw-body }
+ }
+ touying-slide(self: self, ..args.named(), tagged, ..bodies.slice(1))
+ })
+}
+
+#let xwysyy-slide(title: auto, ..args) = {
+ if "kind" in args.named() {
+ panic("xwysyy-slide: kind is not a parameter; outline pages use outline-slide, "
+ + "full-bleed pages use title-slide / new-section-slide / end-slide / image-slide")
+ }
+ _kinded-slide("content", title: title, ..args)
+}
+
+#let title-slide(..args) = {
+ touying-slide-wrapper(self => {
+ self = utils.merge-dicts(
+ self,
+ config-page(margin: 0em),
+ )
+ self.info = self.info + args.named()
+ let info = self.info
+ let body = {
+ _page-manifest("title")
+ set align(center + horizon)
+ line(length: 100%, stroke: self.colors.neutral-dark)
+ v(-0.9em)
+ block(
+ fill: self.colors.neutral-dark,
+ width: 100%,
+ inset: (y: 1.2em),
+ text(size: 2.2em, fill: self.colors.neutral-lightest, weight: "bold", info.title),
+ )
+ if info.subtitle != none {
+ v(-0.9em)
+ block(
+ fill: self.colors.neutral-lighter,
+ width: 100%,
+ {
+ line(length: 100%, stroke: self.colors.neutral-dark)
+ v(-0.65em)
+ text(size: 1.6em, fill: self.colors.neutral-dark, weight: "bold", info.subtitle)
+ v(-0.65em)
+ line(length: 100%, stroke: self.colors.neutral-dark)
+ }
+ )
+ }
+ set text(fill: self.colors.neutral-darkest)
+ v(1em)
+ if info.author != none {
+ block(text(size: 1.1em, info.author))
+ }
+ if info.institution != none {
+ block(text(size: 0.9em, style: "italic", info.institution))
+ }
+ if info.date != none {
+ block(utils.display-info-date(self))
+ }
+ }
+ touying-slide(self: self, body)
+ })
+}
+
+#let new-section-slide(body) = {
+ touying-slide-wrapper(self => {
+ self = utils.merge-dicts(
+ self,
+ config-page(
+ margin: 0em,
+ ),
+ )
+ let main-body = {
+ _page-manifest("section")
+ set align(center + horizon)
+ set text(size: 2em, fill: self.colors.neutral-dark, weight: "bold", style: "italic")
+ line(start: (17%, 0em), length: 83%, stroke: self.colors.neutral-dark)
+ v(-0.97em)
+ block(
+ fill: self.colors.neutral-lighter,
+ inset: (y: 0.42em),
+ width: 100%,
+ utils.display-current-heading(level: 1)
+ )
+ v(-0.97em)
+ line(start: (-17%, 0em), length: 83%, stroke: self.colors.neutral-dark)
+ }
+ touying-slide(self: self, main-body)
+ })
+}
+
+#let end-slide(title: [Thank You!], body: none) = {
+ touying-slide-wrapper(self => {
+ self = utils.merge-dicts(self, config-page(margin: 2em))
+ let main-body = {
+ _page-manifest("end")
+ set align(center + horizon)
+ text(fill: self.colors.neutral-dark, size: 3em, weight: "bold", title)
+ if body != none {
+ v(0.5em)
+ line(length: 20%, stroke: (thickness: 1.5pt, paint: self.colors.primary))
+ v(0.5em)
+ text(size: 1.3em, fill: self.colors.neutral-dark.lighten(30%), body)
+ }
+ }
+ touying-slide(self: self, main-body)
+ })
+}
+
+#let outline-slide(chapters: auto, title: auto) = {
+ _kinded-slide("outline", title: _auto-outline-title(title))[
+ #context {
+ let t = _theme-state.get()
+ let chs = if chapters == auto {
+ query(heading.where(level: 1))
+ .filter(h => not h.has("label") or str(h.label) != "touying:hidden")
+ .map(h => h.body)
+ } else {
+ chapters
+ }
+ let two-col = chs.len() > 5
+ let bsz = if two-col { 2em } else { 2.6em }
+ let tsz = if two-col { 1.4em } else { 2em }
+ let badge(n) = box(
+ width: bsz, height: bsz, fill: t.sea, radius: 50%,
+ align(center + horizon, text(fill: t.paper, weight: "bold", size: bsz * 0.58, n))
+ )
+ let items = chs.enumerate().map(((i, ch)) => grid(
+ columns: (auto, 1fr),
+ column-gutter: if two-col { 1em } else { 1.4em },
+ align: (center + horizon, left + horizon),
+ badge(numbering("01", i + 1)),
+ text(size: tsz, weight: "semibold", ch),
+ ))
+ if two-col {
+ let mid = calc.ceil(items.len() / 2)
+ v(0.5em)
+ grid(
+ columns: (1fr, 1fr),
+ gutter: 1.5em,
+ stack(spacing: 1.6em, ..items.slice(0, mid)),
+ stack(spacing: 1.6em, ..items.slice(mid)),
+ )
+ } else {
+ v(1em)
+ stack(spacing: 2.4em, ..items)
+ }
+ }
+ ]
+}
+
+#let image-slide(body: none, img: none) = {
+ // An image slide without an image is a spoofed full-bleed exemption: the
+ // page would carry arbitrary body content while the checker skips it.
+ if img == none {
+ panic("image-slide: img is required; use xwysyy-slide for text-only pages")
+ }
+ touying-slide-wrapper(self => {
+ self = utils.merge-dicts(
+ self,
+ config-page(
+ background: img,
+ margin: (x: 0em, y: 1.4em),
+ ),
+ )
+ set text(fill: self.colors.neutral-dark, size: 1.4em)
+ set image(width: 100%, height: auto)
+ touying-slide(self: self, {
+ _page-manifest("image")
+ align(left + bottom,
+ align(
+ center,
+ block(
+ fill: self.colors.neutral-lighter,
+ if body != none {
+ line(length: 100%, stroke: self.colors.neutral-dark)
+ v(-0.85em)
+ body
+ v(-0.85em)
+ line(length: 100%, stroke: self.colors.neutral-dark)
+ }
+ )
+ )
+ )
+ })
+ })
+}
+
+#let xwysyy-pre(
+ aspect-ratio: "16-9",
+ theme: "sky",
+ font: ("Times New Roman", "Noto Serif CJK SC"),
+ heading-font: ("Libertinus Sans", "Noto Sans CJK SC"),
+ code-font: ("Maple Mono", "Noto Sans Mono CJK SC"),
+ lang: "en",
+ ..args,
+ body,
+) = {
+ let t = _resolve-theme(theme)
+ _theme-state.update(t)
+ set text(
+ font: font,
+ lang: lang,
+ size: 5.5mm,
+ weight: "semibold",
+ style: "normal",
+ )
+ show: touying-slides.with(
+ config-page(
+ paper: "presentation-" + aspect-ratio,
+ margin: (top: 4.35em, x: 1em, bottom: 1.4em)
+ ),
+ config-common(
+ slide-fn: xwysyy-slide,
+ new-section-slide-fn: new-section-slide,
+ frozen-counters: (counter(figure), counter(math.equation)),
+ ),
+ config-colors(
+ primary: t.sky,
+ neutral-lighter: t.skyll,
+ neutral-lightest: t.paper,
+ neutral-dark: t.sea,
+ neutral-darkest: black,
+ ),
+ config-store(
+ title: none,
+ heading-font: heading-font,
+ ),
+ config-page(
+ fill: t.page-fill,
+ ),
+ ..args,
+ )
+
+ show: xwysyy-elements.with(
+ code-font: code-font,
+ t-sea: t.sea,
+ t-sky: t.sky,
+ t-skyll: t.skyll,
+ t-paper: t.paper,
+ )
+
+ body
+}
diff --git a/packages/preview/xwysyy/0.5.0/src/themes.typ b/packages/preview/xwysyy/0.5.0/src/themes.typ
new file mode 100644
index 0000000000..dd1c300639
--- /dev/null
+++ b/packages/preview/xwysyy/0.5.0/src/themes.typ
@@ -0,0 +1,95 @@
+// Theme color palettes, shared theme state, and inline highlight macros.
+
+#let themes = (
+ sky: (
+ sea: rgb("#3b60a0"),
+ sky: rgb("#bdd0f1"),
+ skyll: rgb("#f4f9ff"),
+ paper: rgb("#f5f6f8"),
+ page-fill: white,
+ ),
+ sunset: (
+ sea: rgb("#970014"),
+ sky: rgb("#D8A6A2"),
+ skyll: rgb("#FFF8F6"),
+ paper: rgb("#f5f6f8"),
+ page-fill: rgb("#fffefd"),
+ ),
+ forest: (
+ sea: rgb("#1f5d45"),
+ sky: rgb("#a8d5ba"),
+ skyll: rgb("#f5fbf7"),
+ paper: rgb("#f7faf8"),
+ page-fill: white,
+ ),
+ midnight: (
+ sea: rgb("#1f2a44"),
+ sky: rgb("#8fa8d8"),
+ skyll: rgb("#f7faff"),
+ paper: rgb("#f7f8fb"),
+ page-fill: white,
+ ),
+ violet: (
+ sea: rgb("#5a3e85"),
+ sky: rgb("#c7b7e8"),
+ skyll: rgb("#faf7ff"),
+ paper: rgb("#f8f6fb"),
+ page-fill: white,
+ ),
+ graphite: (
+ sea: rgb("#31343a"),
+ sky: rgb("#b9c0c9"),
+ skyll: rgb("#f8f9fa"),
+ paper: rgb("#f7f7f5"),
+ page-fill: white,
+ ),
+)
+
+#let _theme-required-fields = (
+ "sea",
+ "sky",
+ "skyll",
+ "paper",
+ "page-fill",
+)
+
+#let _resolve-theme(theme) = {
+ if type(theme) == str {
+ themes.at(theme)
+ } else if type(theme) == dictionary {
+ for field in _theme-required-fields {
+ if theme.at(field, default: auto) == auto {
+ panic("xwysyy-pre theme dictionary is missing field `" + field + "`")
+ }
+ }
+ theme
+ } else {
+ panic("xwysyy-pre theme must be a string name or a dictionary")
+ }
+}
+
+// Default theme colors (sky)
+#let sea = themes.sky.sea
+#let sky = themes.sky.sky
+#let skyll = themes.sky.skyll
+#let paper = themes.sky.paper
+
+// Theme state for dynamic components
+#let _theme-state = state("xwysyy-theme", themes.sky)
+
+// Bold recipe shared by `strong` and the colored bold macros: 1.1em + true
+// bold weight, no stroke (stroking fills the CJK glyph counters and looks
+// muddy). 0.03em tracking opens the run internally; 0.05em hair spacing on
+// both sides keeps it off the neighbors (non-weak: weak spacing would swallow
+// adjacent Latin word spaces); the 0.035em baseline drop re-centers the
+// enlarged CJK glyphs optically.
+#let _bold-run(body, fill: none) = {
+ set text(fill: fill) if fill != none
+ h(0.05em)
+ text(size: 1.1em, weight: 700, tracking: 0.03em, baseline: 0.035em, body)
+ h(0.05em)
+}
+#let red(body) = text(fill: rgb("#9c1d11"), body)
+#let bred(body) = _bold-run(body, fill: rgb("#9c1d11"))
+#let yellow(body) = text(fill: rgb("#d9ad20"), body)
+#let byellow(body) = _bold-run(body, fill: rgb("#d9ad20"))
diff --git a/packages/preview/xwysyy/0.5.0/template/main.typ b/packages/preview/xwysyy/0.5.0/template/main.typ
new file mode 100644
index 0000000000..dcee4c28cc
--- /dev/null
+++ b/packages/preview/xwysyy/0.5.0/template/main.typ
@@ -0,0 +1,37 @@
+#import "@preview/xwysyy:0.5.0": *
+
+#show: xwysyy-pre.with(
+ theme: "sky",
+ config-info(
+ title: [xwysyy Starter Deck],
+ subtitle: [Academic slides in Typst],
+ author: " ",
+ date: datetime.today(),
+ institution: " ",
+ ),
+)
+
+#title-slide()
+
+#outline-slide()
+
+= Motivation
+
+== One Minute Setup
+
+Use `typst init @preview/xwysyy:0.5.0` to create this deck, then edit `main.typ`.
+
+#textbox(
+ [*Reusable components*
+
+ `textbox`, #red[red highlights], #yellow[yellow highlights], tables, code blocks, and touying animations share one theme.],
+
+ [*Theme control*
+
+ Switch built-in themes with `theme: "sunset"` or pass a custom color dictionary directly.],
+)
+
+#end-slide(
+ title: [Thank You!],
+ body: [Questions?],
+)
diff --git a/packages/preview/xwysyy/0.5.0/thumbnail.png b/packages/preview/xwysyy/0.5.0/thumbnail.png
new file mode 100644
index 0000000000..3675e91a2a
Binary files /dev/null and b/packages/preview/xwysyy/0.5.0/thumbnail.png differ
diff --git a/packages/preview/xwysyy/0.5.0/typst.toml b/packages/preview/xwysyy/0.5.0/typst.toml
new file mode 100644
index 0000000000..301f74dcfe
--- /dev/null
+++ b/packages/preview/xwysyy/0.5.0/typst.toml
@@ -0,0 +1,18 @@
+[package]
+name = "xwysyy"
+version = "0.5.0"
+entrypoint = "xwysyy.typ"
+authors = ["xwysyy"]
+license = "MIT"
+description = "Create academic slides with touying."
+repository = "https://github.com/xwysyy/xwysyy-typst"
+keywords = ["slides", "presentation", "academic", "touying", "theme"]
+categories = ["presentation", "components"]
+disciplines = ["computer-science"]
+compiler = "0.15.0"
+exclude = []
+
+[template]
+path = "template"
+entrypoint = "main.typ"
+thumbnail = "thumbnail.png"
diff --git a/packages/preview/xwysyy/0.5.0/xwysyy.typ b/packages/preview/xwysyy/0.5.0/xwysyy.typ
new file mode 100644
index 0000000000..876d101f2e
--- /dev/null
+++ b/packages/preview/xwysyy/0.5.0/xwysyy.typ
@@ -0,0 +1,9 @@
+// xwysyy.typ — facade re-exporting every submodule.
+// Users do `#import "xwysyy.typ": *` to pull in themes, slides, and layout components.
+
+#import "@preview/physica:0.9.8": *
+
+#import "src/themes.typ": *
+#import "src/elements.typ": *
+#import "src/slides.typ": *
+#import "src/layout.typ": *
