Hearth Portable ASP.NET Web Server

https://github.com/ASP-NET-Web-Forms-Club/Hearth-ASPNET-Server

A lightweight, high performance, portable web server designed for ASP.NET applications. A self-contained, IIS-free host for ASP.NET Web Forms applications, built on C# 7.3 / .NET Framework 4.8. It pairs a WinForms launcher and multi-site manager with a console / Windows-Service worker process.

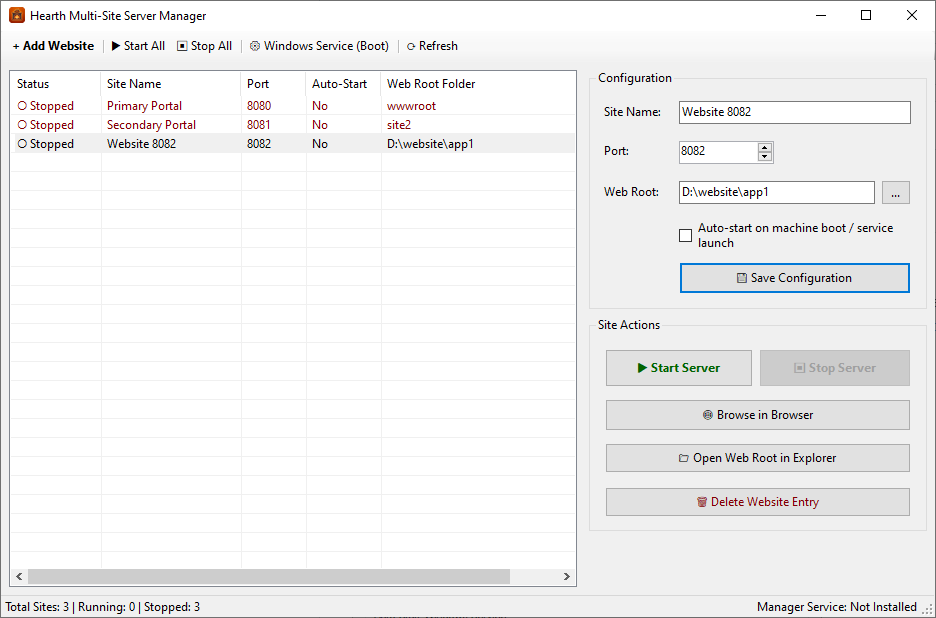

Screenshot - The Site Manager - Handling Multiple Sites

Screenshot - Single Site Launcher

In What Circumstances is Hearth Portable ASP.NET Web Server Useful Compared to IIS?

While Windows (Pro/Enterprise/Server) includes IIS, IIS has distinct characteristics that make it unsuitable or cumbersome in specific scenarios:

Dimension	Full Windows IIS	Hearth Portable ASP.NET Server
Portability & Footprint	System component requiring OS feature activation (dism / Windows Features). Often locked down or absent in Windows Home editions, embedded Windows, or restricted corporate machines.	Zero install / fully portable. Run from a USB stick, a local folder, or bundled with an installer.
Administrative Rights	Requires Administrator privileges to configure sites, change bindings, edit applicationHost.config, and register app pools.	Runs under standard user rights (via loopback http://localhost:<port>/ or 127.0.0.1:<port>/), requiring no admin elevation unless installing as a Windows service or binding http://+:port/.
Isolation & Clean Teardown	Global system-wide service; configuration drifts inside applicationHost.config; file permission issues with IIS_IUSRS.	Complete directory and process encapsulation. Stop or delete the folder, and zero residue remains on the host machine.
App-in-a-Box / Self-Contained Desktop/Edge Appliance	Difficult to ship a pre-packaged desktop app that uses ASP.NET Web Forms as the UI / local server (e.g. POS systems, medical devices, internal network kiosk appliances).	Ideal for embedded web-based desktop tools. You can bundle Host.exe + Web Forms + SQLite/LocalDB and run it seamlessly like an Electron or desktop app backend.
Raw Pipeline Throughput	Heavier pipeline (HTTP modules, request filtering, Windows Auth modules, ETW logging, WAS).	16% faster raw throughput than single-worker IIS in dynamic workloads (14,980 vs 12,881 req/s) because it goes straight from HttpListener into HttpRuntime.ProcessRequest with minimal middleware overhead.
Rapid Dev / Multi-tenant Sandboxing	Managing 10 different sites in IIS requires managing 10 app pools and site records in global IIS config.	Hearth Manager (manager_sites.json) lets you launch, stop, monitor, or watchdog multiple separate Web Forms instances dynamically by port.

Solution layout

Project	Output	Role
HearthPortableWebServer.Common	.dll	Shared IPC names, server.config reader/writer, ACL'd named sync primitives.
HearthPortableWebServer.Hosting	.dll	The ASP.NET runtime: HttpListener + custom HttpWorkerRequest feeding HttpRuntime.ProcessRequest. Loaded into the isolated worker AppDomain.
HearthPortableWebServer.Host	.exe	Console / Windows-Service worker process. Owns the worker AppDomain lifecycle.
HearthPortableWebServer.Launcher	.exe	WinForms UI: configure, start/stop, browse, install/uninstall service (single-site mode).
HearthPortableWebServer.Manager	.exe	WinForms & Windows Service multi-site manager: orchestrate multiple isolated web applications, manage ports/roots, system tray, auto-start on boot, and debounced window persistence.
HearthPortableWebServer.StressTest	.exe	Load generator: concurrency sweep, throughput + latency percentiles, writes a timestamped log report.

All projects build to a shared build\<Configuration>\ folder.

Architecture (IIS-equivalent worker processes)

Single Worker Process (Host)

 Launcher.exe (WinForms)              Host.exe (separate process)
 ────────────────────────            ─────────────────────────────
  port / root config                  default AppDomain
  Start ─► launch detached ─────────► ServerController
  Stop  ─► signal named event ──────►   │  ApplicationHost.CreateApplicationHost
  status ◄─ named mutex                 ▼
                                      ASP.NET worker AppDomain  ◄── "w3wp.exe" equivalent
                                        AspNetHost  (MarshalByRefObject)
                                        HttpListener  (32 concurrent accepts)
                                        ListenerHttpWorkerRequest ─► HttpRuntime.ProcessRequest

• Single worker process — one dedicated ASP.NET AppDomain created via ApplicationHost.CreateApplicationHost, exactly how IIS isolates an app pool.
• Concurrency — an async HttpListener accept loop keeps 32 outstanding accepts and dispatches each request on the thread pool; Server GC is enabled.
• UI independence — the Host is a separate, detached process. Closing the launcher leaves the server running; it is stopped only by an explicit signal, Ctrl+C, or the Service Control Manager.

Multi-Site Manager Architecture

                 HearthPortableWebServer.Manager.exe
               (WinForms Dashboard or Session 0 Service)
                                │
        ┌───────────────────────┼───────────────────────┐
        ▼                       ▼                       ▼
  Host.exe (Port 8080)    Host.exe (Port 8081)    Host.exe (Port 8082)
   AppDomain: Site #1      AppDomain: Site #2      AppDomain: Site #3
  (wwwroot / isolated)    (site2 / isolated)      (crm / isolated)

• True Process Isolation — Spawns and manages dedicated, independent Host.exe worker processes for each website entry, running concurrently without interference or cross-talk.
• Zero Host Modifications — Builds seamlessly on top of Hearth's existing IPC primitives (Global\HearthPortableWebServer_Running_<port> and Shutdown_<port>), keeping the battle-tested core server engine 100% intact.
• Session 0 Pre-Login Service — Can run headless at machine boot as HearthManagerService before user login, with an active watchdog that auto-starts designated sites and auto-heals unexpected terminations.
• Permission Inheritance — Automatically configures directory ACLs for Authenticated Users so SQLite files and uploads created by the background service (LocalSystem) remain writable by interactive users.
• Debounced Layout Persistence — Automatically monitors window adjustments and launches a 3-second countdown timer (resetting on continuous movement), persisting window size and coordinates to window_layout.txt with multi-monitor sanity restoration.

Usage

Multi-Site Manager (GUI & Windows Service)

Run HearthPortableWebServer.Manager.exe:

• Multi-Site Dashboard: View real-time status (● Running / ○ Stopped) for all configured ASP.NET websites.
• Per-Site Controls: Dedicated Start Server, Stop Server, Browse Web App, and Open Web Root buttons for each application entry.
• Global Controls: Start All Sites and Stop All Sites for bulk operations.
• Add & Configure Websites: Specify custom Site Name, dedicated HTTP Port, and relative or absolute application folder path (manager_sites.json). Auto-migrates existing Settings.txt or server.config on first launch.
• System Tray Minimization: Closing or minimizing with running servers gives the option to minimize to the notification area with tray menu controls.
• Debounced Window Layout Saving: Automatically detects resize or reposition events and triggers a 3-second countdown timer. If you continue adjusting the window, the timer resets; when adjustments cease for 3 seconds, your window location and size are saved to window_layout.txt and restored on the next startup.
• Windows Service Setup (Session 0 Boot): Click ⚙ Windows Service (Boot) to install HearthManagerService. Runs headless on machine boot before user login, auto-starts designated websites, and automatically restores them if a process terminates unexpectedly.

HearthPortableWebServer.Manager.exe              (launches interactive WinForms dashboard)
HearthPortableWebServer.Manager.exe --service    (runs as background Windows Service via SCM)

Launcher (Single-Site GUI)

Run HearthPortableWebServer.Launcher.exe:

• Port (default 8080) and Web root (default <startup path>\wwwroot).
• Start / Stop Web Server, Browse Web App.
• Install / Uninstall Service (auto-start with Windows; prompts for UAC).

Closing the launcher while a server it started is still running prompts: [Yes] stop it, [No] leave it running in the background. A Minimize to taskbar button is also provided.

Host (command line)

HearthPortableWebServer.Host.exe --port 8080 --root "C:\site\wwwroot"
HearthPortableWebServer.Host.exe --stop --port 8080
HearthPortableWebServer.Host.exe --install --port 8080 --root "C:\site\wwwroot"   (admin)
HearthPortableWebServer.Host.exe --uninstall                                      (admin)
HearthPortableWebServer.Host.exe --service        (used by the SCM; reads server.config)

Stress test

Run HearthPortableWebServer.StressTest.exe. With no --url it asks for the target host interactively at runtime (accepts localhost:8080, host:port, or a full URL); pass --url to script it. It ramps concurrency through several levels, measures throughput and latency percentiles at each, prints the peak req/sec, and writes a timestamped report into stress-logs\.

HearthPortableWebServer.StressTest.exe
HearthPortableWebServer.StressTest.exe --url http://localhost:8080/ --duration 10 --levels 1,2,4,8,16,32,64,128,256

Binding & permissions

The listener tries http://+:<port>/ (all interfaces, IIS-like) first and falls back to loopback (localhost / 127.0.0.1) when not elevated. Service install and the all-interfaces binding require Administrator rights.

Build

msbuild HearthPortableWebServer.sln /p:Configuration=Release

Verified behavior

• ASP.NET Web Forms page renders with ViewState; server-side button postback updates a Label (full page lifecycle).
• api.aspx echoes GET query and POST form values.
• Static files served with ETag / Last-Modified caching headers.
• 200 concurrent requests → 200 × HTTP 200 in ~0.12 s.
• --stop signal shuts the worker down gracefully and frees the port.
• Manager orchestrates multiple concurrent Host.exe instances across distinct ports (8080, 8081, etc.) with individual start/stop lifecycle management.
• Manager automatically debounces and restores window layout coordinates (window_layout.txt) via a 3-second timer.

Performance & load testing

Read more details report at: Wiki - Performance Benchmark

The same ASP.NET Web Forms application was load-tested twice on the same machine — once hosted by this portable server, once by the Windows 11 built-in IIS (single worker process) — using HearthPortableWebServer.StressTest. Each run ramped concurrency from 1 → 256 clients, 10 s measured per level (3 s warmup), with every response body fully read.

Test machine (both client and server ran here, over loopback):

Component	Spec
CPU	Intel Core i7-4770S @ 3.10 GHz (Turbo 3.90 GHz), 4 cores / 8 logical
Cache	L1 256 KB · L2 1.0 MB · L3 8.0 MB
RAM	24 GB DDR3
Storage	Samsung SSD 870 EVO 500 GB
OS	Windows 11

Throughput comparison (requests/second)

Concurrent clients	Portable server	IIS (1 worker)
1	3,346	2,825
2	6,088	4,698
4	9,847	7,777
8	13,460	10,783
16	14,494	12,349
32	14,700	12,456
64	13,849	12,683
128 (peak)	14,980	12,881
256	12,696	12,208

Summary	Portable server	IIS (1 worker)
Peak throughput	≈ 14,980 req/s (≈ 899K req/min)	≈ 12,881 req/s (≈ 773K req/min)
Peak at concurrency	128	128
Failures	0	0
Total requests served	1,034,924	887,020

On this dynamic workload the portable server was ~16 % faster at peak and faster at every concurrency level, with lower latency — because it runs a far leaner request pipeline (no native-module chain, no access logging, no process-management overhead), while sharing the same underlying HTTP.sys kernel driver as IIS.

The full per-level latency breakdown (p50/p90/p95/p99/max) is published on the project wiki. This README keeps the summary only.

What this tells us

Both servers show identical behavior under load: throughput saturates around concurrency 8–16, peaks at 128, eases off at 256, and neither drops a single request. The latency growth past saturation is textbook Little's Law. In short — it behaves like a real server under load.

While the portable server intentionally does not match IIS's full feature set (kernel output caching, web gardens, request filtering, TLS/auth modules, logging, health monitoring, app-pool recycling…), it fully delivers on its core mission: an efficient web server that yields the output — here, matching and slightly exceeding stock single-worker IIS in raw throughput.

Caveats. Client and server shared the same 8 logical CPUs over loopback, so both ceilings are understated; a second-machine test over the network would raise both. The ~16 % gap reflects stock/default configuration of each (e.g. IIS logging enabled) and a non-cacheable dynamic page — a cacheable response would let IIS's kernel cache pull far ahead.
