Every key paints within a frame: typing echoes in 2 ms, session switches are instant, and git-backed views never freeze the UI

[webdevcody]

Every action in the TUI was timed against the real app, and everything that kept a key from painting inside a frame was fixed: a character typed at an agent echoes in 2.3 ms where it took 19.8, no scripted step waits more than 6 ms for its frame (12 of 123 used to wait over 16), and on a ten-thousand-file checkout g no longer freezes the UI for a quarter of a second. Peak memory is flat to slightly lower — the pane's screen cache got faster by holding less.

Contents: 📊 Scorecard · ✨ What changed · 📸 Screenshots · 🧭 Where the time goes · ⚠️ Risk · 🔧 Technical overview · 📝 Notes

📊 Scorecard

Release build, this repository as the checkout, a stand-in agent with a full 1 MB ring. Paint is key → the frame that shows it; settle is key → the screen in its final state; frozen is how long the key's handler held the whole event loop.

Metric	Before	After	Δ	Measured with
Typed character → echo painted, LOCKED PANE	19.8 ms	2.3 ms	−88 %	make perf BIN=target/release/nebula
Session switch, j/k or click (settle)	18.5–20.7 ms	1.0–1.4 ms	−93 %	〃
] attention jump · workspace switch (settle)	22.3 · 19.2 ms	1.6 · 1.7 ms	−92 %	〃
Archive · delete a session (settle)	29.0 · 20.2 ms	1.1 · 1.7 ms	−95 %	〃
g DIFF VIEWER: frozen → paint	44.1 ms frozen	2.0 ms	−96 %	〃
g DIFF VIEWER: first diff on screen	45.9 ms	13.2 ms	−71 %	〃
↓ to the next file's diff	12.5 ms	1.2 ms	−90 %	〃
f · b open (paint; the list lands at ~13 ms as before)	13.4 · 13.7 ms frozen	1.3 · 2.0 ms	−88 %	〃
F grep, per character typed	24.3 ms frozen	0.0 ms	gone	〃
Shift+G repo page	11.3 ms	1.1 ms	−90 %	〃
Startup → first frame with the DAEMON's snapshot	40.6 ms	26.1 ms	−36 %	〃
Worst paint in the scenario	45.9 ms	6.0 ms	−87 %	〃
Steps over one 16 ms frame	12 / 123	0 / 123		〃
Peak RSS, TUI	55.6 MB	54.0 MB	−1.6 MB	ps -o rss, sampled 2×/s by the harness
Peak RSS, DAEMON	21.7 MB	19.7 MB	−2.0 MB	〃

The same run against a clone of a ten-thousand-file checkout, in the dev build make dev runs — where git has real work to do and this crate is unoptimised:

Metric	Before	After	Measured with
g DIFF VIEWER	262 ms frozen	list in 1.4 ms, first diff at 59 ms	PERF_REPO=… make perf
↓ to the next file's diff	54 ms frozen	0.7 ms	〃
f · b open	76 · 98 ms frozen	0.8 · 1.3 ms	〃
F grep, per character typed	~370 ms frozen	0.0 ms	〃
Filter typing in f · b, per character	27 ms	5–8 ms	〃

	Before	After
Unit tests, TUI + matcher	927	949	cargo test -p nebula-tui -p nebula-fuzzy
Unit tests, DAEMON	278	280	cargo test -p nebula-daemon
e2e_tui	9 pass, 2 fail	11 pass	make ci — the two failed on untouched main too, see Notes
Lines (net)		+3734 −570, 36 files	git diff --stat origin/main
PROTOCOL VERSION	unchanged	unchanged	no shared type moved

One number that reads worse and is not: grep's results now land ~66 ms after the last character (a 40 ms debounce, then git), where they used to be on screen with each character — because each character froze the UI until they were. A nine-letter word was nine freezes.

✨ What changed

• Typing at an agent is immediate — three fixes on one path.
  • Frames are paced by a token bucket instead of a fixed 16 ms tick: a key's frame and its answer's go out 2 ms apart; sustained PTY output still paints at 60 fps.
  • A key that only goes to the PTY paints no frame of its own — the identical frame it used to paint was what the echo then queued behind.
  • The DAEMON sends PTY output that breaks a silence at once; the 5 ms coalescing hold still applies to a stream, exactly as before.
• g, f, b and F open on the keypress and never freeze the UI.
  • The modal is up at once and fills in when git status / git ls-files answer; what you type meanwhile is kept and applied.
  • g opens on the list the changed-files badge already has, so the first diff is being read while the list is checked.
  • ↓ in the DIFF VIEWER finds the next diff already read; up to 2 MB of diffs are kept while the modal is open and freed when it closes.
  • git grep waits 40 ms for the next character, streams, and is killed at 200 hits or when the query moves on.
• Switching back to a session is instant.
  • The last six screens shown are kept (it was two), inside half the memory two were allowed.
  • A screen with a long history keeps the screen and lets the scrollback go; scrolling up in it replays the ring once and lands where the wheel was headed.
• Rename, archive, unarchive, delete and close happen on the keypress.
  • The row changes at once; if the DAEMON refuses, it goes back and the footer says why.
  • A delete's row cannot flicker back from an upsert that was already on its way.
• Nothing else on a key path waits either.
  • Opening a link or the repo page (Shift+G), a Ghostty tab (Shift+C), and copying a selection start their process and move on.
  • The footer's memory readout no longer runs ps on the UI loop every five seconds.
  • FILE TABS an agent opens with nebula open read and highlight their files off the loop.
• It is measured, not felt — make perf.
  • NEBULA_PERF_LOG=<file> turns on the INPUT LATENCY PROBE; off, it costs one Option check per event. It never records a typed character.
  • The harness drives the real TUI through every panel, modal and verb and prints handler · paint · settle · echo per step, plus peak RSS.
  • PERF_REPO=<path> measures against a large checkout; python3 scripts/perf/report.py BEFORE AFTER compares two runs.
• Unchanged. Every key, every screen and every setting. The two loading states below are the only new pixels, and on an ordinary checkout they last under a frame.

📸 Screenshots

The new states are transient by design, so both shots hold git still for a few seconds (NEBULA_SHOT_SLOW_GIT_MATCH, a new knob on the SCREENSHOT HARNESS) — this is what a cold git on a large checkout shows for a moment.

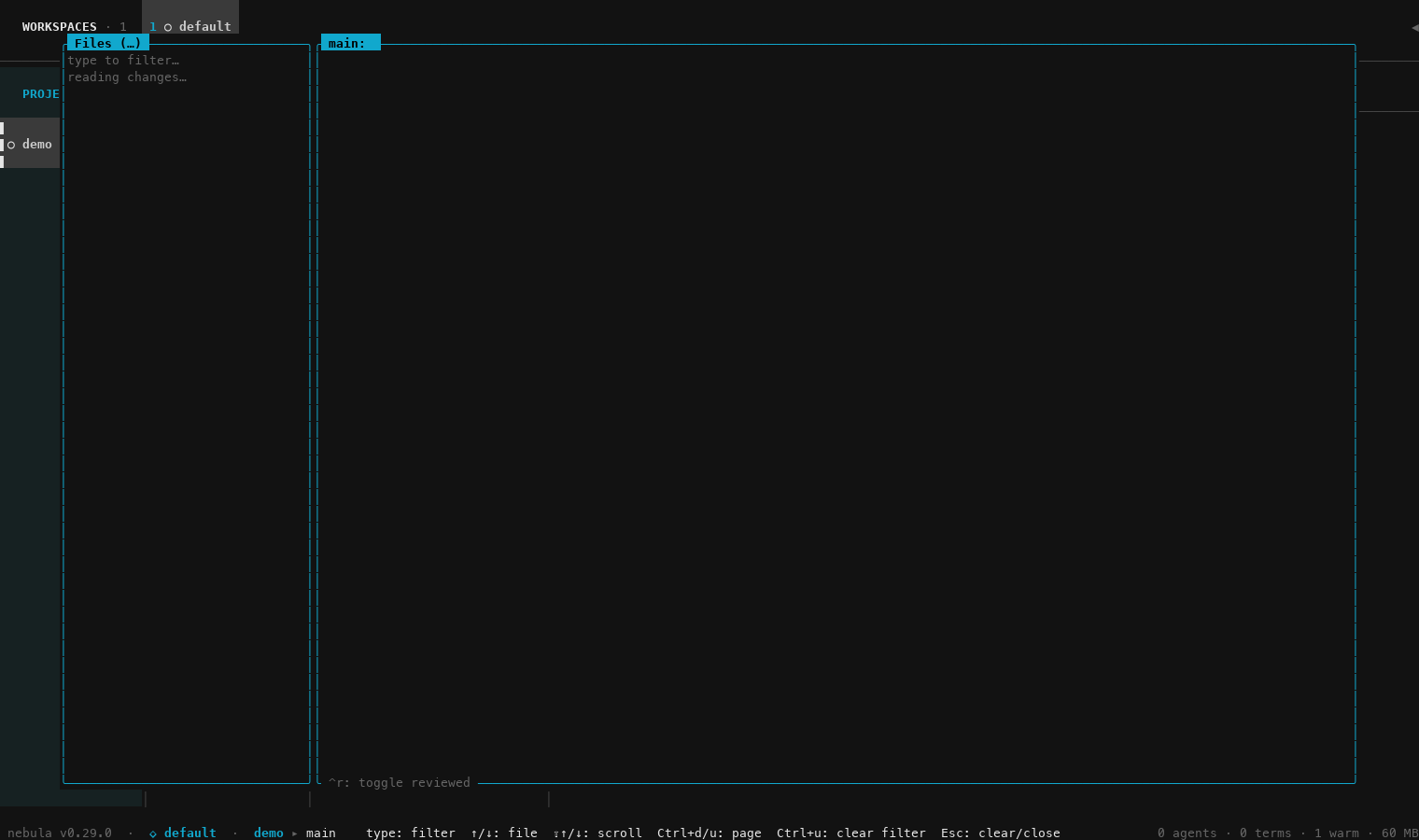

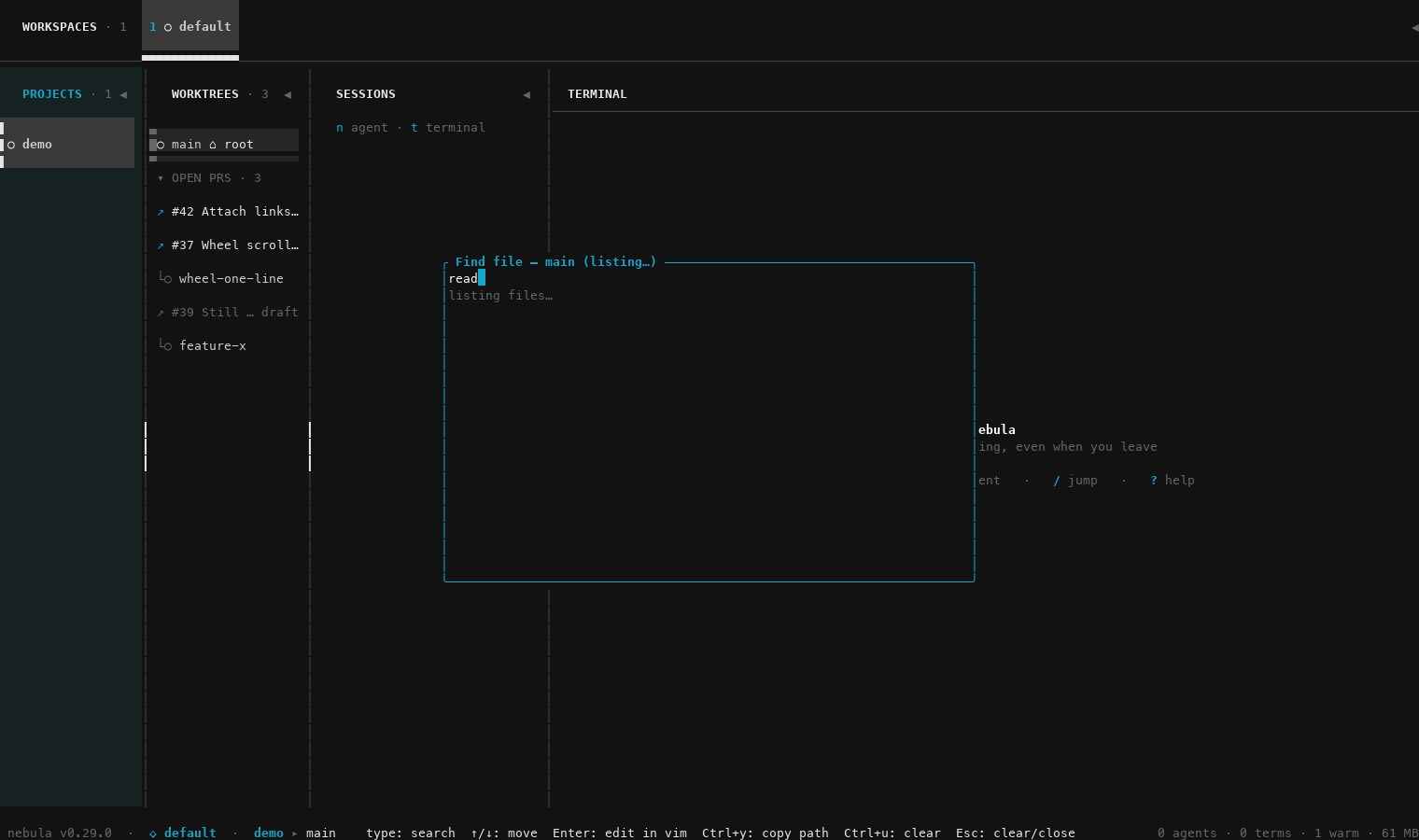

f: the FILE FINDER is up and has taken read before git ls-files has answered	g: the DIFF VIEWER ahead of a cold git status

And what make perf prints — the top of the release run the scorecard is taken from:

startup (m-final-release): first frame 21.0 ms, with the daemon's snapshot 26.1 ms
memory  (m-final-release): peak RSS — TUI 54.0 MB, daemon 19.7 MB
step                              key            handler   paint  settle    echo  frames  max draw
focus worktrees                   l                  0.0     0.7     0.7       -       1       0.7
worktree down                     j                  0.0     0.7     0.7       -       4       0.7
new session picker                n                  0.2     0.9     0.9       -       1       0.8
open diff                         g                  0.0     2.0    13.2       -       4       2.0
diff: next file                   Down               0.0     1.2     1.2       -       3       1.2
grep: type                        text:ATTACH_       0.0     3.9    66.1       -       3       1.2
archive session                   a                  0.1     1.1     1.1       -       4       1.0
delete: confirm                   y                  0.3     1.7     1.7       -       3       1.3
…
paint  p50    1.3 ms   max    6.0 ms   steps over 16 ms: 0/123

🧭 Where the time goes

flowchart LR
  subgraph echo["A character typed in a LOCKED PANE · 19.8 ms, now 2.3 ms"]
    K([key]) -->|"its own frame · was 1 ms plus a 16 ms cap behind it, now no frame"| I["Input to the DAEMON"]
    I -->|"PTY write and echo · unchanged, under 1 ms"| P["pty pump"]
    P -->|"coalescing hold · was 5 ms, now 0 after a quiet spell"| O["Output to the TUI"]
    O -->|"wait for the frame cap · was up to 16 ms, now a 2 ms gap"| F([echo painted])
  end
  subgraph diff["g on a ten-thousand-file checkout · 262 ms frozen, now 1.4 ms"]
    G([key]) -->|"was git status, rev-parse and git diff inline"| H["handler · 0.1 ms"]
    H -->|"opens on the badge's file list"| M([modal painted · 1.4 ms])
    H -.->|"BACKGROUND READ"| B["blocking pool: git diff, then git status"]
    B -.->|"ticketed answer"| L["land_view_answer"]
    L --> C([first diff · 59 ms])
  end
  classDef faster fill:#bbf7d0,stroke:#166534,color:#111
  classDef gone fill:#fecaca,stroke:#991b1b,color:#111
  class P,O,H faster
  class B gone

Loading

Red is work that left the event loop; green is a stage that got shorter.

⚠️ Risk

🎯 Attack surface

• NEBULA_PERF_LOG — the TUI creates and truncates the file it names. Reached by whoever controls the TUI's environment, who can already run anything as the user. Held by: it is read once at start, writes with the user's own permissions, and logs timings, overlay and FOCUS names, session ids, and key classes — a plain or shifted character is always key:char, under test. Not held: a chord is named (key:C-q), and a run left on by accident grows a file until the TUI quits.
• The DAEMON gains nothing. No new ClientRequest, route, exec or file. SendCloudMessage runs the same claude invocation it did, on its own task instead of the connection's.
• The TUI's git is the same git. Every read still goes through git_diff::git_command (GIT_OPTIONAL_LOCKS=0); what changed is the thread it runs on. The streaming grep passes the query as an -e argument exactly as the inline one did.

Verdict: 🟡 Merge with care — no new surface and the gate is green, but it moves the frame loop, the PTY byte path and the vendored terminal emulator's scrollback at once, and a regression in any of those is felt on every keystroke.

	Level	Why
🔒 Security & production	Low	one opt-in env var that writes a timing log and never a typed character; no protocol, store or DAEMON surface change
⚡ Performance	Medium	it is the hot path: the draw cadence, the DAEMON's output flush, the pane cache. Bounded by construction — the bucket refills one frame per 16 ms so sustained output costs what it did plus two frames per burst, a stream still flushes once per 5 ms, the cache budget halved — and measured flat on RSS, but only on one machine
🧩 Fit with the codebase	Medium	BACKGROUND READS follow the per-feature channel pattern (issues_tx, branch_switch.tx), and optimistic rows reuse handle_server_event rather than a second code path; the departures are a fifth workspace crate that exists for a dev-profile override, and two accessors added to the vendored vt100

Rollback: git revert of the merge undoes all of it — no PROTOCOL VERSION bump, no store migration, no config key. What it does not undo: a running DAEMON keeps the new flush behaviour until it is restarted, and the two images stay on pr-assets.

🔧 Technical overview

• Mechanism. The event loop is one task, so a handler that shells out freezes paint, PTY output and the next key. Handlers now only do bookkeeping: a view holding a view_jobs::Jobs handle runs its git or disk read on the blocking pool and the main loop lands the answer by ticket (land_view_answer), dropping any nobody is waiting for; a view built without a handle — every unit test — reads inline through the same parsers. While a read is out the pane keeps what it showed for 60 ms, then says loading…. Optimistic verbs hand handle_server_event the very upsert or removal the DAEMON is about to send, with the old row riding a PendingIntent::Undo.
• Files.
  • crates/nebula-tui/src/event_loop/pacing.rs — the token bucket (BURST 3, MIN_GAP 2 ms, one token per 16 ms, never sooner than the draw itself took).
  • crates/nebula-tui/src/view_jobs.rs — Jobs, Answer, tickets, Cancel, the stale grace.
  • crates/nebula-tui/src/git_diff.rs — read_listing, fill_view (reconciles the badge's list with the fresh one, reader kept in place), the cache and read-ahead in load_selected_diff / land_diff.
  • crates/nebula-tui/src/event_loop/optimistic.rs — the five verbs, App::deleting tombstones, undo / settled.
  • crates/nebula-tui/src/app.rs — stash_term (six screens, one 400 k-cell budget, histories go before screens), AttachedTerm::drop_history, apply_output skipping bytes a replay covered.
  • crates/nebula-tui/src/event_loop.rs — typing_into_pane, rehydrate_history, keep_changed_files, spawn_and_reap, the landing functions.
  • crates/nebula-daemon/src/pty/mod.rs — flush_deadline: the hold counts from the last flush, not the first pending byte.
  • crates/nebula-fuzzy/ — the matcher, moved whole, plus a reusable Matcher with an allocation-free reject pass; [profile.dev.package.nebula-fuzzy] opt-level = 3.
  • vendor/vt100/src/{grid,screen}.rs — scrollback_rows() and clear_scrollback(), marked NEBULA PATCH.
  • crates/nebula-tui/src/perf.rs, scripts/perf/ — the probe and the harness.
• Rejected. Parsing a replay's tail first to paint sooner (modes and alt-screen state live anywhere in the ring); a server-side VT grid or a snapshot request (a locked v1 decision, and a protocol bump); raising this crate's dev opt-level (it is the one edited all day — hence the tiny matcher crate instead). Still true after this PR: the first visit to a session whose screen is not kept parses its whole ring, ~20 ms in release.
• How the numbers were taken. One Mac, scripts/perf/run.sh driving the binary in a private tmux at 190×50 against an isolated DAEMON, one run per build per side; the baseline is main plus only the probe, built in its own target dir. Inputs and frames are stamped with the wall clock (macOS Instant drifts ~1.5 ms/s against it). Single runs — the git-bound rows moved ±30 % between runs on the large checkout; the frozen-versus-not rows did not.
• Gate. make ci green on the first commit: fmt, clippy, every suite — 947 TUI and matcher tests, 280 DAEMON, e2e_pty 31, e2e_tui 11. The second commit (the probe's redaction, +2 tests) ran cargo fmt --check, clippy on nebula-tui and the TUI unit tests, not the e2e suites again.

📝 Notes

• Branch is two commits on origin/main (12a31cc, v0.29.0); no conflicts.
• Restart the DAEMON to get the echo fix (make cycle): the flush change lives there. Everything else is the TUI's and applies on its next launch. No PROTOCOL VERSION bump — a new TUI works against an old DAEMON, only without that one gain.
• Two e2e_tui flows (nebula_open_from_inside_a_session_raises_the_file_tabs, tui_projects_worktrees_agents_navigation) were failing on untouched main: they waited for New session to disappear, and the NEW SESSION PICKER now ends in a task box with the same title. They follow the box by its hint line now, which also puts the async FILE TABS preview under an end-to-end test.
• The harness deletes its cloned checkout on exit and writes results to target/perf/<stamp>. scripts/shot/shot.sh still leaves $TMPDIR/nebula-shot/<pid> behind — not touched here.
