slughorn

slughorn is modern C++20 library implementing the recent OSS release of the "Slug" GPU vector graphics rendering technique by Eric Lengyel. It makes no assumptions about what graphics environment is being used (OpenGL, Vulkan, WebGL, WebGPU, DirectX, etc) and instead focuses only on simplifying the process of creating/ingesting vector data from various backends--or, alternatively, by using an HTML "Canvas-like" API directly in code--so it can be directly uploaded to the GPU as easily as possible. A backend is simply an implementation that produces Bezier curves for slughorn to process to facilitate drawing. Further code outside of slughorn draws the curves with a graphics API like OpenGL, Vulkan, WebGL, WebGPU, Metal, DirectX or similar, potentially using toolkits like but not limited to OSG / OpenSceneGraph or VSG / VulkanSceneGraph. Companion projects ( https://github.com/AlphaPixel/osgSlug ) assist with this integration.

Furthermore, slughorn provides tools for traditional "offline asset" processing (primarily in Python), as well as a glTF-compatible JSON file format.

Architecture

slughorn operates in two complementary modes. As a first-class authoring tool, it provides a Canvas-like API for building vector content directly in code — shapes, text, gradients, and composited layers — all flowing into the GPU atlas without any intermediate library. As an adapter, it bridges existing vector ecosystems (Cairo, Skia, Blend2D, NanoSVG, FreeType) into that same GPU-ready pipeline, letting you keep your current authoring workflow while gaining resolution-independent, perspective-correct GPU rendering. Most GPU vector renderers want to own the authoring; slughorn is being developed to support: bring your own source.

Current Supported Backends

• FreeType
• NanoSVG (paths & gradients)
• Skia (paths only, stroke-to-path)
• Cairo (paths only)
• Blend2D (paths only, stroke-to-path)

In addition to the above backends, slughorn provides a "native" API for authoring vector graphics inspired by the standard HTML Canvas element.

Adding support for other backends is generally as easy as using a single helper class: slughorn::CurveDecomposer. If your vector data can be reduced into simple quadratic Bezier curves, slughorn can make it render.

Supporting most of the missing Skia/Cairo/Blend2D features (gradients, patterns, text, clipping/masking) is entirely possible, it just requires time/effort. As slughorn continues to evolve, so will those backends.

Demos

Preview	Description

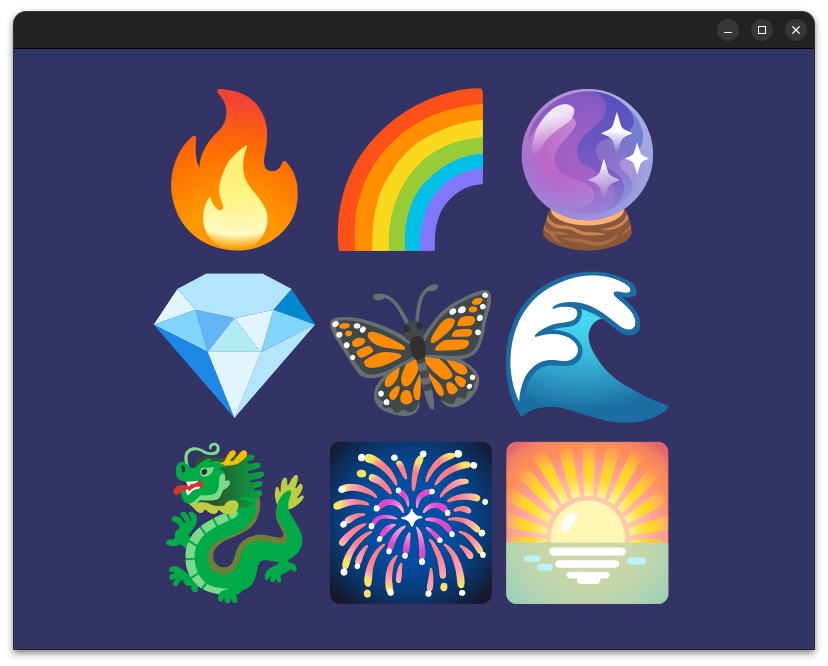

	Emoji Demonstrates loading COLRv0 and COLRv1 emojis using the slughorn/freetype.hpp backend. Each layer of the emoji is composited into its own quad and positioned relative to the base. slughorn supports all of the advanced COLRv1 features, including gradients and transforms.
	Animated Glyphs Simple, shader-driven animation applied to Slug-rendered glyph geometry, accomplished by adjusting the output positions in the vertex shader.
	Layer Effects Shows how individual layers in a CompositeShape can not only be distinguished in the shader pipeline, but also how each layer can have its own unique fragment output. From left to right: basic fill, two GLSL algorithmic fills, traditional texture lookup, and finally an animated GLSL algorithmic fill.
	Morphing Similar to the animated glyphs demo, this example shows both the shape, a simple triangle, and the debugging bounding box using the OSGSLUG_DEBUG=3 environment variable.
	2D Projection The standard orthographic-style 2D placement/rendering.
	3D Projection The same scene as the 2D Projection above, but with a traditional perspective-style view.

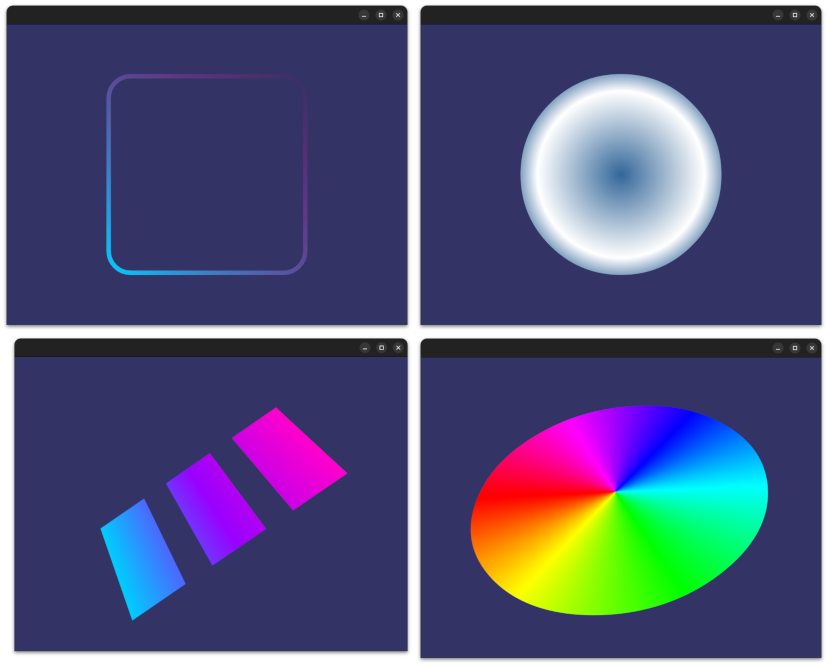

	Gradients The FreeType, NanoSVG and Canvas backends all fully support linear, radial and sweep gradient fills/strokes. Gradients can also be dynamically transformed by the GPU during rendering (though their "color stop" values are static).

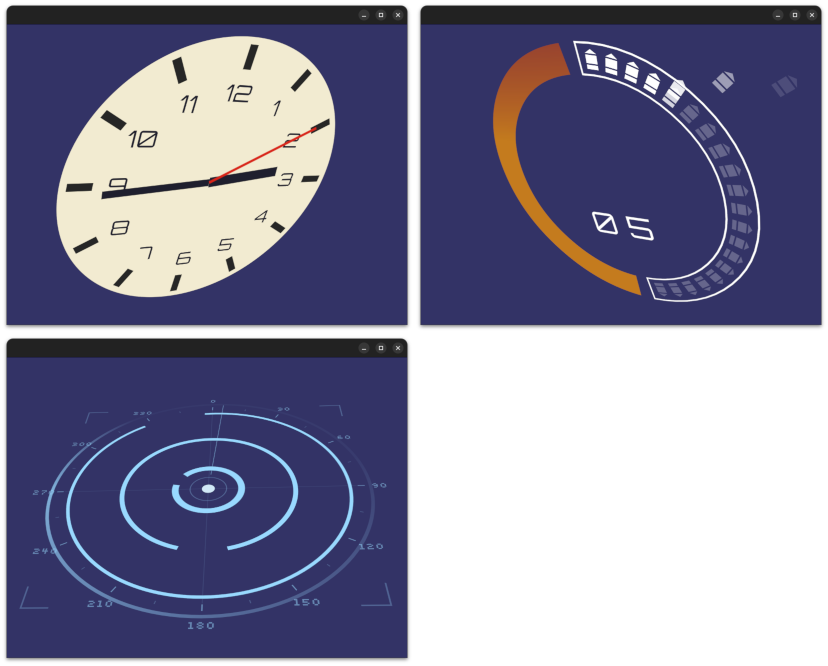

	HUD slughorn is perfect for HUD elements of any kind in 2D, 3D, or somewhere dynamically in between.

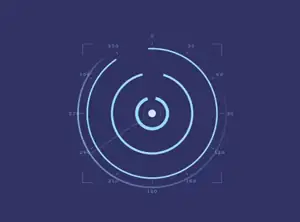

	Animated HUD Every Layer instance within a CompositeShape can be individually accessed and dynamically modified. When using the GL4/SSBO path, updates only require changing a small subset of the total GPU memory.
	Shapes/CompositeShapes Each backend has its own examples of how to create both simple Shape and CompositeShape objects, groups of Shape instances layered together. The last screenshot demonstrates the slughorn/canvas.hpp backend, in addition to showing how the traditional punch-out effect can be achieved by manually using opposite winding directions in order to cut out one closed path from another.

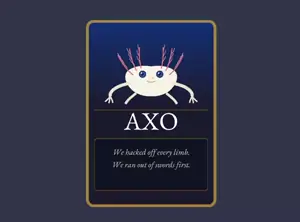

	Mixed Scenes Shape instances from different backends can be mixed together in the same CompositeShape; for example, fonts from the FreeType backend mixed with hand-authored content from the native Canvas (to create an animated "card" mockup, seen here).

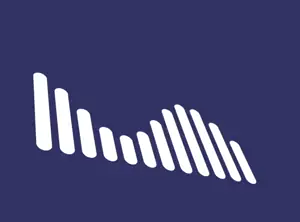

	Animated Scenes A CompositeShape scene can reference and animate any of the participating Shape instances within it. In this example, a single "pill" shape is repeated 12 times, each being animated using a different time offset.
	3D Objects Slug is not restricted to simple quads; any 3D object or mesh can be assigned compatible slughorn coordinate mappings, such as spheres, cubes, curved surfaces, etc.
	SVG SVG content fits easily within the slughorn ecosystem via the slughorn/nanosvg.hpp backend. NOTE: Some SVG features (strokes, text) are possible, but have not yet been implemented.
	Text Text was the original inspiration for Slug, and will always be incredibly well-supported. As mentioned above, each glyph in a text layout is nothing more than an instance of Shape, and can be manipulated in any way you can imagine. :)
	Mixed Text Text glyphs are simply an instance of Shape, and can be freely mixed with any other Shape or CompositeShape object. This example demonstrates replacing the character F with a simple triangle, which fits seamlessly into the layout process.

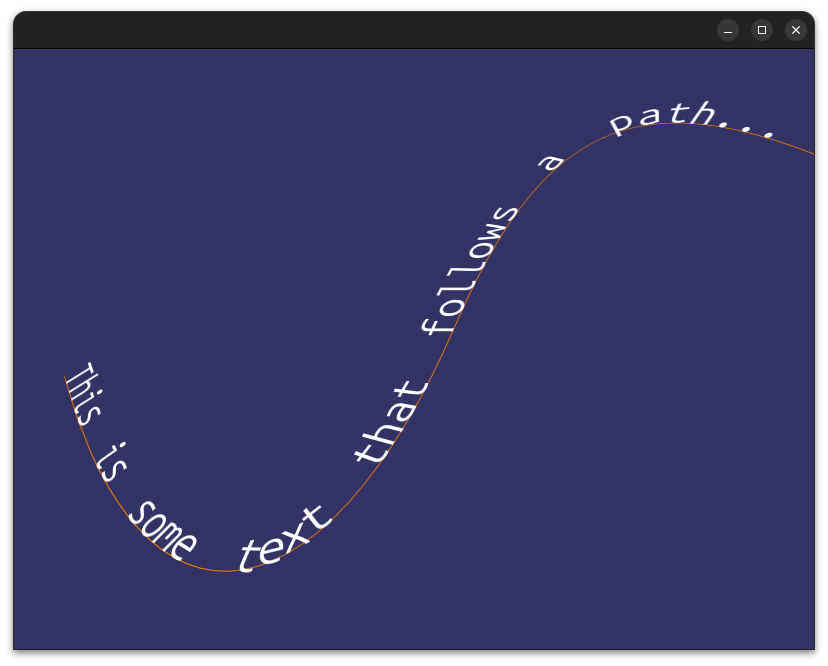

	Text Along Path Individual glyphs can be easily positioned along existing Path instances. The slughorn::canvas::Path object can sample at any position within a supported Shape instance.

Note on demos: All video demonstrations above are captured from osgSlug, the intentionally separate OpenSceneGraph-based testbed developed alongside slughorn. slughorn itself has no graphics dependencies, and osgSlug exists to prove the integration story and serve as a reference implementation for other graphics backends.

Skia

Compilation

cd ~/dev/skia
rm -rf out/Release
bin/gn gen out/Release
ninja -C out/Release skia

Why Slug Instead of Skia's GPU Backend?

What Skia Actually Does on the GPU

Skia has two GPU backends: Ganesh (the older one, OpenGL/Vulkan/Metal) and Graphite (the newer one, designed for modern explicit APIs). Both work by:

1. Tessellating paths into triangles on the CPU (or via compute shaders)
2. Uploading those triangles to the GPU
3. Rendering with relatively simple shaders

The key word is tessellation; Skia converts your curves into triangle meshes. This means:

• Quality is resolution-dependent; you have to choose a tessellation tolerance, and if you zoom in far enough you'll see faceting
• Every time the path transforms (scale, rotation, perspective), you either re-tessellate or accept quality loss
• Perspective projection of curves is fundamentally broken with tessellation; a cubic Bezier projected through a perspective matrix is no longer a cubic Bezier

What Slug Does Differently

Slug evaluates the exact curve equations per-fragment in the shader. This means:

• Quality is resolution-independent; zoom in infinitely, edges stay perfect
• Transforms are free; the vertex shader handles them, the fragment shader doesn't care
• Perspective is correct; because you're evaluating the curve at each pixel, not approximating it with triangles
• No CPU tessellation step; the atlas is built once and never rebuilt regardless of transform

Comparison

	Skia GPU	Slug
Edge quality at scale	Depends on tolerance	Perfect always
Perspective correctness	Approximate	Exact
CPU work per frame	Re-tessellate on change	Nothing
GPU fragment cost	Cheap (just triangles)	More expensive
Setup complexity	High (full GPU framework)	Moderate
OSG integration	Very difficult	Natural

OSG Integration Specifically

Getting Skia's GPU backend working inside OSG would be genuinely painful:

• Skia wants to own the OpenGL context; it manages its own state, its own FBOs, its own texture atlases. OSG also wants to own the context. Getting them to share without stomping each other's state is a known headache.
• Skia's GPU API is not designed to be embedded; it's designed to be the renderer, not a component of one.
• You'd essentially be running two renderers side by side and compositing, which introduces synchronization, blending, and depth buffer problems.

Slug, on the other hand, is just a shader and two textures; it slots into OSG's existing pipeline as naturally as any other osg::Program.

The Real Answer to "Are You Reinventing It?"

For 2D UI / document rendering at fixed resolution; Skia is better. It's battle-hardened, handles edge cases you haven't thought of yet, and the tessellation quality is fine for screen-resolution work.

For 3D scene graph rendering with arbitrary transforms and perspective, Slug is genuinely superior. The moment you want text or shapes on a billboard, a HUD, a curved surface, or viewed through a perspective camera, Skia's approach starts showing cracks and Slug's approach shines.

Slug is solving a different problem that Skia deliberately doesn't address.

AI Disclosure Declaration

AI tools such as ChatGPT and Claude have been used for research and some code development. However, this is not a "fire and forget" AI project. It was carefully designed, planned, architected and implemented by Jeremy 'Cubicool' Moles (cubicool@gmail.com). AI tools were also used for producing documentation and ancillary data products to accelerate development.

Sponsorship

This project was created and implemented by Jeremy 'Cubicool' Moles, author of the osgCairo and osgPango, as well as numerous SDF-rendering and other glyph-centric projects. Jeremy produced this work for AlphaPixel (AlphaPixelDev.com) based on the 2026 release of the Slug algorithm ( https://terathon.com/blog/decade-slug.html) patent by its author, Eric Lengyel, for whom the whole Slug-using community is extremely grateful.

If you are interested in assistance with Slug, slughorn, OpenGL, OpenSceneGraph, Vulkan, VulkanSceneGraph, AR, VR, xR, 3d mapping, or almost any other performance-centric computing, please contact AlphaPixel. We are mercenary programmers who can provide rapid assistance to any challenge, and our motto is "We Solve Your Difficult Problems."
