[3mdistal]

Problem

External agents connected directly to Mail cannot discover manage-draft, even though it already has an MCP Apps compose UI. The explicit connector catalog excludes it, including from tool search, so agents fall back to ask_app without a draft card.

Change and safety

Add only manage-draft to Mail's connector catalog. Create and update remain directly callable. delete, delete-saved, and delete-all require fresh human approval whenever an outside agent initiated the call, including requests delegated through A2A or ask_app. Persistent approval is disabled. Hosts unable to approve fail closed. delete-all can delete saved Gmail drafts as well as compose state.

The shared isOutsideAgentCall helper (packages/core/src/action-caller.ts, exported from @agent-native/core) checks network provenance before exempting ordinary frontend and tool calls. Direct MCP, A2A, WebMCP, card, HTTP, CLI, automation, and missing/unknown caller contexts are conservative; any network protocol or automation context also makes an app-agent run outside-origin. Mail's proven UI Delete button and its own non-delegated agent retain their behavior. This deliberately changes the earlier policy: outside-agent requests through ask_app now require approval for deletion too.

Create rejects an ID already in use with draft_already_exists (409), before calling Gmail. Atomic insert-if-absent prevents a concurrent create from replacing the winning draft. A loser cleans up only the Gmail draft newly created by that losing call.

The tool declares destructiveHint: true and openWorldHint: true because it can change a connected Gmail mailbox, and is removed from the legacy unreviewed-hint baseline. Other Mail writes remain outside this catalog; the embed target is unchanged.

The helper uses only caller, networkProtocol, and automation. CLI defaults outside because coding agents drive it, pending Alice's decision. Automation defaults outside because its run context has no trusted origin; #8070's mcpManaged lives on job frontmatter rather than that context.

HTTP/embed boundary coordination belongs to #8071, so this PR leaves action-routes.ts and its spec unchanged. At inspected head 80f8d860, that PR treats embedded card calls as MCP and strengthens browser-cookie/UI proof. One case remains open for the approvals thread: a non-embedded authenticated HTTP request with x-agent-native-frontend: 1 still reaches the conditional policy as frontend when UI proof fails, so this helper exempts it. This PR does not claim that HTTP header boundary is fixed.

The shared catalog logic is unchanged: Mail does not configure externalAgents.writes: "ask_app_only". That framework policy still suppresses writes wherever enabled. Mail's explicit allowlist intentionally prevents compactCatalog: true alone from exposing an action.

CI repair

The original failing job failed all three production-agent.approved-tool-gone.spec.ts tests with aborted_execution-lease-claim-failed. An isolated local database with a migration ledger but no execution-lease table reproduces all three failures. These agent files were unchanged by this PR.

Rebased onto af23ad48bf59, which includes the independently merged #8011 fixture fix. That spec now initializes its run-store migrations before exercising approval. #8011 documents the same failure and has all eight targeted CI lanes passing. No shared agent implementation change was added to this PR.

The follow-up also addresses both review findings: disable persistent draft approval and mark Gmail effects as open-world. The new persistent-approval regression test failed before the fix and passes afterward.

Verification

• pnpm --filter mail test — all 181 files and 1,927 tests passed before the final helper path/export alignment; the 34 affected draft/catalog tests passed again after that alignment. Before the fixes, the three delegated-delete cases and existing-ID collision regression failed as expected.
• pnpm --filter @agent-native/core exec vitest --run src/action-caller.spec.ts src/action.spec.ts — 51 helper and 168 action tests passed after the final path/signature/export alignment (219 total). The helper covers all 10 caller values crossed with all three network protocols, plus missing and unknown context; every caller is also tested with automation set.
• pnpm --filter @agent-native/core exec vitest --run src/agent/production-agent.spec.ts -t approval with the prepared isolated PGlite database — 21 passed; 493 excluded by the name filter.
• pnpm --filter @agent-native/core exec vitest --run src/mcp/server.spec.ts --maxWorkers 1 — 195 passed; the unchanged ChatGPT directory-profile scan exceeded its existing 60-second budget. The focused retry of that same scan also timed out at 60 seconds. The scan loads Slides, Design, and Content profiles rather than Mail; the test and those profiles are unchanged by this PR. This remains a local verification failure, not a passing check.
• Core and Mail typecheck passed. Local AgentKit/core build output was refreshed first to resolve stale worktree declarations and exercise the new public export. Formatting, changed-file lint, localization guards, no-source-reading-tests guard, and git diff --check passed.

The first combined core run hit three MCP timing overruns and two subsequent mock-count failures; the standalone rerun reduced that to the one directory-profile scan timeout. No assertions or timeout settings were changed. Earlier Windows schema-setup limitations and the original three-test lease fixture repair remain historical evidence, not newly rerun integration checks.

Original integration evidence at e06f366e: the live local HTTP MCP client listed manage-draft with _meta.ui.resourceUri = ui://mail/manage-draft/shell-v65; create/update returned draft data and embed metadata; resources/read returned MCP Apps HTML. All three static-token delete calls were refused for lacking verified human approval. MCPJam Inspector 3.16.2 connected through OAuth and executed create/update. This evidence is retained for the unchanged catalog/embed path; it does not establish the new approval flag or current production rendering.

Full compose rendering and delivery remain unverified: strict MCPJam Claude simulation blocked the local frame, permissive simulation remained blank, and direct local Mail required a Google connection. No email was sent. The original repository-wide annotation inventory spec stalled and was interrupted, so it is not counted as passed. Screenshots and protocol logs remain in the worktree's ignored .tmp/ directory. The two disposable credential config files have been deleted.

Send and Dispatch findings

The embedded compose uses ComposeModal.handleSend → useSendEmail → POST /api/emails/send, not the MCP send-email action. The route's guard and handler call getSession, which accepts ordinary signed embed sessions; the embed-auth client attaches the session bearer/target to same-origin POSTs. A user click therefore uses Mail's browser/embed session without an MCP approval exchange. This is code-supported; an actual embedded Send click has not been verified.

Dispatch does not proxy Mail's named tool or action-specific card. Its own catalog exposes local tools plus list_apps, ask_app, and open_app; ask_app delegates through A2A and returns response/task data. open_app({app:"mail",path:...,embed:true}) can separately embed granted Mail UI. No Dispatch changes here.

Inline resources still require the existing deployment rollout flag AGENT_NATIVE_MCP_APPS_INLINE or an allowed caller email. This PR does not change that rollout policy.

Independent static security review found the unproven frontend-header issue described above. A local repair was tested, then removed to keep HTTP approval policy in its owning thread and avoid conflicting with #8071. No additional findings were identified in the collision handling. These reviews were static and did not establish live host behavior.

[greptile-apps]

Confidence Score: 5/5

[Medium impact] This PR appears safe to merge.

Summary

Adds manage-draft to Mail's connector catalog so connected agents can create and update drafts through the existing compose card.

• Mail-connected agents can find and use draft review.

No actionable issues found.

Acknowledged limits from 3mdistal: inline cards retain the existing rollout flag; production-host rendering and actual embedded Send delivery remain unverified. These limits are explicitly documented, not claimed as completed verification.

Diagram

%%{init: {'theme': 'neutral'}}%%
flowchart TD
  A[Connected agent] --> B[Mail connector catalog]
  B --> C[manage-draft]
  C --> D{Operation}
  D -->|create or update| E[Save draft]
  E --> F[Existing compose card]
  D -->|delete modes| G{Verified human approval}
  G -->|Missing or invalid| H[Refuse call]
  G -->|Valid and unused| I[Delete draft]

Loading

_{Reviews (1) · Last reviewed commit: "Expose Mail draft review to connected ag..." · Reviewed by Greptile}

[github-actions]

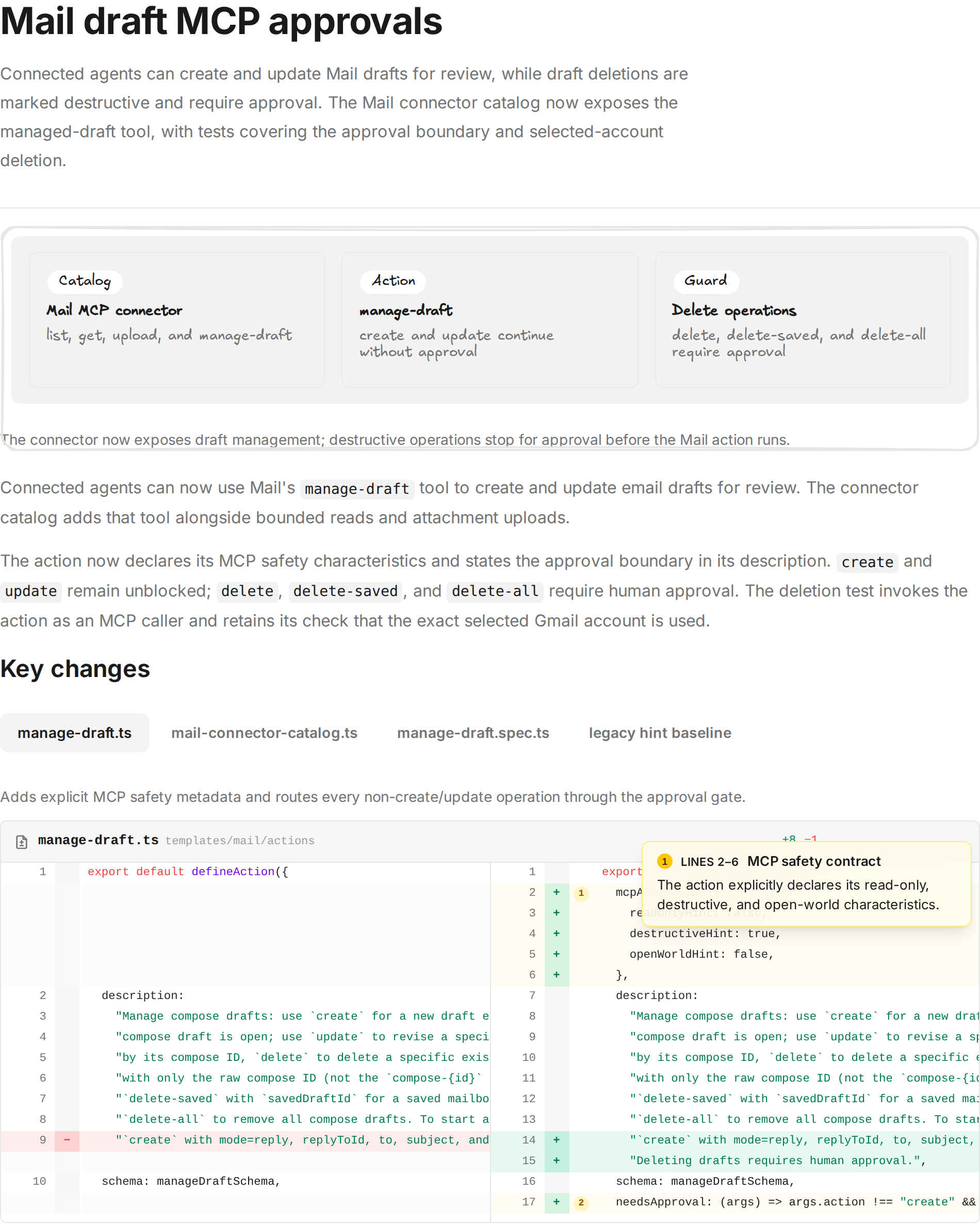

Here's a visual recap of what changed:

Open the full interactive recap

[builder-io-integration]

Builder reviewed your changes and found 1 potential issue 🔴

Review Details

Incremental Review Summary

This update adds a shared outside-agent provenance helper, uses it to gate draft deletion, and hardens draft creation against ID collisions with a pre-check plus atomic compare-and-set. It also adds tests and a core changeset. The previous A2A approval-bypass and draft-ID overwrite findings are fixed; both review threads were resolved. Risk remains high because the approval policy protects destructive Gmail operations.

Findings

• 🔴 HIGH — An untrusted frontend header bypasses the new approval policy. The action route maps x-agent-native-frontend: 1 to caller frontend, while explicitly treating that header as only a client claim. isOutsideAgentCall treats that caller as trusted without checking proven UI capability; an authenticated HTTP request can therefore avoid approval for destructive actions.
• LOW — If the compensating Gmail delete fails after a compare-and-set collision, the cleanup error masks the intended 409 and leaves the losing Gmail draft orphaned.

The updated tests cover the collision and A2A provenance cases, but not the spoofed-header approval path. Browser verification was skipped because the browser-test-planner agent is unavailable in this environment.
