Enable scoped inline cards for Design and Content - #8076

Open
3mdistal wants to merge 14 commits into
mcp/scope-embed-sessionsfrom
mcp/inline-existing-targets
Open

3mdistal wants to merge 14 commits into
mcp/scope-embed-sessionsfrom
mcp/inline-existing-targets

Conversation

@3mdistal

@3mdistal 3mdistal commented Oct 22, 2026 •

Copy link
Copy Markdown
Contributor

Three tool results gain live, resource-bound cards inside compatible chat clients: Design generate-screens and export-coding-handoff, and Content share-local-file-document. They reuse the existing editors and read/write contracts. Slides cloning stays an “open in app” link because its editor cannot currently load using only deck-bound reads.

  • Design generation opens the design overview; coding handoff opens the design editor.
  • Content sharing opens the returned SQL copy, using its result ID rather than the local-file input ID.
  • Missing result IDs retain the full-app link. Another resource, an undeclared action, and extra arguments remain refused.

Follow-ups

  • Slides clone-context-slide: the editor requires organization context and starts its loader with list-decks; those reads are not deck-bound.
  • Slides 2 clone-context-slide: the clone produces HTML, but the editor needs React source.
  • Analytics open-traffic-dashboard: bounding its queries is separate work.
  • Calendar manage-event-draft: limiting its account, week and preference reads would change how it behaves.

Authorization and compatibility

Normal action authorization and approval gates still apply. Content's visibility change returned approval_required during browser verification. No click-as-approval flag, new action grant, or migration is added.

The base remains mcp/scope-embed-sessions at 63dbce48b504c50d22e69192519f95c3ab4a90d5. Its widgetActionNames fix is reused; this PR has no build-server.ts diff. Both directory-template-profiles.spec.ts and existing-target-cards.spec.ts remain. Real-registry test fixtures now include ordinary target actions, and the cold three-template scanner has a 120-second timeout.

Slides and Content use standard toolkit auth; Design's custom browser-session hook comes from the base. #8010 was applied only to the remote scratch copy for verification. Its diff is excluded here. After #8071's squash merge, rebase with git rebase --onto origin/main <final-8071-head> before retargeting to main.

Verification

Final head: b7ef040887a08abec3997cc6dc65a4165b8dfe36.

  • Specs: 466 passed across card contracts, real-template profiles, Core MCP routes, call parity and connector catalog checks; 22 Slides profile/clone-action specs passed. No snapshots changed. The separate full-catalog/annotation run also passed 15 checks before the fallback removal.

  • Typechecks: Core, Design, Slides, Slides 2 and Content passed. Generated bridge-file churn from typechecking was discarded. git diff --check passed.

  • Design generation and handoff: production ordinary MCP calls and real nested iframes passed at be5cc902; a control and persisted title saves passed. These contracts are unchanged by the Slides fallback.

  • Content sharing: production ordinary MCP call, nested iframe, and persisted title save passed at be5cc902. Approval handling remained intact. Its contract is unchanged.

  • Slides: a fresh E2B production check of the attempted status grant at cf3c8a3 returned own-deck status 200 with owner access and refused another deck/extra argument. The UI still failed before get-deck: /_agent-native/org/me returned 401, and DeckProvider requires resolved organization context before starting its list-based loader. Controls and save could not run. The attempted status grant and Core public-read plumbing were removed, following the requested link fallback.

  • Final Slides fallback: fresh Core/Slides production rebuilds passed at b7ef040. The ordinary MCP clone returned a full-app link identifying the returned deck and cloned slide, with no inline start session or widget-source ticket. The status action remains absent from the external tool list.

  • Environment: fresh Core and Slides production builds used Linux E2B, inline mode, HTTPS and short-lived scratch PostgreSQL. The PC's expected Node executable is missing; no fresh Windows production build is claimed. Real ChatGPT, Cursor, MCPJam hosts and every editor/sharing control remain unverified.

Full guards were not rerun for this follow-up. The earlier run had 90 passes, existing Assets i18n/dead-settings failures, and an incomplete historical e2e-quarantine scan.

content_product_impact:
  lane: contract_repair
  features:
    - content.feature.work-on-content-inside-another-application
  capabilities:
    - content.agent.action-parity
    - content.embed.mcp-app
  record_change: none
  proof:
    - Production ordinary MCP card rendered the returned SQL copy and persisted a UI title save
    - Its scoped session refused another accessible document, an extra argument, and an undeclared action
  rationale: Reuses the canonical document editor and resource-bound action contract for the shareable SQL copy returned by local-file sharing.

🤖 Generated with Claude Code

@github-actions

Copy link
Copy Markdown
Contributor

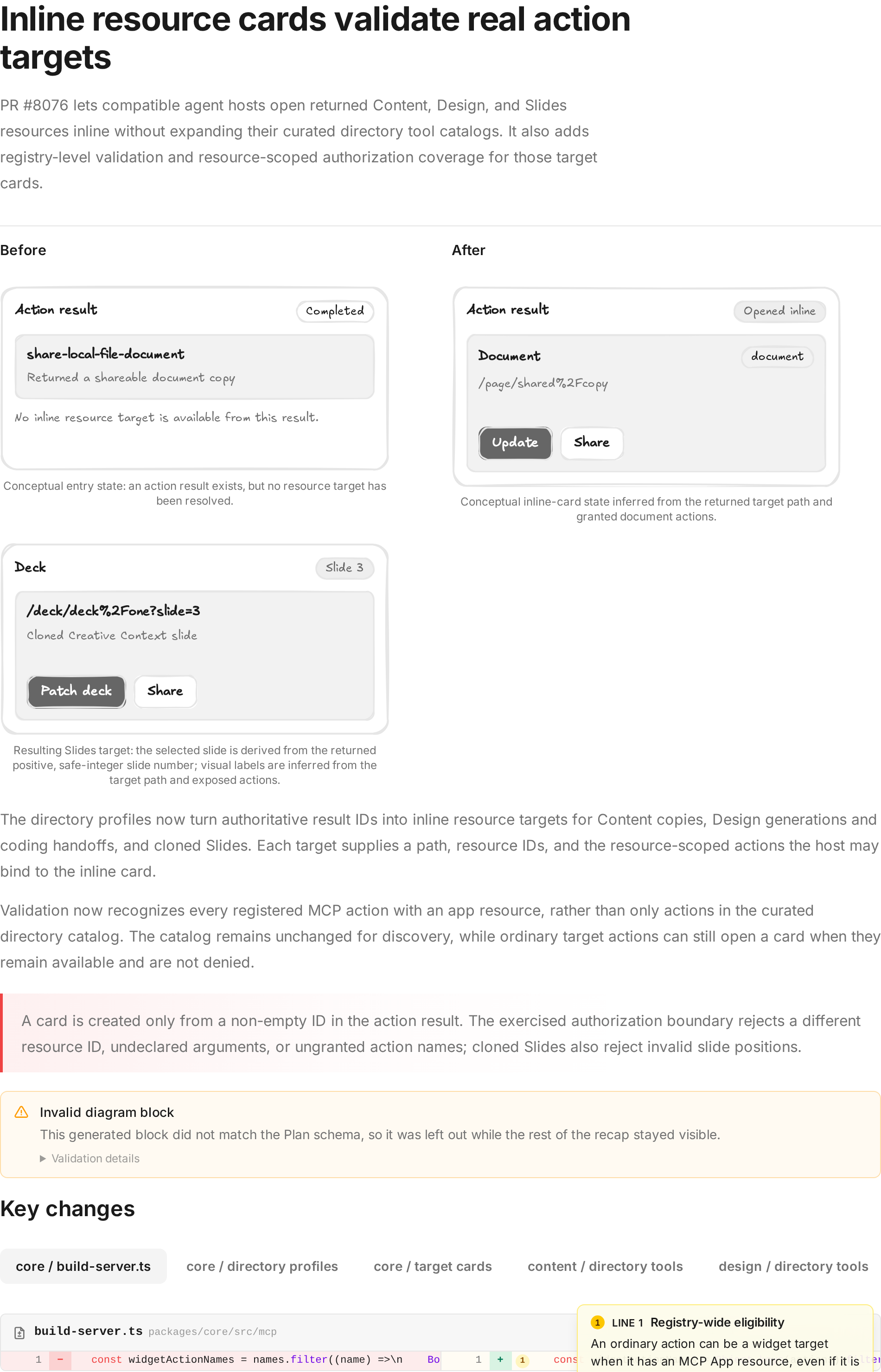

Here's a visual recap of what changed:

Visual recap

Open the full interactive recap

builder-io-integration[bot]

This comment was marked as outdated.

@3mdistal
3mdistal force-pushed the mcp/inline-existing-targets branch from 1ce9775 to be5cc90 Compare October 23, 2026 01:02
builder-io-integration[bot]

This comment was marked as outdated.

@3mdistal 3mdistal changed the title Enable scoped inline cards for Design, Slides, and Content Enable scoped inline cards for Design and Content Oct 23, 2026
builder-io-integration[bot]

This comment was marked as outdated.

Copy link
Copy Markdown
Contributor

Thanks for the PR. This adds a Design inline-card entry point alongside Content. Alice's Content-owner review does not cover the Design surface; please get Sid's current review before approval.

@3mdistal
3mdistal force-pushed the mcp/scope-embed-sessions branch from 63dbce4 to c439c87 Compare October 24, 2026 03:19
3mdistal and others added 4 commits October 24, 2026 00:27
Co-Authored-By: Claude Opus 5.5 <noreply@anthropic.com>
…s as links

Co-Authored-By: Claude Opus 5.5 <noreply@anthropic.com>
Co-Authored-By: Claude Opus 5.5 <noreply@anthropic.com>
Production verification found the ordinary editor requires organization context and a deck list before loading. Remove the inline target and attempted status grant rather than widening its scope. Keep real-profile fixtures complete.

Co-Authored-By: Claude Opus 5.5 <noreply@anthropic.com>
@3mdistal
3mdistal force-pushed the mcp/inline-existing-targets branch from b7ef040 to 23c5d63 Compare October 24, 2026 04:57

@builder-io-integration builder-io-integration Bot left a comment

Copy link
Copy Markdown
Contributor

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

Builder reviewed your changes — looks good ✅

Review Details

Incremental Code Review Summary

This revision retains the three Design and Content result-backed cards and the full-app fallback for Slides cloning. Most new code is coverage for real-registry ordinary-card validation and resource-bound action arguments, with small test-fixture and timeout adjustments. The previously reported Slides editor access failure remains addressed by removing that target; its review thread was already resolved on the prior incremental review and is not being reposted.

Risk: High — the PR changes scoped embedded authorization. Three independent reviewers found no new high- or medium-severity issue. One reviewer identified a low-impact test-fixture duplication: the added slides-2 shared-action map is unused because loadTemplateActions aliases slides-2 to the slides map. It does not currently change behavior, but the dead entry could be removed or the lookup made direct. The remaining result-ID bindings and scope checks appear consistent.

🧪 Browser testing: Skipped — browser-test-planner is unavailable; this update does not change the previously verified Design and Content UI behavior.

@3mdistal
3mdistal force-pushed the mcp/scope-embed-sessions branch from 3a07d75 to 5efe006 Compare October 24, 2026 14:12
