fix(linux/vaapi): validate quality configuration, add Intel quirk by psyke83 · Pull Request #5797 · LizardByte/Sunshine

psyke83 · 2026-09-24T21:27:21Z

Description

Validate quality levels against driver before committing value to ctx->compression_level.
Add quirk for intermediate quality value on Intel cards (balanced should be 4, not 3).

Screenshot

Issues Fixed or Closed

Fixes: VAAPI "auto" quality sends compression_level 0 to the driver; Intel HD 620 rejects it for HEVC and every stream aborts #5792

Roadmap Issues

Type of Change

Checklist

Code follows the style guidelines of this project
Code has been self-reviewed
Code has been commented, particularly in hard-to-understand areas
Code docstring/documentation-blocks for new or existing methods/components have been added or updated
Unit tests have been added or updated for any new or modified functionality

AI Usage

See our AI usage policy.

None: No AI tools were used in creating this PR
Light: AI provided minor assistance (formatting, simple suggestions)
Moderate: AI helped with code generation or debugging specific parts
Heavy: AI generated most or all of the code changes

psyke83 · 2026-09-24T23:45:02Z

Ready for review, but please don't merge until users with Intel GPUs validate that the "auto" case (attempting to set value 0) is also resolved in the linked report. My AMD card behaves differently so I can't be certain.

ReenigneArcher

One doxygen error:

/home/docs/checkouts/readthedocs.org/user_builds/sunshinestream/checkouts/5797/src/platform/linux/vaapi.cpp:284: error: parameters of member va::va_t::set_quality_level are not documented

* Validate quality levels against driver before committing to AVOptions dict. * Add quirk for intermediate quality value on Intel cards.

ReenigneArcher · 2026-09-26T00:37:53Z

Ready for review, but please don't merge until users with Intel GPUs validate that the "auto" case (attempting to set value 0) is also resolved in the linked report. My AMD card behaves differently so I can't be certain.

I'm running CI to make it easier for people to test. Please ping me once it's ready to merge.

codecov · 2026-09-26T00:38:13Z

Bundle Report

Bundle size has no change ✅

sonarqubecloud · 2026-09-26T00:50:27Z

Quality Gate passed

Issues
0 New issues
0 Accepted issues

Measures
0 Security Hotspots
0.0% Coverage on New Code
0.0% Duplication on New Code

See analysis details on SonarQube Cloud

github-actions · 2026-09-26T01:26:14Z


Last Updated	2026-09-26 01:26:10 UTC
Source Run	CI Run #5792
Commit	`f92302532c4ae646ff8f055c0961be503f201d6b`

Screenshot Comparison

PR #5797 screenshots vs screenshots baseline.

Matrix: `AppImage-aarch64`

Image	Baseline	PR

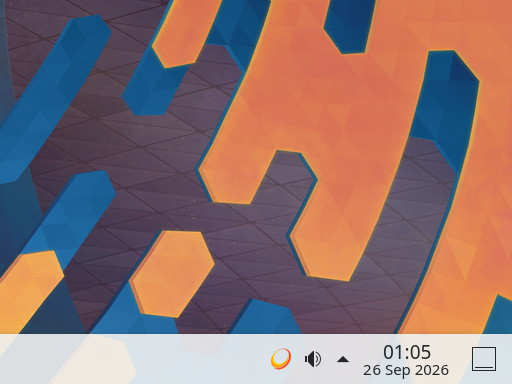

`sunshine_tray_initial.png`

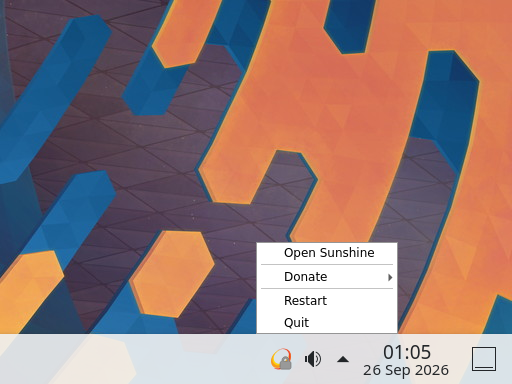

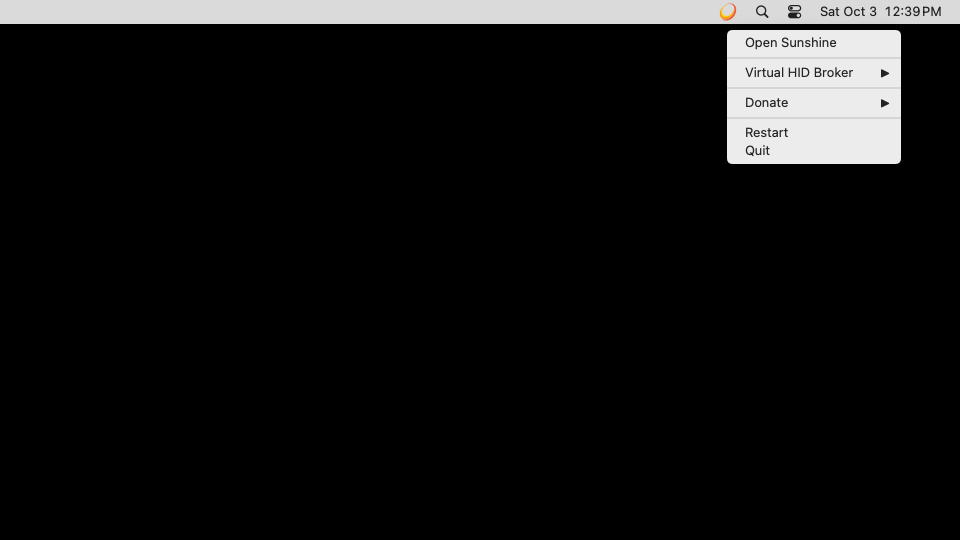

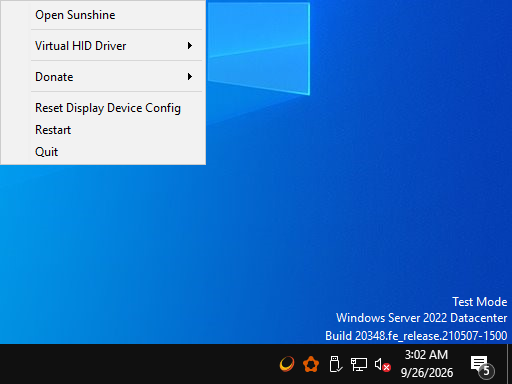

`sunshine_tray_menu.png`

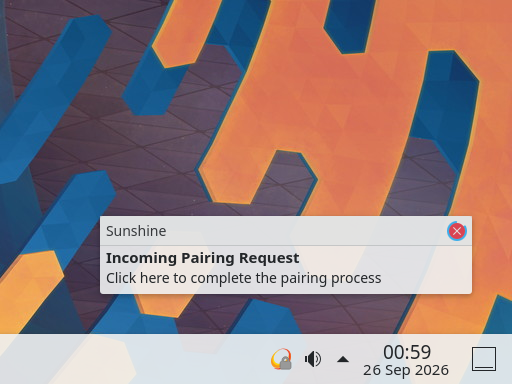

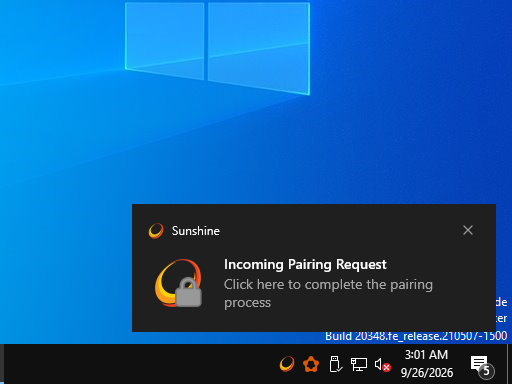

`sunshine_tray_pairing_request.png`

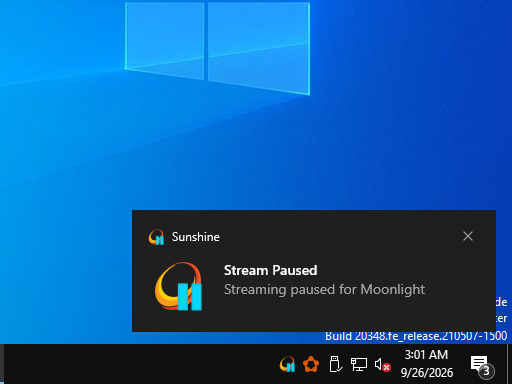

`sunshine_tray_paused.png`

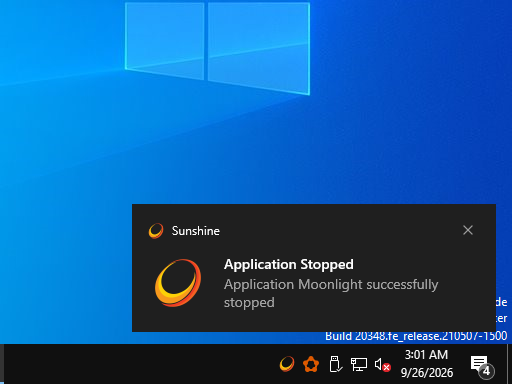

`sunshine_tray_stopped.png`

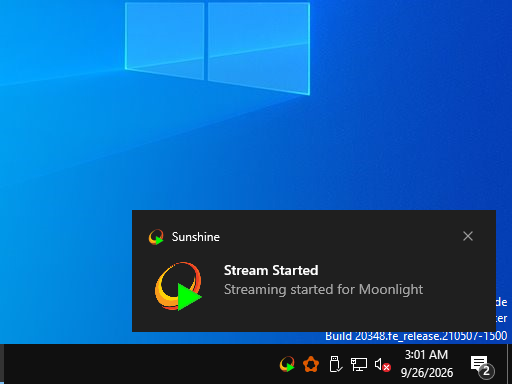

`sunshine_tray_streaming.png`

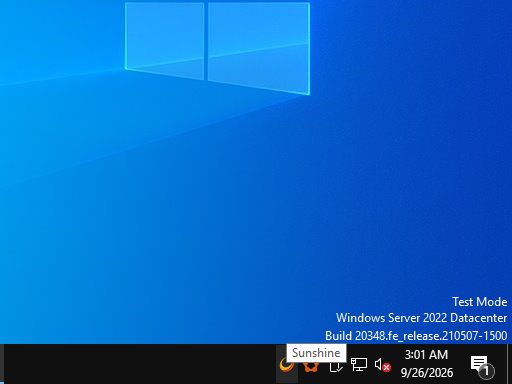

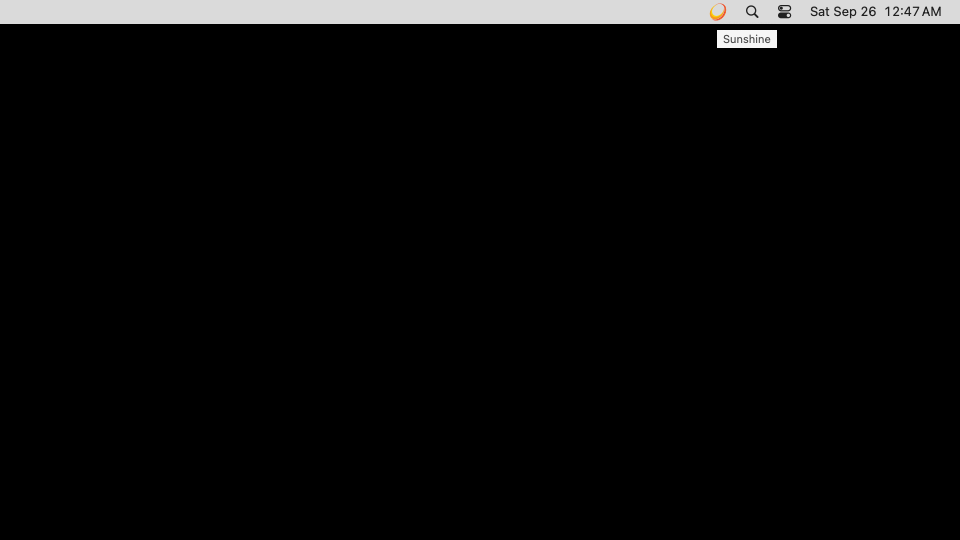

`sunshine_tray_tooltip.png`

Matrix: `AppImage-x86_64`

Image	Baseline	PR
`sunshine_tray_initial.png`
`sunshine_tray_menu.png`
`sunshine_tray_pairing_request.png`
`sunshine_tray_paused.png`
`sunshine_tray_stopped.png`
`sunshine_tray_streaming.png`
`sunshine_tray_tooltip.png`

Matrix: `Windows-AMD64`

Image	Baseline	PR

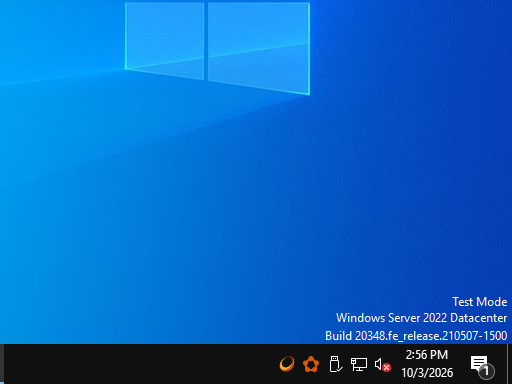

`sunshine_tray_initial.png`
`sunshine_tray_menu.png`
`sunshine_tray_pairing_request.png`
`sunshine_tray_paused.png`
`sunshine_tray_stopped.png`
`sunshine_tray_streaming.png`
`sunshine_tray_tooltip.png`

Matrix: `Windows-ARM64`

Image	Baseline	PR
`sunshine_tray_initial.png`
`sunshine_tray_menu.png`
`sunshine_tray_pairing_request.png`
`sunshine_tray_paused.png`
`sunshine_tray_stopped.png`
`sunshine_tray_streaming.png`
`sunshine_tray_tooltip.png`

Matrix: `macOS-arm64`

Image	Baseline	PR
`sunshine_tray_initial.png`
`sunshine_tray_menu.png`

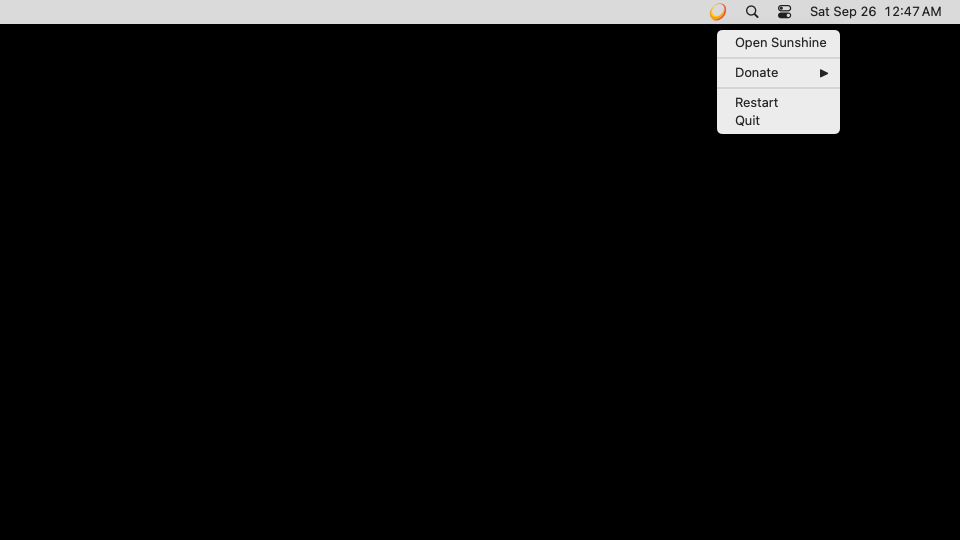

`sunshine_tray_pairing_request.png`
`sunshine_tray_paused.png`
`sunshine_tray_stopped.png`

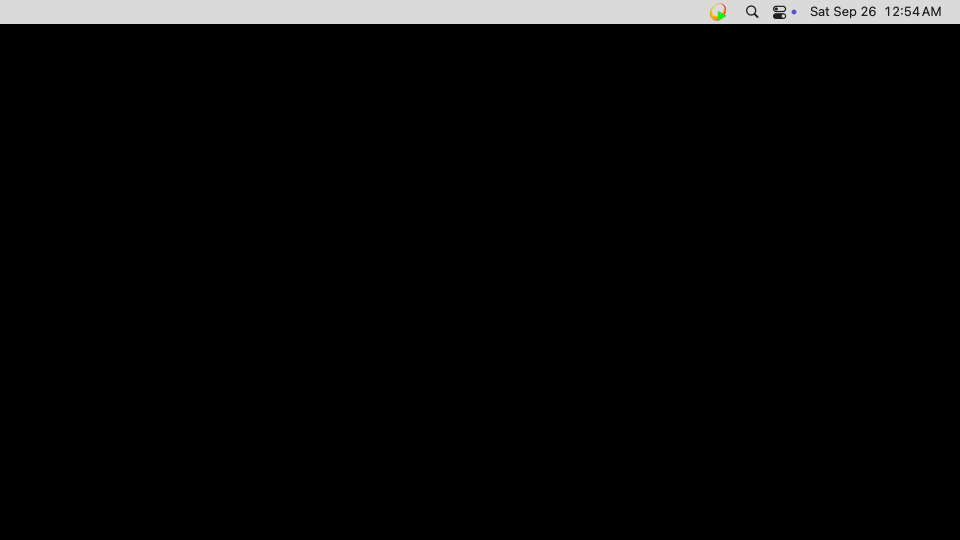

`sunshine_tray_streaming.png`
`sunshine_tray_tooltip.png`

Matrix: `macOS-x86_64`

Image	Baseline	PR
`sunshine_tray_initial.png`
`sunshine_tray_menu.png`
`sunshine_tray_pairing_request.png`
`sunshine_tray_paused.png`
`sunshine_tray_stopped.png`
`sunshine_tray_streaming.png`
`sunshine_tray_tooltip.png`

codecov · 2026-09-26T01:26:15Z

Codecov Report

❌ Patch coverage is 0% with 29 lines in your changes missing coverage. Please review.
✅ Project coverage is 38.35%. Comparing base (e1e6700) to head (f923025).
⚠️ Report is 26 commits behind head on master.
✅ All tests successful. No failed tests found.

Files with missing lines	Patch %	Lines
src/platform/linux/vaapi.cpp	0.00%	29 Missing ⚠️

Additional details and impacted files

@@            Coverage Diff             @@
##           master    #5797      +/-   ##
==========================================
- Coverage   38.36%   38.35%   -0.02%
==========================================
  Files         113      113
  Lines       26099    26112      +13
  Branches    11562    11561       -1
==========================================
  Hits        10014    10014
- Misses      14405    14435      +30
+ Partials     1680     1663      -17

Flag	Coverage Δ
Alpine-aarch64	`22.98% <0.00%> (-0.02%)`	⬇️
Alpine-x86_64	`23.10% <0.00%> (-0.02%)`	⬇️
Archlinux	`21.76% <0.00%> (-0.02%)`	⬇️
Homebrew-macos-15	`37.74% <ø> (ø)`
Homebrew-macos-26	`38.07% <ø> (ø)`
Homebrew-ubuntu-24.04	`24.64% <0.00%> (-0.02%)`	⬇️
Linux-AppImage-aarch64	`25.82% <0.00%> (-0.03%)`	⬇️
Linux-AppImage-x86_64	`26.01% <0.00%> (-0.03%)`	⬇️
PowerShell	`100.00% <ø> (ø)`
Web-UI	`85.00% <ø> (ø)`
Windows-AMD64	`30.83% <ø> (ø)`
Windows-ARM64	`25.86% <ø> (+<0.01%)`	⬆️
macOS-arm64	`31.30% <ø> (ø)`
macOS-x86_64	`31.91% <ø> (+<0.01%)`	⬆️

Flags with carried forward coverage won't be shown. Click here to find out more.

Files with missing lines	Coverage Δ
src/platform/linux/vaapi.cpp	`2.38% <0.00%> (-0.12%)`	⬇️

... and 10 files with indirect coverage changes

Continue to review full report in Codecov by Harness.

Legend - Click here to learn more
Δ = absolute <relative> (impact), ø = not affected, ? = missing data
Powered by Codecov. Last update e1e6700...f923025. Read the comment docs.

dsvarela · 2026-10-01T11:40:12Z

The proposed vaCreateConfig probe gives the wrong answer on Comet Lake (UHD [8086:9bca], iHD 26.1.2). The CI build hasn't been run, but running the PR's check as standalone shows that auto would still not work.

Probe Results vs. Actual Encode

On this GPU, HEVC encodes only at quality levels 1, 4, and 7. Levels 0, 2, 3, 5, and 6 fail at the second frame's vaEndPicture with error 24 (verified via plain ffmpeg; H.264 accepts all eight).

However, running the PR's check (vaCreateConfig with VAConfigAttribEncQualityRange set to the level) for each level returns success only for 0 and 7, and rejects 1 through 6.

This results in the following matrix with the PR as written:

vaapi_quality	level	PR Probe	Actual Encode	Expected with PR
auto	0	Accepts	Fails	Still aborts
speed	7	Accepts	Works	Works
balanced	4	Rejects	Would work	Falls back to driver default
quality	1	Rejects	Would work	Falls back to driver default

vaCreateConfig cannot reliably identify working levels on iHD.

Proposed Fix for `auto`

For auto, leave compression_level at -1 so FFmpeg sends no quality buffer. Without a quality buffer, HEVC encodes normally on this GPU. This matches Sunshine 2026.516 behavior prior to #5388.

Related FFmpeg Abort

The resulting abort is an FFmpeg bug I filed at: https://code.ffmpeg.org/FFmpeg/FFmpeg/issues/24838

psyke83 · 2026-10-01T14:36:53Z

@dsvarela

If that's the case, trying to probe quality is not a good idea. Please try the simplified resolution at #5847.

psyke83 mentioned this pull request Sep 24, 2026

VAAPI "auto" quality sends compression_level 0 to the driver; Intel HD 620 rejects it for HEVC and every stream aborts #5792

Closed

2 tasks done

psyke83 force-pushed the validate_vaapi_quality branch from 3a4cec2 to e94376b Compare September 24, 2026 21:34

psyke83 marked this pull request as ready for review September 24, 2026 21:34

psyke83 force-pushed the validate_vaapi_quality branch from e94376b to 33423f7 Compare September 24, 2026 21:35

psyke83 mentioned this pull request Sep 24, 2026

feat(vulkan): add vk_quality config option #5783

Merged

6 of 21 tasks

psyke83 force-pushed the validate_vaapi_quality branch 5 times, most recently from 5ed7241 to 8bf924d Compare September 24, 2026 23:39

ReenigneArcher reviewed Sep 25, 2026

View reviewed changes

psyke83 added 4 commits September 25, 2026 20:37

fix(linux/vaapi): validate quality configuration, add Intel quirk

369bf50

* Validate quality levels against driver before committing to AVOptions dict. * Add quirk for intermediate quality value on Intel cards.

fixup: refactor to reduce CC

23b992e

fixup: doxygen errors

1a952d3

fixup: doxygen fix

f923025

ReenigneArcher force-pushed the validate_vaapi_quality branch from fca75db to f923025 Compare September 26, 2026 00:37

psyke83 mentioned this pull request Oct 1, 2026

fix(linux/vaapi): adjust balanced preset; don't try to override default quality #5847

Merged

5 of 21 tasks

ReenigneArcher closed this in #5847 Oct 3, 2026
