ch8go

ch8go is an accurate CHIP-8, SUPER-CHIP and XO-CHIP emulator written in Go, with broad ROM compatibility and four frontends — the browser (WebAssembly/PWA), SDL2, Ebiten, and an interactive CLI debugger. It passes the full Timendus and Octo test suites, verified in CI.

It began as a project to learn Go and explore the system. More about CHIP-8 and the design is in the wiki.

🌐 Try the Live Demo →

Features

• Auto configuration — quirks, tick rate, and color palette are set per-ROM from a built-in metadata database, so games run correctly without manual tuning.
• Verified accuracy — passes the full Timendus and Octo test suites, checked frame-by-frame against golden images in CI (details).

Emulation Core

• CHIP-8: Implements all 35 standard opcodes, including timers, stack, and registers.
• SUPER-CHIP: Implements extended opcodes, high-resolution mode, 16×16 sprites, scrolling, and additional font.
• XO-CHIP: Implements extended opcodes, four-plane graphics with 16 colors, and extended audio.
• Quirks: Implements all common quirks — shift behavior, jump offsets, VF reset, screen clipping, memory behavior, VBlank waiting, half scrolling (details).

Frontends

• WASM — runs in the browser; installable as a PWA.
• SDL2 — native desktop, hardware-accelerated.
• Ebiten — native desktop, pure Go with no runtime dependencies.
• CLI — headless REPL debugger with a disassembler and ASCII renderer.

Install & Run

Grab a prebuilt binary from the Releases page — CLI and Ebiten builds are self-contained; the SDL2 archive bundles its runtime. Prefer no install? Run it in the browser.

Build from source

Requires Go 1.25+. Run any frontend directly with a ROM:

go run ./cmd/cli    --rom path/to/game.ch8   # headless REPL/debugger, Go only
go run ./cmd/ebiten --rom path/to/game.ch8   # native GUI, pure Go
go run ./cmd/sdl2   --rom path/to/game.ch8   # native GUI via SDL2

• Ebiten / SDL2 are GUI apps and need the desktop graphics/audio toolchain. On Linux, install the dev headers (see the Ebitengine install guide); SDL2 also needs its dev package — libsdl2-dev (Debian/Ubuntu), brew install sdl2 (macOS), or sdl2 (Arch).
• WASM: make wasm builds web/main.wasm and serves the demo at http://localhost:8000.

Controls

CHIP-8              Keyboard
1  2  3  C   →      1  2  3  4
4  5  6  D   →      Q  W  E  R
7  8  9  E   →      A  S  D  F
A  0  B  F   →      Z  X  C  V

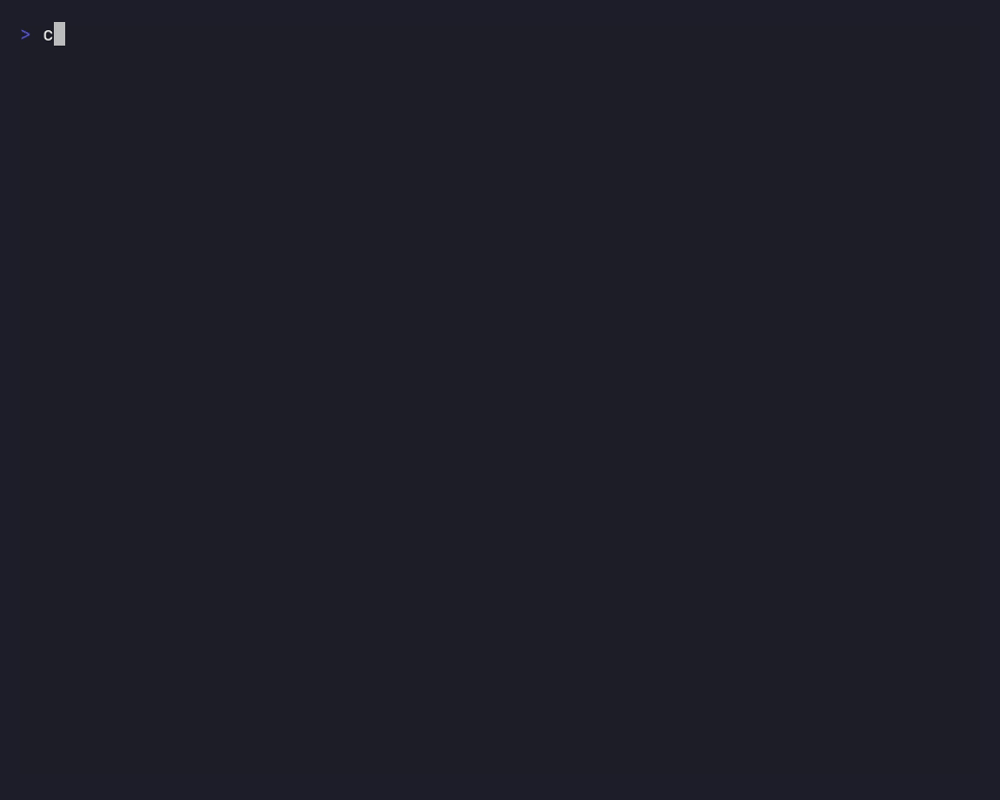

CLI Usage

Run the CLI with:

go run ./cmd/cli --rom path/to/game.ch8

Inside the prompt (ch8go>), type help for the commands below.

Commands — full REPL reference

Command	Description
help	Show all supported commands
load <file>	Load a ROM into memory
info	Show metadata about a ROM
step <n>	Execute 1 or N instructions
peek <n>	Disassemble 1 or N instructions starting from PC
dis	Disassemble the loaded ROM
regs	Show registers, call stack, and delay timer
mem <addr> [n]	Hex-dump N bytes of memory from addr (default 64)
draw	Render the current display buffer in ASCII
break <addr>	Set a breakpoint at addr (hex 0x300 or decimal)
breaks	List breakpoints
delete [addr]	Remove a breakpoint (or all if omitted)
watch <t>	Watch a memory addr or register (v0-vF); break on change
watches	List watchpoints
unwatch [t]	Remove a watchpoint (or all if omitted)
continue [n]	Run until a breakpoint/watchpoint (or n steps max); alias c
keydown <hex>	Press a key (0-F)
keyup <hex>	Release a key (0-F)
keys	List currently pressed keys
quit	Exit the REPL

Example — disassemble, break, run to the breakpoint, then inspect state

ch8go> peek 5
0200: 1436  JP  436
0436: A64A  LD  I, 64A
0438: 2378  CALL 378
0378: 6A00  LD  VA, 00
037A: 6B00  LD  VB, 00

ch8go> break 0x37e
Breakpoint set at 037E.

ch8go> continue
Hit breakpoint after 6 steps.
037E: DAB8  DRW VA, VB, 8

ch8go> regs
PC=037E I=064A SP=01 DT=00
V=[0 0 0 0 0 0 0 0 0 0 0 0 8 0 0 0]
Stack=[043A]

ch8go> mem 0x64a 16
064A  61 81 A0 81 A0 81 A0 81 FF 00 00 00 00 00 00 00 |a...............|

References

Useful resources for CHIP-8 development:

• Technical Reference
• CHIP-8 Research Facility
• Opcode Table
• Instruction Set
• CHIP-8 on the COSMAC VIP
• Mastering SUPER-CHIP
• XO-CHIP Specification
• Timendus' test ROMS
• CHIP-8 Database
• CHIP-8 Archive
• Awesome CHIP-8

Acknowledgements

This project is made possible by the work and documentation of the community:

• The original CHIP-8, SUPER-CHIP, and XO-CHIP specifications and their authors, as listed in References section
• Game authors, including participants of Octo Jam, for making their work publicly available
• Test ROM authors, Timendus and the Octo project
• The Go, WebAssembly, Ebiten, and SDL ecosystems for providing robust tooling and libraries
