feat(pocket3d): pocket-drive — streamed open-data city drive on PSP

[doodlewind]

What

A new pocket3d runtime demo, Pocket Drive: a Tesla-dash-style night drive through Midtown Manhattan on PSP. Open data (OpenStreetMap buildings + streets — 4,390 footprints, 94% with surveyed heights, 822 streets around the Flatiron / Empire State corridor) is cooked into simple extruded meshes in a tiled binary pack, then streamed tile-by-tile off the memory stick around a car that follows a baked scenic route. New blocks rise from the ground as they load — the dynamic loading is the show.

How

• cooker/cook.ts (Bun, zero deps): Overpass fetch → pinned 220 KB extract (offline, byte-deterministic cooks) → ear-clipped footprints extruded by surveyed height with baked vertex lighting (facing shade + base AO + roof rim-light lines), street ribbons by class width, all quantized to the 12-byte GE vertex (color u32, xyz i16) in 128 m tiles; route = Dijkstra legs between scenic waypoints (Flatiron → Empire State → Herald Square → Morgan Library), a 4.1 km closed loop. 2.6 MB pack total.

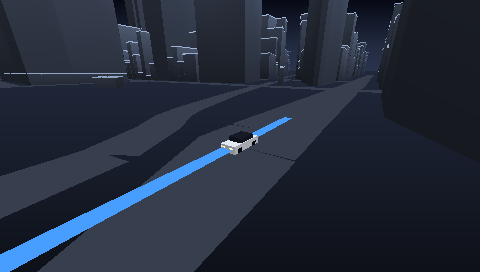

• src/ (no_std EBOOT, gu-demo pattern): zero-copy .pdrv reader; streamer with a Chebyshev residency ring, one async sceIoReadAsync in flight, ahead-of-car load bias, GE-safe eviction, and a 30-frame rise animation via the per-tile model matrix; zero-triangle infinite-ground backdrop split at the computed horizon row; GE fog into the same haze color; miter-joined navigation ribbon; box-art cars (player + 16 traffic both directions) following the route by arclength with corner slowdown; orbit→chase camera; capture contract identical to gu-demo. Falls back to an embedded pack (DRIVE_PACK) with simulated load latency when no file is present.
• scripts/pocket-drive.ts: cook → cargo psp → pack onto the emulated memstick → PPSSPPHeadless → PNGs.

Typical frame: ~35 tiles, ~10 k tris, ~80 draw calls.

Verification

• Cook is byte-deterministic from the pinned extract (hashed twice).

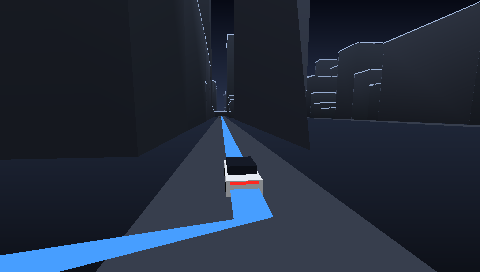

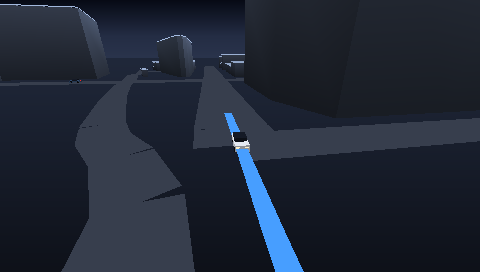

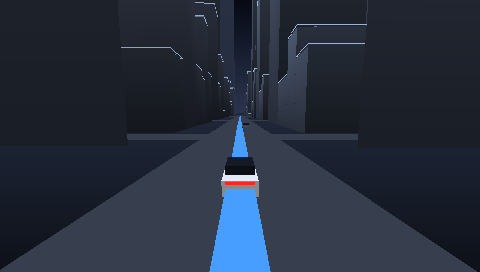

• PPSSPPHeadless (software renderer) frame captures: boot city-rise, avenue drive, 90° turns with ribbon preview + camera swing, oncoming traffic pass, and both pack sources (file streaming and embedded); streaming counters confirmed via the stats feature (121 async tile loads in the opening seconds, all polled non-blocking).
• Desktop pocket3d workspace still cargo checks clean (new crate is workspace-excluded like gu-demo).
• Pending: real-hardware pass over PSPLINK (same acceptance bar as gu-demo); PPSSPP e2e goldens if we want them pinned.

Map data © OpenStreetMap contributors (ODbL); the pinned extract is a derived database.
