fix(dashboard): an empty project says it's empty instead of drawing empty charts (BEA-51)

[ssowonny]

TL;DR

• A brand-new project's Dashboard used to be ~840px of empty bordered boxes with HOT + STALE / HOT + FRESH / COLD + STALE floating over nothing. Now it says the project is empty and points at Installation.
• Only the zero-files case changed. Files-with-no-reads still charts exactly as before.
• The project home gets the same message but no button — ConnectGuide right above it already IS the set-up-a-device guide.
• Folder-scoped dashboards get the same state, worded for the scope ("Nothing in archive to chart yet.").
• Known gap: the plan wanted this after BEA-49, whose orphans list joins the guard condition. fix(dashboard): keep reads for a deleted file on the map (BEA-49) #100 is still open, so this lands with !scoped.length and a comment marking the spot — see Deviation below.

Screenshots

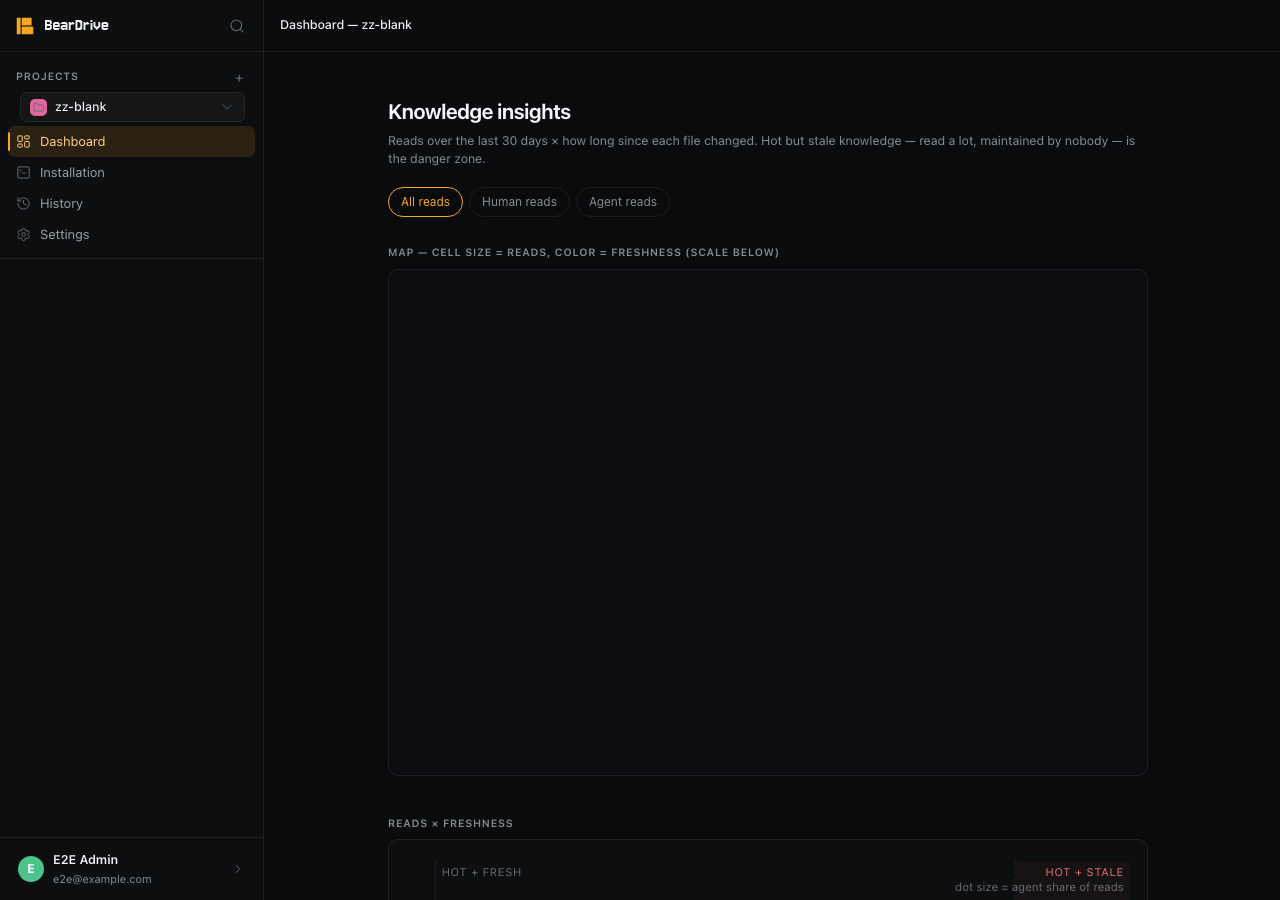

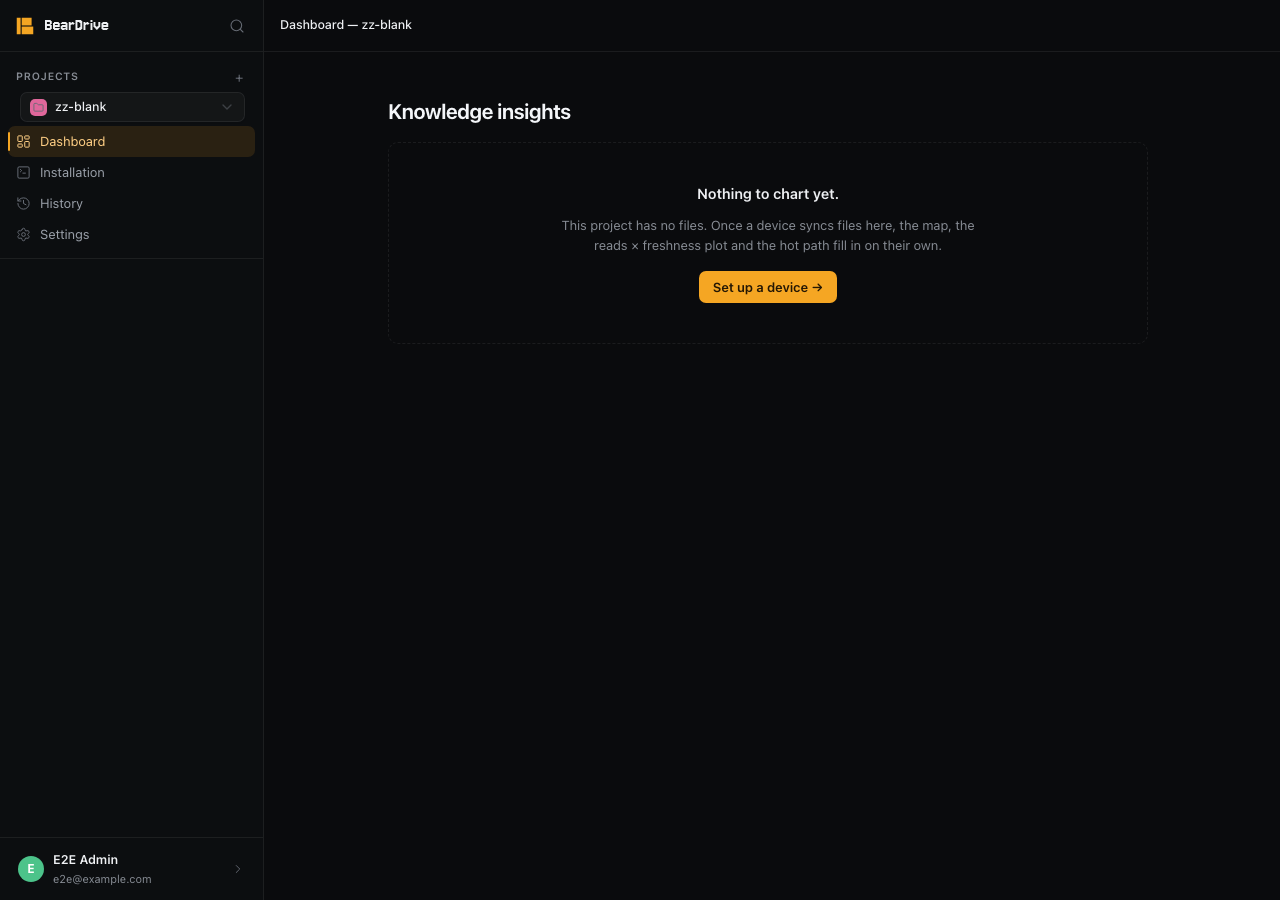

Dashboard on a project with no files:

Before	After

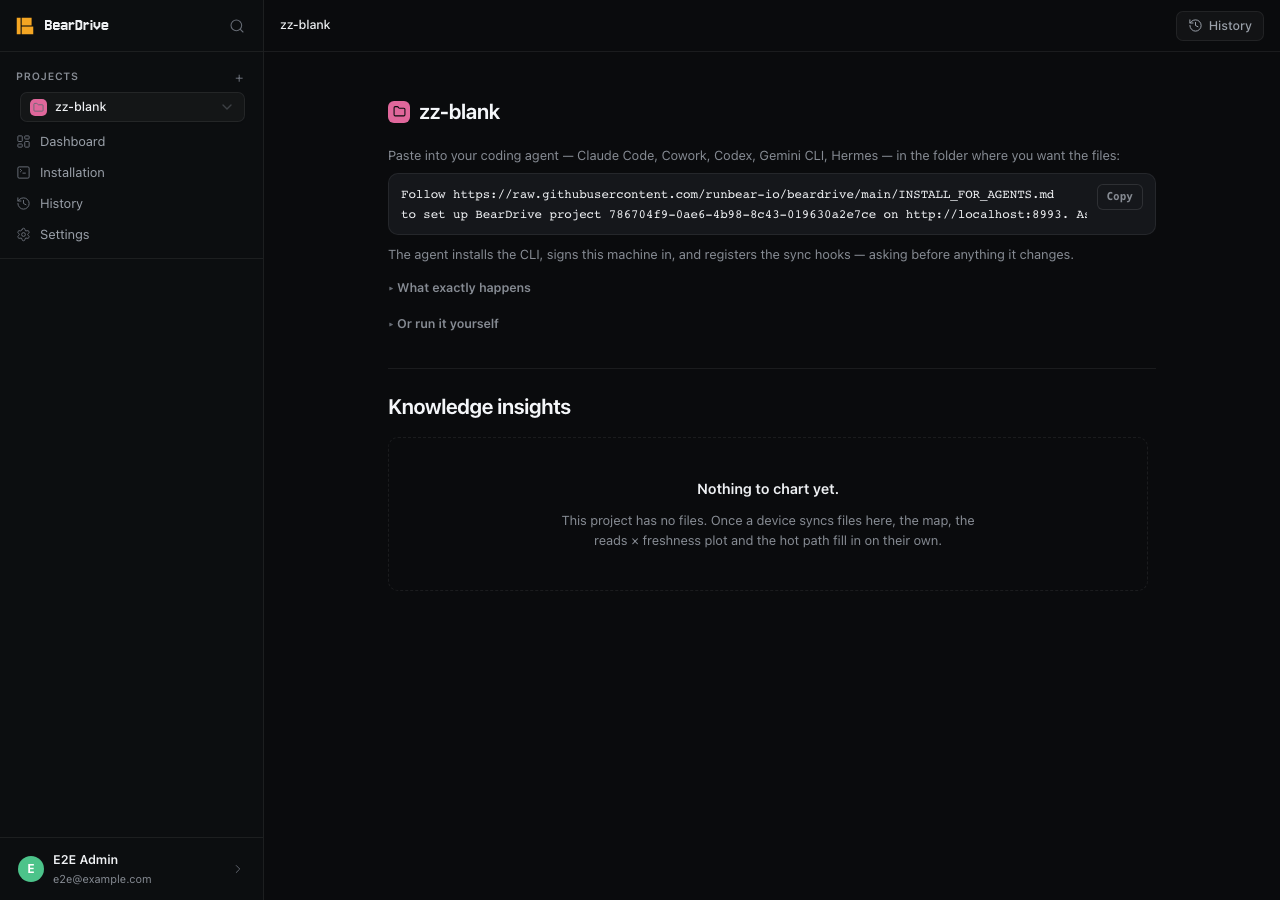

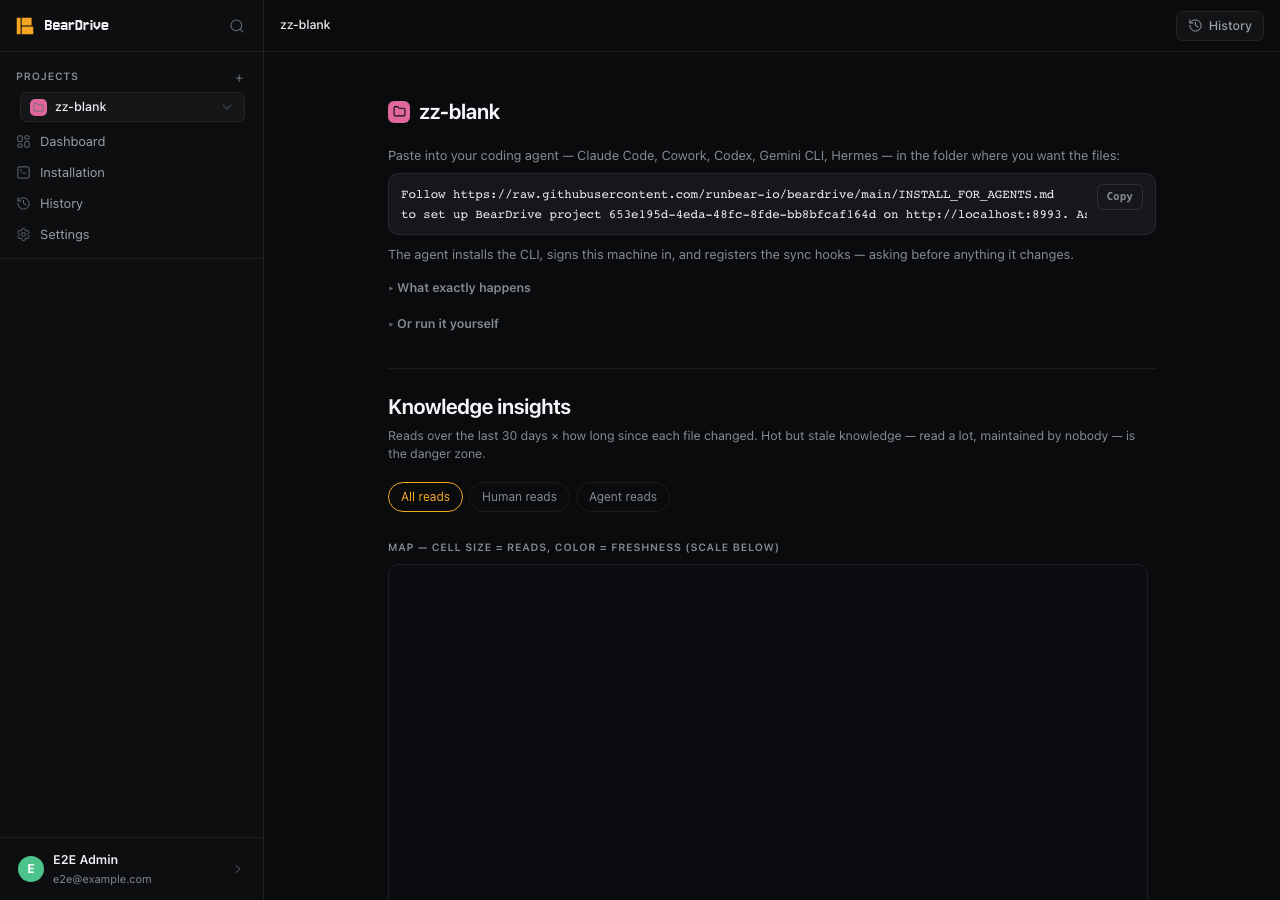

Project home (/<project-id>) — same message, no second CTA under ConnectGuide:

Before	After

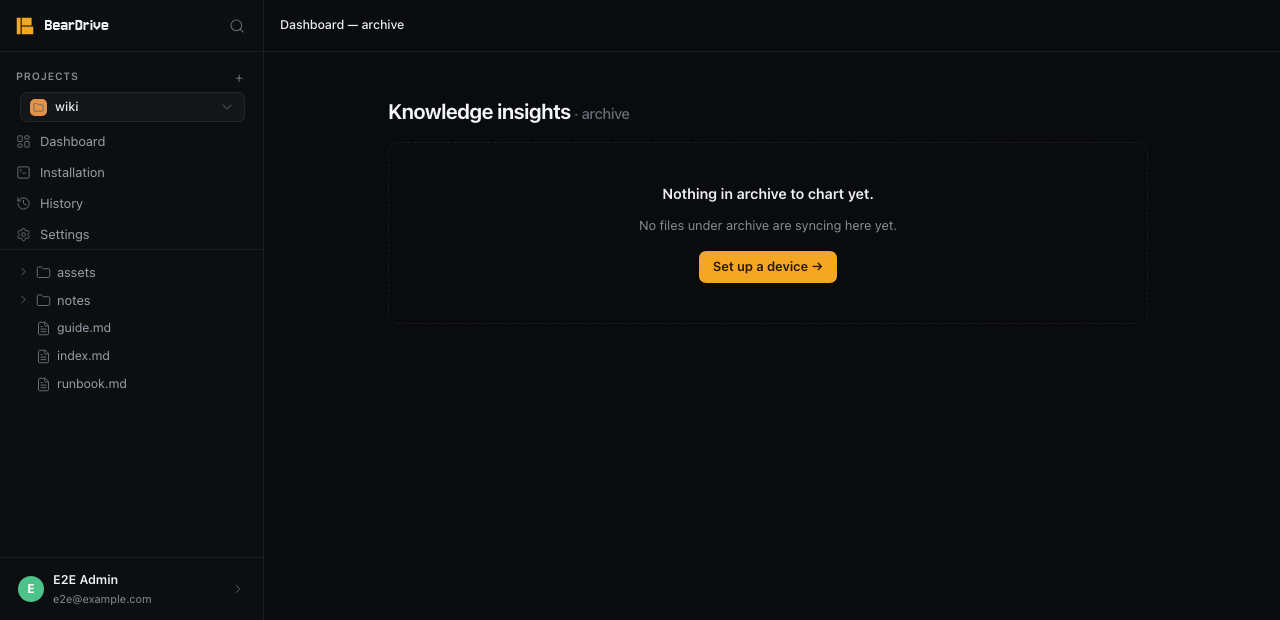

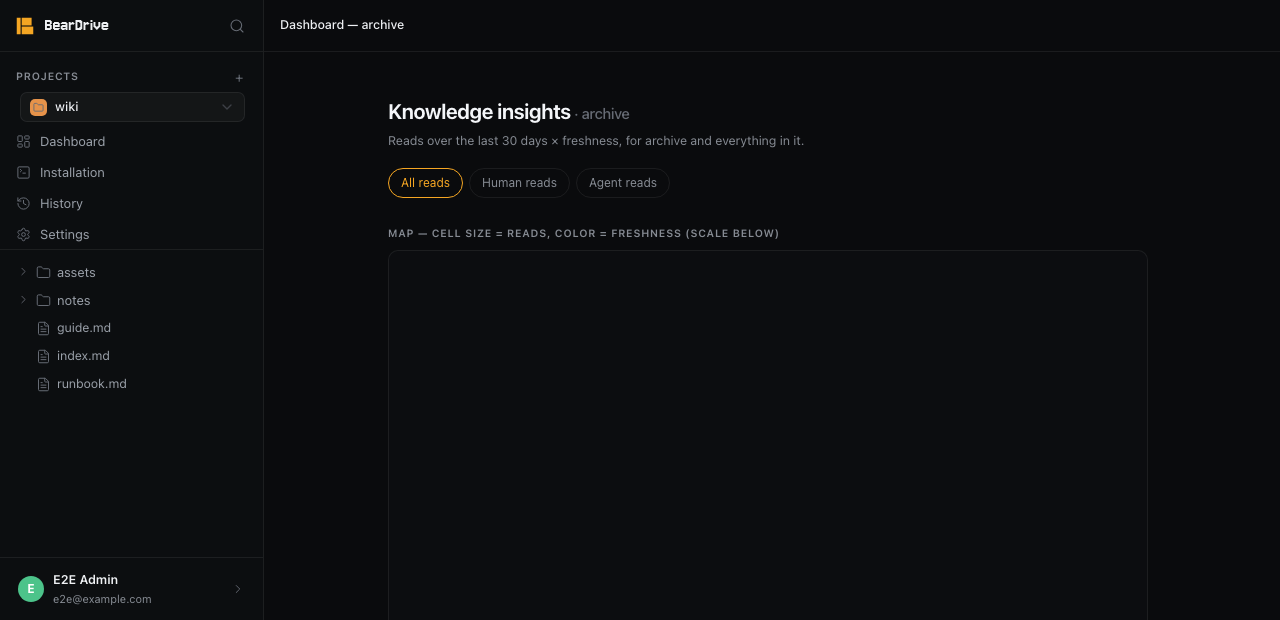

Folder-scoped route with nothing under it (/<project-id>/dashboard/archive):

Before	After

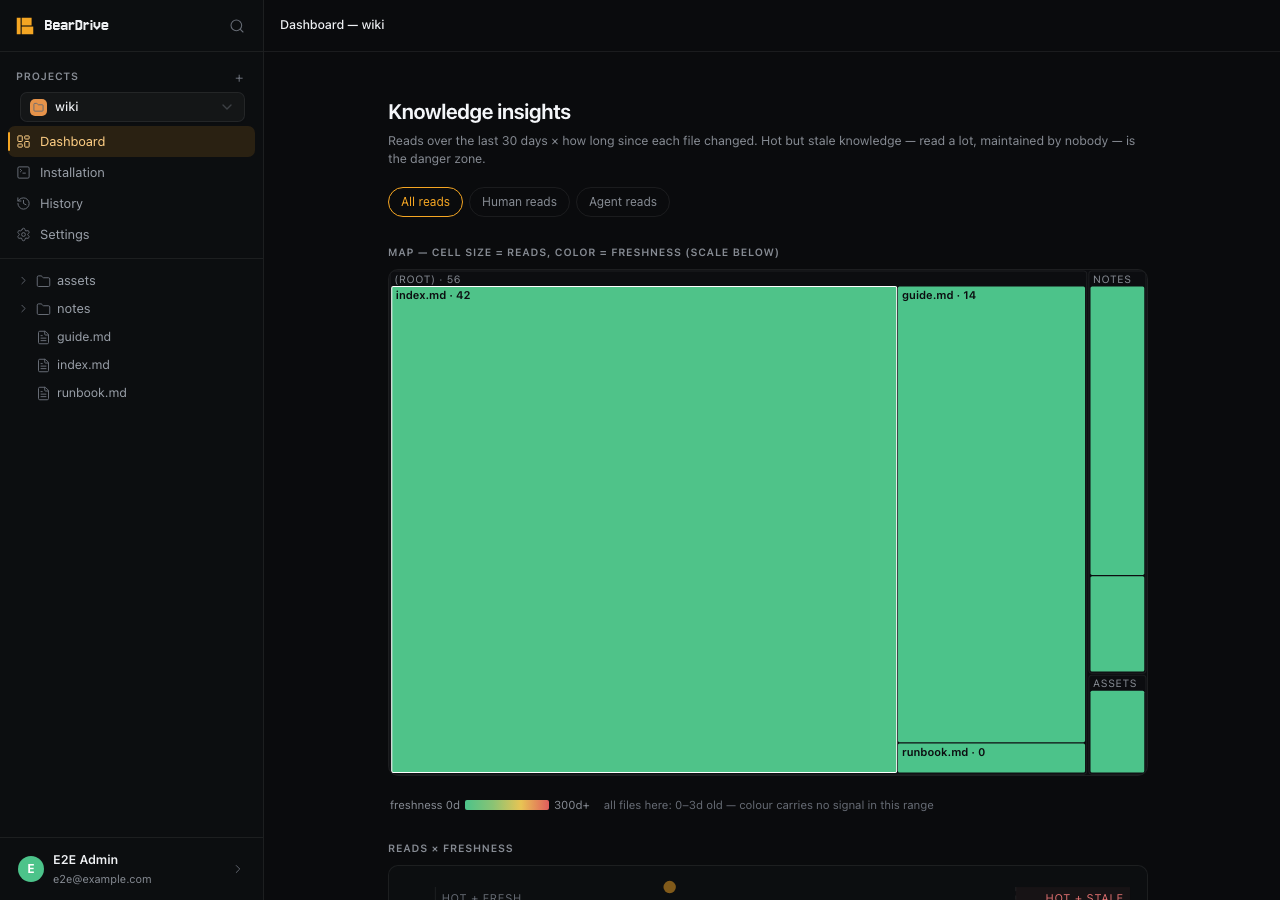

The populated project, unchanged — this is the "files-but-no-reads is untouched" criterion:

Before	After

What changed

Insights.tsx rendered its three panels unconditionally. pts derives from flatFiles, so a project with no files gave pts = [] — and then Treemap emitted an empty <svg> at its fixed 720×480 viewBox while Scatter drew its axes, threshold lines and three quadrant labels, all of which come from the HOT_READS/STALE_DAYS constants rather than from data. Only HotPath guarded, and its message ("No reads in the window yet") is the wrong claim for a project that has no files at all.

One early return, placed one level up from the charts — where the three <h3>s and the lens switcher also live, which is what makes "three headers over nothing" go away too. Treemap and Scatter keep no guards of their own.

Two new optional props on Insights:

• installHref — a real <a> rather than a callback, routed through nav.ts's linkProps so it stays copyable and middle-clickable while still navigating synchronously in-app. The dashboard route passes it; the project home doesn't, since ConnectGuide directly above it is the install guide and a second button six inches under the first reads as two different steps. (This was the plan's flagged judgment call — one prop to flip if you'd rather have it in both places.)
• loading — not in the plan, and needed. useTree starts with flatFiles = [], so without it the guard fires on the first frame of every dashboard load and a populated project flashes "This project has no files" before the charts arrive. Verified absent: a polling check during a cold load of the seeded wiki never observes .in-blank.

Gated on scoped.length, never on pts.some(p => p.reads) — files-with-no-reads is the other zero state and it was already right (Treemap pads every file to reads + 1 so unread files keep a sliver).

CSS: .in-blank for spacing on top of the existing .dl-empty, plus text-decoration: none added to the existing .pbtn rule now that it also styles an anchor. No new tokens.

Deviation from the plan

The plan's step 1 says land BEA-49 first, because its orphans list belongs in this guard (a project with zero files but orphaned heat rows should still chart). #100 is open and unmerged, so this takes the plan's own stated fallback: the condition is !scoped.length, with the comment above it naming BEA-49 and what joins it. The two PRs will conflict in Insights.tsx; whichever merges second re-derives the guard as !scoped.length && !orphans.length.

Acceptance

• go build ./..., go vet ./..., go test ./... — all pass.
• npm run e2e — 99 passed, including two new cases in dashboard.spec.ts: the empty project (no .in-chart, no "hot + stale" anywhere in the body, message contains "no files", CTA href is /<id>/install) and a no-regression case asserting the seeded project still renders .in-treemap with no .in-blank. The empty project is created and deleted at runtime — a permanent fixture named before wiki would move where the app lands and break home.spec.ts.
• frontend/check-dist.sh — internal/webapp/static is fresh.
• Manually verified the folder-scoped route: message names the scope, 0 charts, CTA href correct.

Architecture changes

None — Insights is already in architecture/webapp-frontend.md and no type or relationship moves. Two optional props on an existing component.

Build session

cd $(git worktree list | grep bea-51-ph-scan-bug-knowledge-insights | awk '{print $1}') && claude --resume f8533811-1811-494d-9758-001bd2457ea4

(Only works on the machine that ran the build.)
