feat(webapp): history can be narrowed by path, author and date (BEA-67)

[ssowonny]

TL;DR

• History was a flat scroll — no filter, no search, no date range. Fine at 11 rows, useless after a month of agent writes.
• Now there's a filter bar: path contains, author, date range. It narrows the whole feed, not the page you can see.
• Filters live in the URL, so a narrowed feed is a link you can send, survives reload, and Back undoes it.
• API gained q/user/since/until on GET /api/p/<id>/history — useful on its own, paging under a filter still walks every match.
• Known gap: export is still missing (deliberately its own issue — the complaint here was the unreadable scroll).

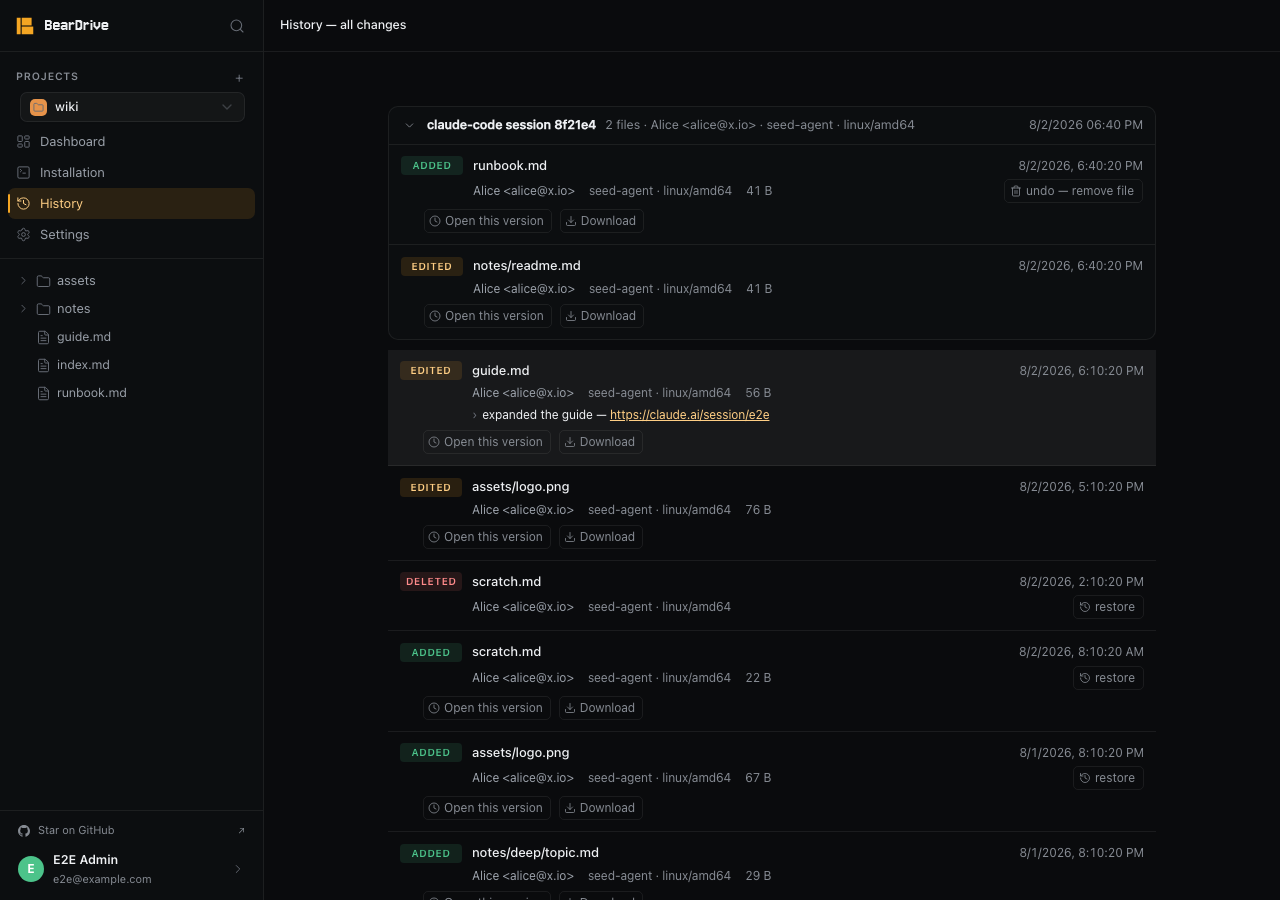

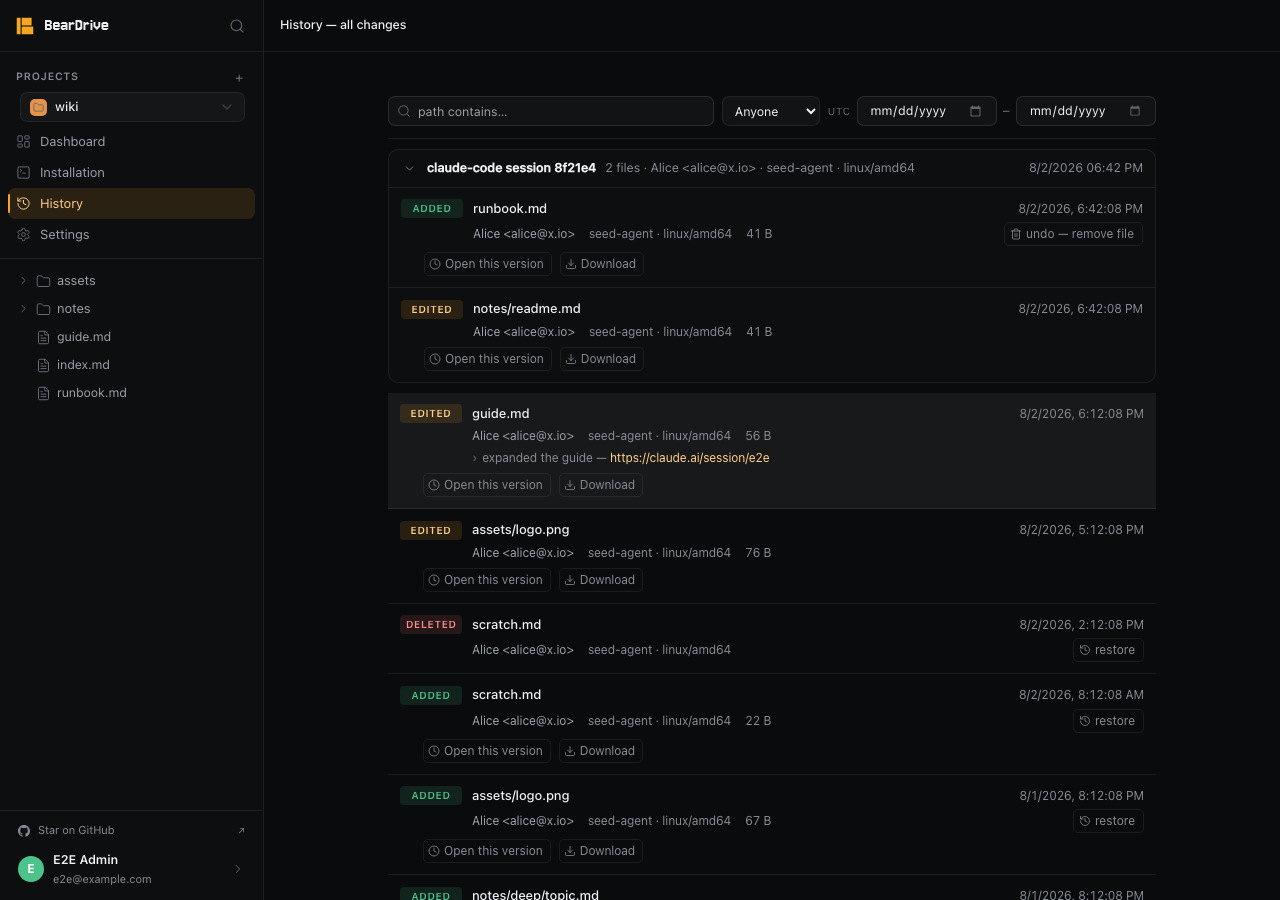

Before / after

Before	After

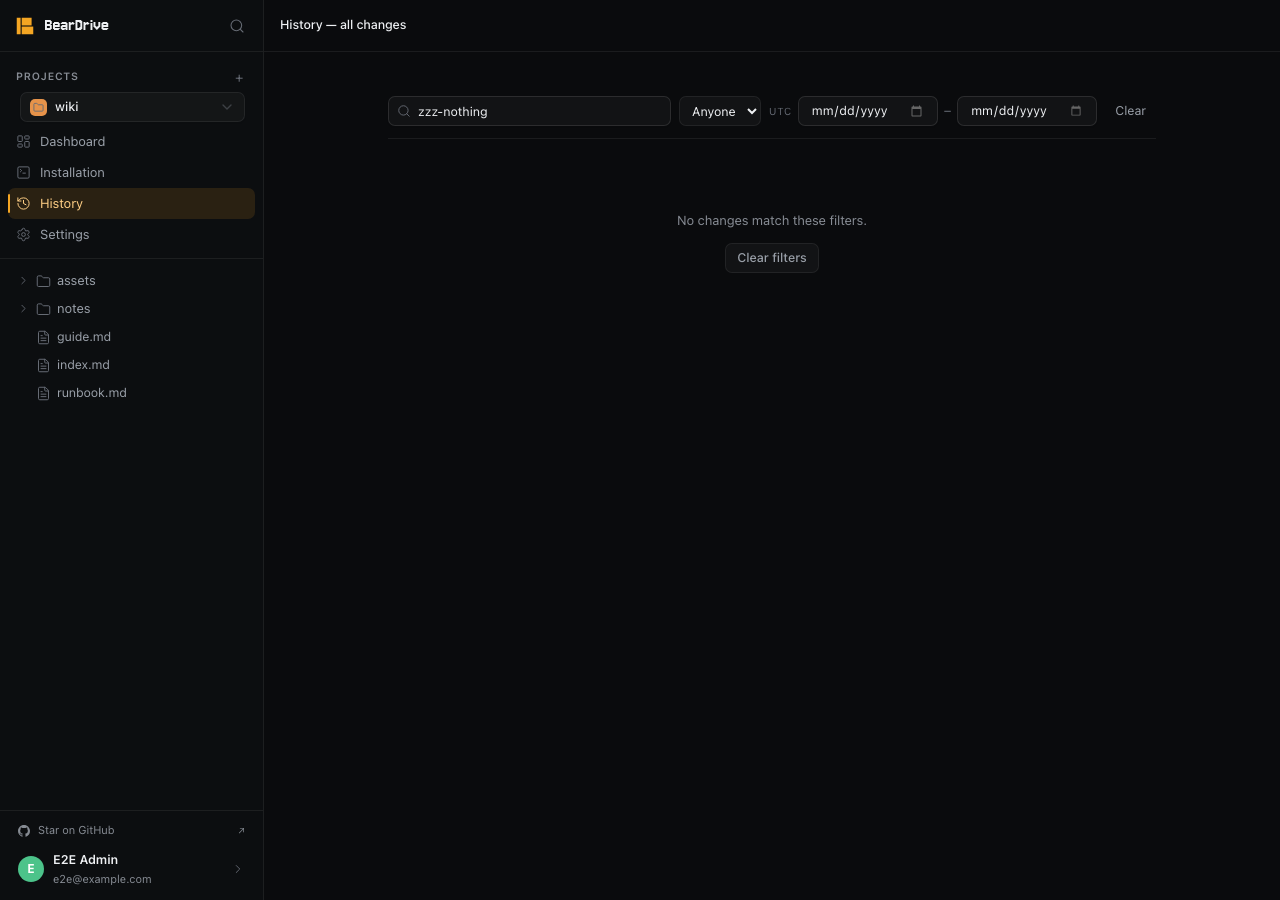

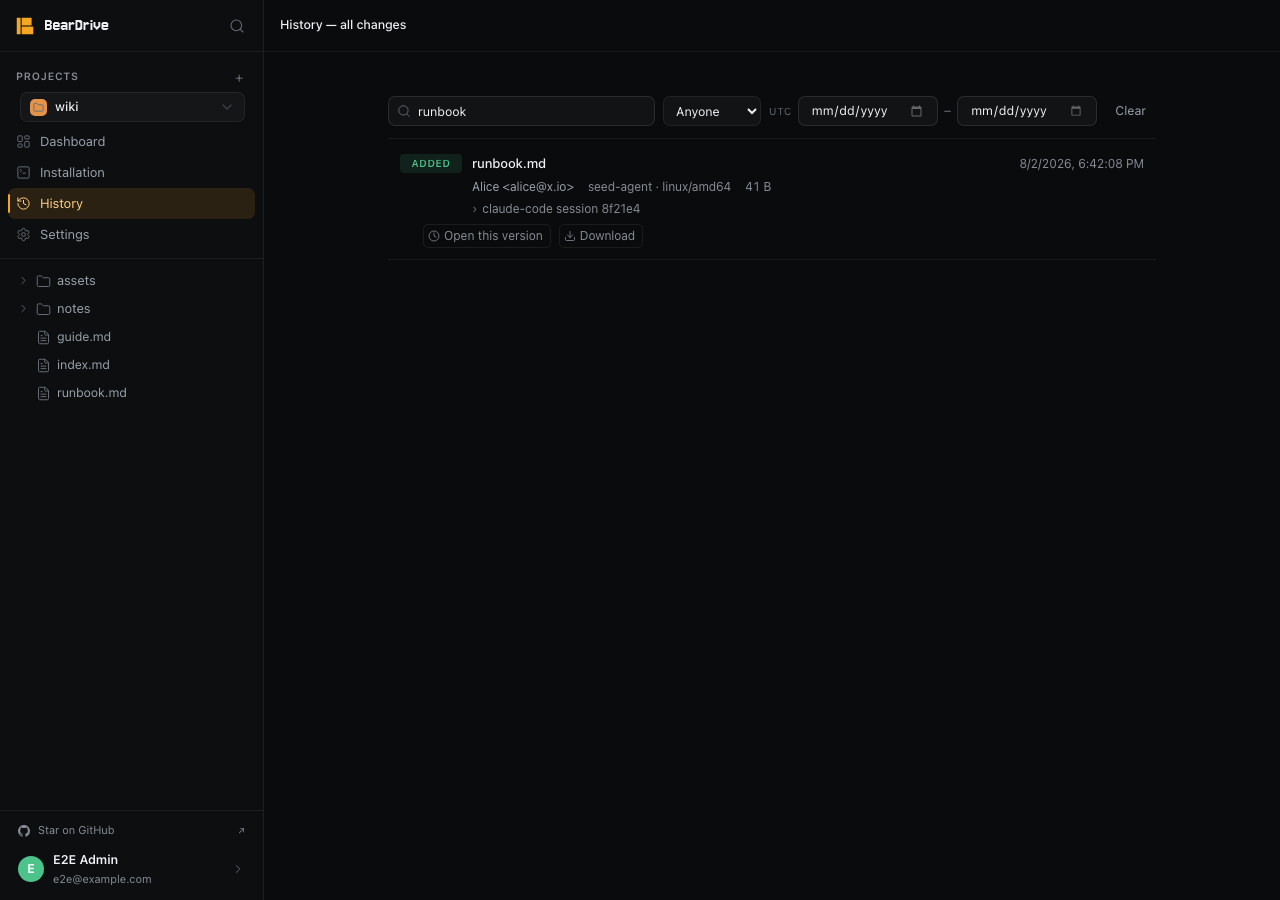

Filtered, and the no-match state that offers a way back out:

?q=runbook	?q=no-such-file

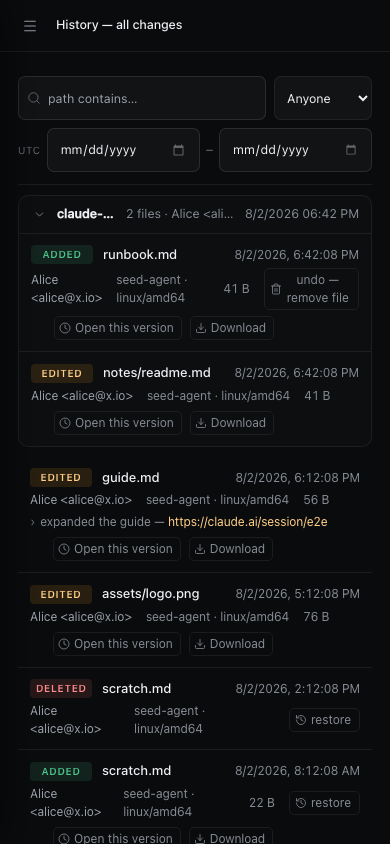

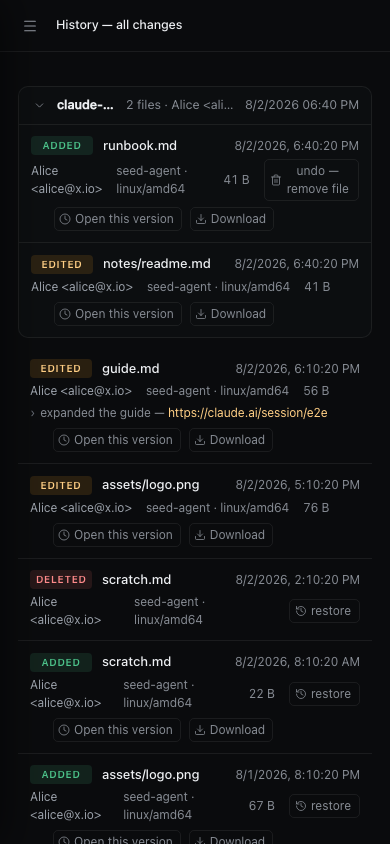

On a phone the bar wraps to two rows and every control grows to a 44px tap target:

Before (390px)	After (390px)

The API

GET /api/p/<id>/history takes four new params, all optional, all composing with each other and with the existing path=/prefix= scoping:

Param	Meaning
q=	case-insensitive substring of the path
user=	exact account (op.User)
since=	inclusive lower bound — RFC3339, or a bare YYYY-MM-DD read as a UTC day
until=	inclusive upper bound — a bare date includes the whole day

The filters are applied in the same walk as path/prefix, before the sort and before the cursor skip. That is the whole reason paging needed no new machinery: next_cursor keeps meaning "the next matching entry". Filtering after the skip would silently drop rows, which is what TestHistoryFilterPaging exists to catch.

Two smaller decisions:

• kinds[] is still computed over every op before any filter, so a filtered view never relabels an edit as an add.
• since > until is not an error — it means "nothing", and returns nothing. A malformed date is a 400, matching the existing invalid n / invalid cursor posture.

The filter bar

• State is Route.filters, parsed from the query string of the existing history route (/<project>/history[/<path>]?q=&user=&since=&until=). Navigation is a push, so Back undoes a filter like any other navigation.
• Because the query string is already part of the TanStack query key, changing a filter resets paging for free.
• The author <select> is built from the accounts seen in the loaded feed and accumulates — rebuilding it from the current feed would leave a reader who filtered by one author with only that author to pick from, and "Anyone" as the only way out.
• Dates are bare YYYY-MM-DD and the server reads them as UTC days. The bar says UTC out loud rather than converting silently, which would drop an evening's changes for anyone east of UTC.
• Zero matches gets "No changes match these filters." with a Clear filters button; the bare "No history yet." stays for an unfiltered empty feed.
• The bar renders for all three shapes — whole project, folder subtree, and a single file's version list.

Deviation from the plan

The plan wanted the author control to also accept free text for an account not in the loaded window. Shipped as a plain <select> instead: a select is discoverable where a datalist is not, and the accumulating list plus a hand-written ?user= in the URL (which the bar then shows as the selection) covers the same ground without a second input. Say the word if you want the free-text field back.

Architecture changes

architecture/webapp-frontend.md: router gains Route.filters and historyFilterQuery/hasHistoryFilters, and urlForView gains a fourth filters argument; components gains HistoryFilters. No relationships changed. webapp-server.md is untouched — it doesn't draw the history handler, and no Go type changed shape.

Drive-by in the same file (second commit): the escaped quotes in the NewProjectDialog note broke the whole classDiagram, so webapp-frontend.md has been rendering as an error box rather than a diagram. Same on origin/main; fixed here because it is the file this PR edits and the fix is one line.

✅ added · ❌ removed (strikethrough) · unmarked = unchanged

flowchart TB
    Browser["Browser"]
    router["<div style='text-align:left'><b>router</b><br/>+VIEW_ROUTES dashboard history install settings<br/>+LEGACY_VIEWS insights to dashboard<br/>+top-level routes orgs billing<br/>+parseRoute(url, mode) Route<br/>+Route.version ?v= sha, one past version<br/>+Route.trailingSlash notes/ resolves, then replaces to notes<br/><span style='background:#22c55e55;padding:0 4px;border-radius:3px'>✅ +Route.filters q user since until, history feed</span><br/><span style='background:#22c55e55;padding:0 4px;border-radius:3px'>✅ +historyFilterQuery(filters) / hasHistoryFilters</span><br/>+urlForPath(path, projectId, version)<br/><span style='background:#22c55e55;padding:0 4px;border-radius:3px'>✅ +urlForView(view, projectId, target, filters) / encodePath / decodePath</span><br/><span style='background:#ef444455;padding:0 4px;border-radius:3px'>❌ <s>+urlForView / encodePath / decodePath</s></span></div>"]
    components["<div style='text-align:left'><b>components</b><br/>FileView FolderListing FileTree<br/>HistoryView HistoryRow <span style='background:#22c55e55;padding:0 4px;border-radius:3px'>✅ HistoryFilters</span> DiffView VersionBanner<br/>Insights ShareDialog NewProjectDialog<br/>ShareBanner SharesTable AdminTable<br/>OrgAdmin HubSettings ProjectSettings<br/>Palette shell AccountBar ...</div>"]
    nav["nav"]
    Note["HistoryFilters drives the SERVER<br/>(?q= ?user= ?since= ?until=), never the loaded page:<br/>filtering what is on screen would lie about<br/>everything below the fold and break next_cursor.<br/>Its state is Route.filters, so a narrowed feed is<br/>linkable, survives reload, and Back undoes it."]
    Browser --> router
    Browser --> components
    components --> nav
    components -.- Note
    classDef added fill:#22c55e22,stroke:#22c55e,stroke-width:2px
    classDef removed fill:#ef444422,stroke:#ef4444,stroke-width:2px,stroke-dasharray:4 3
    classDef noteBox fill:#88888822,stroke:#888888,stroke-dasharray:2 2
    class Note noteBox

Loading

Testing

• go test ./... — all pass. New: TestHistoryFilters (each param alone, case-insensitivity, both-ends-inclusive dates, RFC3339 bounds, every composition, composition with path=/prefix=), TestHistoryFilterPaging (n=2 + cursor walks the whole filtered set, no repeats, no gaps), TestHistoryBadDateRange (400, and no feed body).
• npm run e2e — 113 passed. New e2e/history-filters.spec.ts covers filter → narrowed feed → reload keeps it → Back restores → Clear empties the query string, the no-match empty state, the author dropdown, and the folder/per-file shapes.
• npm test (router round-trip), go vet ./..., ./check-dist.sh — clean.
• The e2e seed gained a second author (bob@x.io on one file) so the author filter has something to exclude.

Build session

cd $(git worktree list | grep bea-67-ph-scan-bug | awk '{print $1}') && claude --resume ea3398de-48fc-4cc7-97aa-517b0fe9b905

(only works on the machine this ran on)
