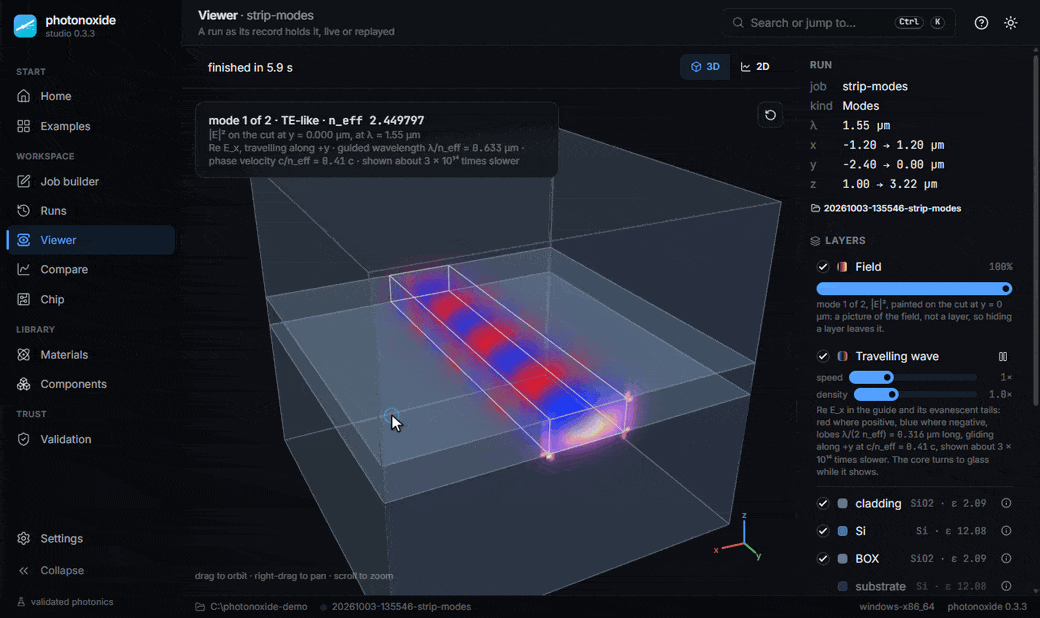

The studio: a strip's mode travelling in 3D; a ring's spectrum by 2D FDFD building up live (sped up) and the ring lit at resonance; an MZI wired on the chip and simulated.
photonoxide is a photonics library for Rust and a program to use it with. The library computes
waveguide modes, fields and S-parameters by frequency-domain finite differences, and connects
components into circuits that it simulates, differentiates and optimizes. Every method is
checked against an analytic solution or a published result, and the checks are collected in a
validation report that CI keeps current. The program, photonoxide, is a
studio: a desktop window where you build jobs and chips, watch them run in 3D and 2D, and read
the report. The plan goes on to FDTD, thermal and electro-optic modulators, inverse design,
layout and tape-out; see the roadmap.
Alpha. The latest release is 0.3.3: materials, mode solvers and FDFD, and the studio. The 0.4 milestone, components and circuits, is on the main branch and nearly complete; it isn't on crates.io yet. The API will change between milestones.
The project's pages are at tachsin.gr/projects/photonoxide: the methods, the examples with their output, the validation report and the roadmap.
In the 0.3.3 release:
- Materials with provenance: Sellmeier, Cauchy, Drude and Lorentz models with their source, validity range and temperature, and refractiveindex.info files read with theirs (Materials). A catalogue of silica, silicon, silicon nitride, lithium niobate (congruent, MgO-doped and thin film), GaAs, AlGaAs, InGaP, InP and AlN: index models, crystal symmetry, χ⁽²⁾ and Pockels tensors, every number read from its paper.
- Slab modes: the three-layer slab exactly, any multilayer by transfer matrices (bound modes, leaky waves and plane-wave reflection), and planar profiles by finite differences.
- Waveguide cross-sections: full-vector modes by finite differences, with a PML for leaky modes and mirror walls; Hadley's equations for second-order accuracy at dielectric corners; bends; the effective index method and Marcatili's approximation, each with its error stated; group index, dispersion and loss; fields, power and coupling.
- FDFD: 2D and 3D on Yee's grid with stretched-coordinate PMLs and the scheme's exact power flux; in 2D, mode ports and S-parameters and adjoint gradients; sparse direct solves (faer) and QMR.
- Jobs and runs: a job is a TOML file (
modes,fdfdorstructure); every run is recorded as events and replays exactly.
On the main branch, for the next release:
- Circuits: components with ports, parameters, a fidelity and their error against their source; netlists solved as one sparse system, checked against Filipsson's sub-network growth; nested circuits; the circuit adjoint, every parameter's gradient from one transposed solve; optimization by genoxide's L-BFGS-B, Adam and CMA-ES (in the examples).
- The first components: waveguide and bend from the mode solvers, phase shifter, directional coupler, 1 × 2 and 2 × 2 MMIs, Y-branch, all-pass and add-drop rings, MZI, and a 2D FDFD job's sampled S-matrix.
- Compact models and Touchstone: vector fitting with its fit error, stability and passivity; models over parameters, polynomial or piecewise linear with an exact test of uniform stability; Touchstone 1.1 and 2.0 files read and written, as the measured fidelity.
- 3D FDFD ports: the grid's own full-vector port modes, one-way sources and a reciprocal S-matrix.
- More materials: AlN's index (Rigler 2015), AlGaN films (Rigler 2013), and InGaP beyond Tanaka's range (Ferrini 2002).
Getting started goes from cargo add to a strip waveguide's modes.
The API is on docs.rs.
photonoxide with no arguments opens the studio, a window on a workspace folder of jobs, runs
and chips:
- Examples: the simulations of
jobs/and the published results ofexamples/built in, each run in one click and checked against its paper as it prints. - Job builder: a form for each kind of job, the device previewed in 3D as you type, the TOML beside it, and the library checking the job as it changes.
- Runs, Viewer and Compare: runs played live or replayed; in 3D, the layers as solids and the selected mode travelling along its guide as a volume; in 2D, fields, modes, S-parameters and spectra, with a slider through a sweep's points; several runs' sweeps and spectra on shared axes.
- Materials: the catalogue, each model plotted over its range with its equation, its coefficients and tensors, and its papers.
- Validation: the release's report, with its math rendered, and the same report run on your machine.
- Settings: every daisyUI theme, the workspace folder, tips and updates.
- On the main branch: Components, the component library with each kind's S-parameters recomputed as its parameters move and Touchstone import and export, and Chip, where components are placed, wired port to port, checked and simulated.

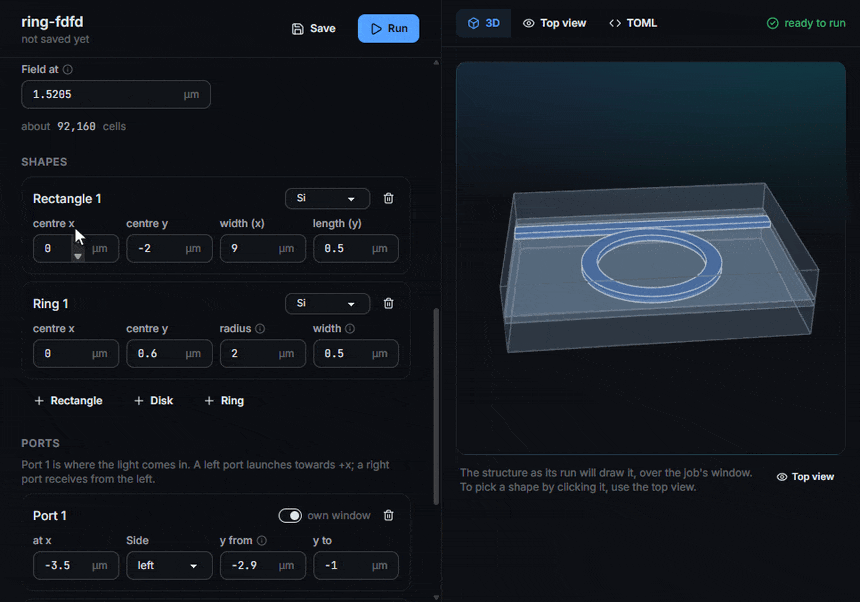

 Job builder: the ring's radius and place edited in the form; the 3D preview follows. |

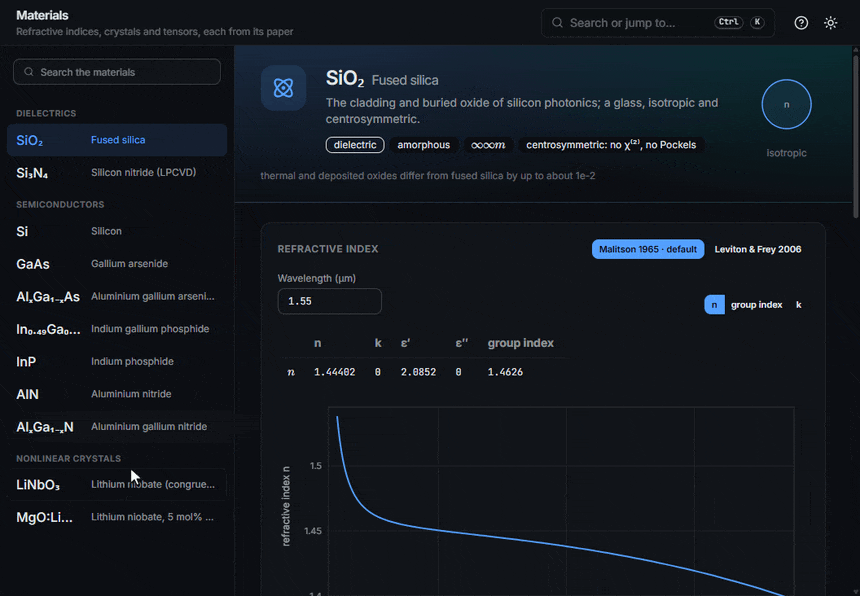

 Materials: LiNbO₃'s no and ne read off the plot; AlGaAs as its aluminium fraction moves. |

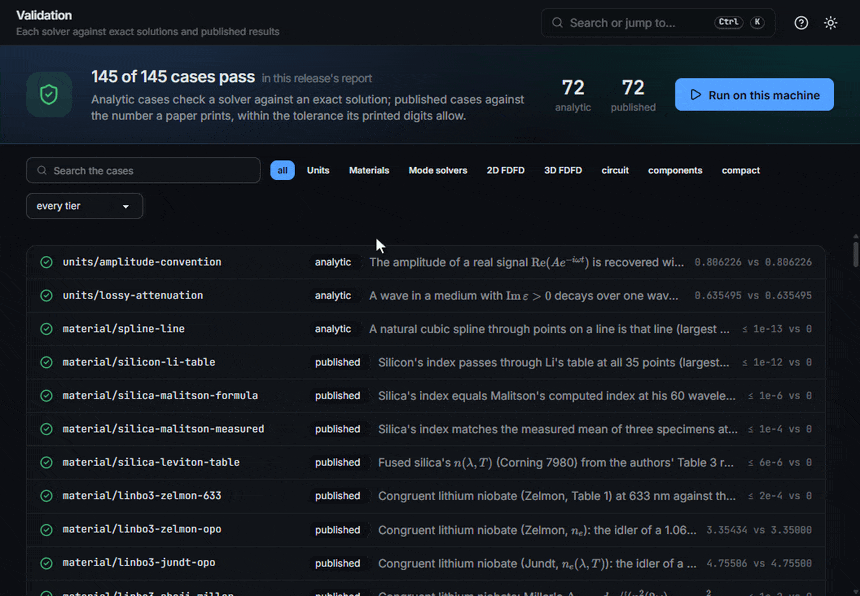

 Validation: cases looked up and opened, each against its exact solution or paper. |

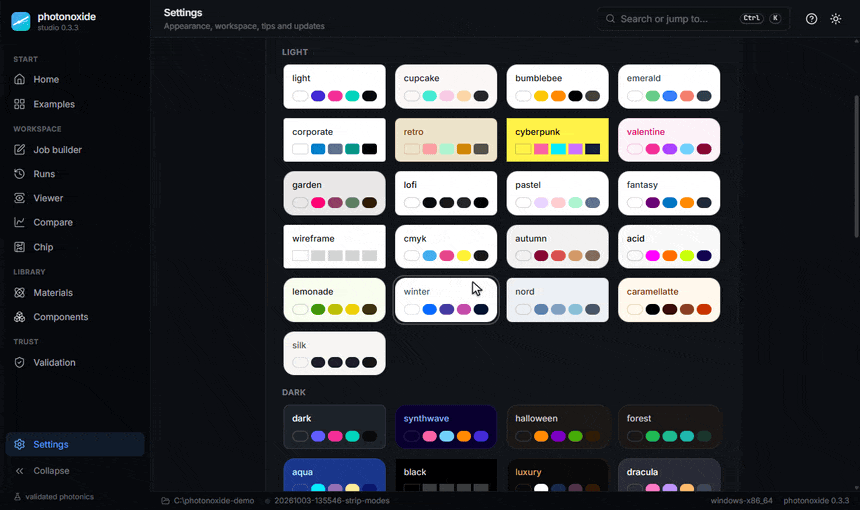

 Themes: any daisyUI theme, or photonoxide's light and dark; the 3D view follows. |
The same program runs a job (photonoxide run job.toml, live in the window or --headless),
replays a run (photonoxide view runs/<run>), runs a built-in example and checks the report.
studio/README.md describes every page and command, and how to build it.
The library:
cargo add photonoxideIt is pure Rust, with no C, Fortran or Python dependencies, so cargo build is all it needs.
For the work on the main branch:
photonoxide = { git = "https://github.com/tachsin/photonoxide" }.
The program: each release has it for
Linux x86_64 and ARM64 (.AppImage, .deb, .rpm, .tar.gz), Windows x86_64 (an installer
that needs no administrator rights, and a portable .zip) and macOS (one universal .dmg for
Apple Silicon and Intel). An installed copy looks for a new release when it opens and every
hour, and updates itself with one click after checking the release's signature. The
downloads table has the details for each platform, clusters
included.
220 nm of silicon in oxide at 1550 nm, each material with its published dispersion, and the slab's modes solved exactly:
use photonoxide::material::{silica, silicon};
use photonoxide::mode::Polarization;
use photonoxide::mode::slab::Slab;
use photonoxide::units::{Length, Wavelength};
fn main() -> photonoxide::Result<()> {
let wavelength = Wavelength::um(1.55)?;
let si = silicon().refractive_index(wavelength)?.re; // Li 1980
let oxide = silica().refractive_index(wavelength)?.re; // Malitson 1965
let slab = Slab::new(oxide, si, oxide, Length::nm(220.0))?;
for (name, polarization) in [("TE", Polarization::Te), ("TM", Polarization::Tm)] {
for mode in slab.modes(polarization, wavelength) {
println!("{name}{}: n_eff = {:.4}", mode.order(), mode.effective_index());
}
}
Ok(())
}It prints TE0: n_eff = 2.8475 and TM0: n_eff = 2.0531. The
examples go further, each reproducing one published result and failing
when it disagrees with the paper:
cargo run --release --example strip_waveguideNothing is merged without an analytic test, a reproduction of a published result and a convergence test; adjoint gradients are checked against finite differences. The validation report has 143 cases, all passing:
- 70 analytic: closed forms and exact properties, such as the exact slab, Fresnel reflection, reciprocity, energy conservation, a ring's free spectral range, and the adjoints against finite differences.
- 72 published: results reproduced from papers and books, such as Li's and Malitson's tables, Hadley's corner problems, the leaky photonic-wire benchmark, Bogaerts's rings and Gustavsen and Semlyen's vector-fitting test. Six of them are measurements: the effective and group indices of three silicon wires from Dwivedi et al.'s Mach-Zehnder interferometers (2015), predicted from the wires' measured cross-sections and within the paper's own fabrication estimate.
- 1 cross-code: the 3D FDFD port mode against the mode solver. Comparisons with Meep, MPB, S4 and Ceviche come with the later milestones.
Each case states its source, tolerance and grid. The report is written by
photonoxide validate; CI fails when a case fails or when the committed report differs from the
one the code writes. The 19 examples each reproduce one paper's numbers,
and CI checks their output too.
| Milestone | Scope | Status |
|---|---|---|
| 0.1 Foundations | Units, materials with provenance, geometry, run records, the studio's first window, the validation harness | ✅ released |
| 0.2 Mode solvers | Slab, multilayer, full-vector 2D finite differences, EIM, bends, dispersion | ✅ released |
| 0.3 FDFD | 2D and 3D, mode ports, S-parameters, adjoints, an iterative 3D solver; Hadley's high-accuracy mode solver | ✅ released |
| 0.3.1 – 0.3.3 The studio and materials | The studio as a workspace (examples inside, the job builder, run comparison, updates by one click); rings and 3D previews; the travelling mode in 3D, sweeps in the viewer, the report's math, every theme; the materials catalogue | ✅ released |
| 0.4 Components and circuits | Components at several fidelities, netlists, the circuit adjoint, optimization through genoxide, compact models, Touchstone, 3D FDFD ports; the studio's component library and chip view | 🚧 on main; a preconditioner for high-contrast 3D FDFD is the last item |
| 0.5 FDTD | 2D and 3D Yee, CPML, subpixel smoothing, dispersive media, GPU | planned |
| 0.6 Thermal and electro-optic | Heat and electrostatics, thermo-optic phase shifters, Pockels modulators (thin-film lithium niobate first), travelling-wave electrodes | planned |
| 0.7 Inverse design | Adjoint topology and shape optimization, fabrication constraints, the 2D-to-3D pipeline, device and circuit co-design | planned |
| 0.8 Carrier modulators and signals | Drift-diffusion, plasma-dispersion modulators, time-domain circuits and eye diagrams, programmable meshes | planned |
| 0.9 Layout and PDK | GDSII and OASIS, parametric cells, routing, DRC, SiEPIC EBeam and Cornerstone | planned |
| 0.10 Tape-out | Submission packages, test structures, sign-off, openEBL and Cornerstone runs, measurements back | planned |
| 0.11 Fabrication realism | Process variation, lithography proxies, corners, yield, circuit variability | planned |
| 0.12 Semi-analytic | RCWA, eigenmode expansion, BPM | planned |
| 0.13 Device library | Validated devices, each a component at several fidelities | planned |
| 0.14 – 0.16 | Photonic crystals, metasurfaces, plasmonics, nonlinear and fiber optics, Kerr microcombs, quantum | planned |
| 1.0 | Stable API and the published validation report | planned |
The details, with what each item measured, are in ROADMAP.md; what each release changed is in CHANGELOG.md.
