Private orders. Verified settlement. Zero front-running.
Project Homepage · Live App · Watch Demo · Live Settlement TX · Setup Guide
GitHub README links open in the same tab. Use Project Homepage for links that open in a new tab.
Every trade you submit to a public DEX is broadcast in plaintext to every node in the network before it executes. Searcher bots read that stream and systematically extract value from your transaction before it confirms. This is not an edge case — it is the default behavior of transparent blockchains.
ShadowPool replaces that broadcast with a cryptographic commitment. Your order intent — price, size, direction — is hashed locally using a Poseidon function and submitted on-chain as an opaque fingerprint. An off-chain matching engine pairs crossing orders without ever seeing plaintext. A Groth16 zero-knowledge proof demonstrates that the match is valid. Settlement executes atomically on Sepolia.
No mempool exposure. No front-running surface. Full verifiability.
- Demo
- The Problem
- How It Works
- Settlement Lifecycle
- By the Numbers
- Technology Stack
- Architecture
- Circuit Design
- Repository Structure
- Deployed Contracts
- Getting Started
- CI Pipeline
- Security Notes
- License

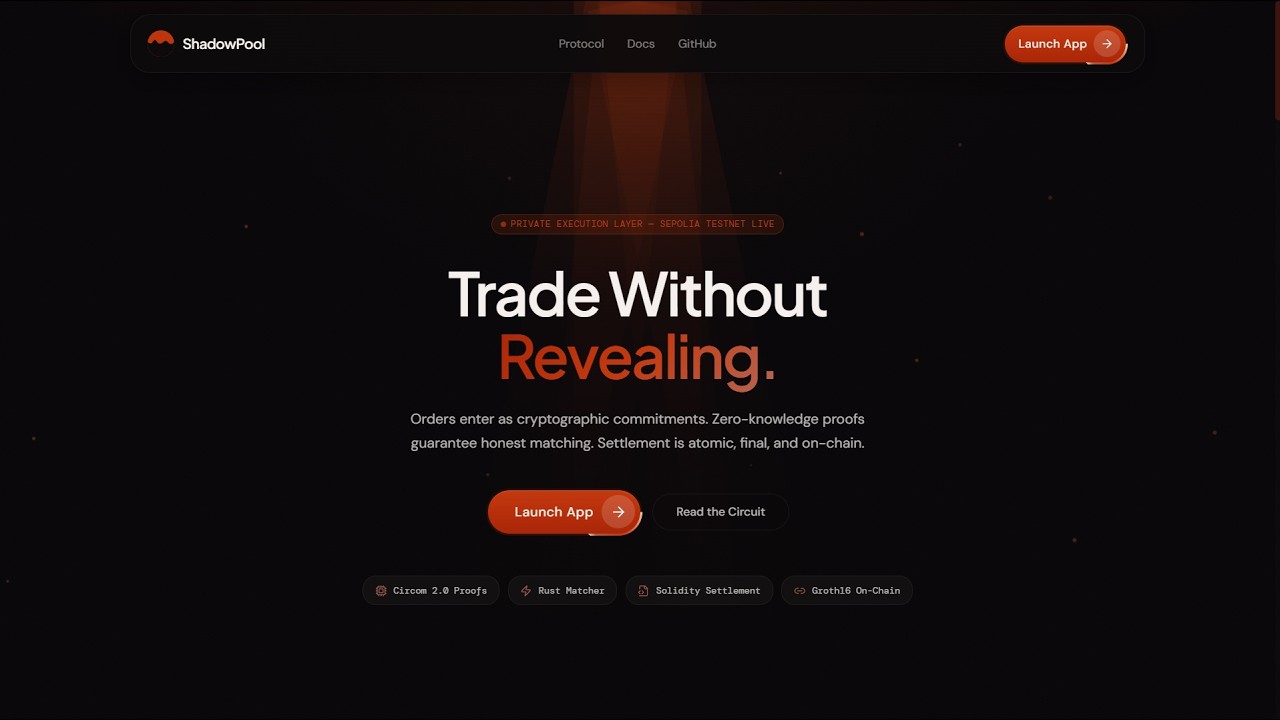

Watch on YouTube · Live App on Vercel · Live Settlement on Sepolia
The demo covers both wallets committing orders, the signature-gated secret upload, automatic matching, Groth16 proof generation (~8s), and the atomic OrdersSettled event confirming on Sepolia.
sequenceDiagram
participant Trader as You
participant Mempool as Public Mempool
participant Bot as MEV Bot
participant DEX as DEX Contract
Trader->>Mempool: submitOrder(ETH → USDC, price=3421, size=2.5)
Note over Mempool: Visible to every node on the network
Bot->>Mempool: Read intent (price, size, direction)
Bot->>DEX: Front-run: buy ETH before you
Trader->>DEX: Your transaction executes at worse price
Bot->>DEX: Back-run: sell ETH for profit
Note over Trader: You lost value to a bot that read your mempool tx
The 12 seconds between submitting a transaction and it being mined are a wide-open attack window. Searchers run sophisticated bots that detect profitable trades and insert their own transactions ahead of yours using higher gas fees. This is structural, not accidental.
ShadowPool closes that window entirely by never broadcasting the trade intent in the first place.
flowchart TD
subgraph Browser["Browser (your machine)"]
Input["Price · Amount · Nonce · Salt"]
Poseidon["Poseidon Hash\n(circomlibjs WASM)"]
Hash["Commitment: 0x1a4f…c9b3"]
Sign["Sign upload message\n(EIP-191)"]
end
subgraph Chain["Ethereum Sepolia"]
OB["OrderBook Contract\nstores commitment + escrow"]
end
subgraph Matcher["Matcher Service (Fastify)"]
DB["Supabase — AES-256-GCM\nencrypted secrets"]
Engine["Matching Engine\nprice cross + equal size"]
Worker["Prover Worker\nspawns child process"]
end
subgraph Prover["Groth16 Prover (snarkjs)"]
Witness["Witness generation"]
Proof["fullProve()\n~8.4s"]
end
subgraph Settlement["Settlement Contract"]
Verify["Verify proof on-chain"]
Release["Release escrow to both traders"]
end
Input --> Poseidon --> Hash
Hash -->|"submitCommitment()"| OB
Hash --> Sign -->|"POST /v1/secrets"| DB
OB -->|"CommitmentSubmitted event"| Matcher
DB --> Engine --> Worker --> Witness --> Proof
Proof -->|"settle(proof, commitments, price)"| Verify
Verify --> Release
Five steps. The only information that ever touches a public network is the Poseidon hash.
sequenceDiagram
participant WalletA as Wallet A (Buy)
participant WalletB as Wallet B (Sell)
participant Contract as OrderBook
participant Matcher as Matcher Service
participant Prover as Groth16 Prover
participant Settlement as Settlement Contract
WalletA->>Contract: submitCommitment(hash_A) + escrow ETH
WalletA->>Matcher: POST /v1/secrets (signed)
WalletB->>Contract: submitCommitment(hash_B) + escrow ETH
WalletB->>Matcher: POST /v1/secrets (signed)
Matcher->>Matcher: findCrossingPair()\nprice_buy ≥ price_sell\nassetAmount_A === assetAmount_B
Matcher->>Prover: spawn prover process (stdin JSON)
Prover->>Prover: generate Groth16 proof (~8.4s)
Prover-->>Matcher: { txHash, blockNumber }
Matcher->>Settlement: settle(pA, pB, pC, hashA, hashB, price)
Settlement->>Settlement: verify(proof, publicSignals)
Settlement->>WalletA: release escrow
Settlement->>WalletB: release escrow
Note over WalletA,Settlement: OrdersSettled emitted on-chain
From second commit to on-chain settlement in under 30 seconds on Sepolia (network latency + ~8s proof time + 1 block confirmation).
| Metric | Value |
|---|---|
| R1CS Constraints | 1,746 |
| Average Proof Time | 8.4s |
| Gas per Settlement | ~142,000 |
| Proving System | Groth16 (BN128 curve) |
| Encryption at Rest | AES-256-GCM |
| Signature Auth | EIP-191 personal_sign |
| Deployment | Ethereum Sepolia |
| CI Jobs | 3 (frontend · prover · matcher) |
What makes this end-to-end:
- The circuit and the matcher share the same matching rules. A pair that does not satisfy price crossing and equal amounts will never reach the prover, because the matcher enforces both constraints before creating a job.
- Secrets are encrypted at rest. Supabase only holds ciphertext. The
MATCHER_SECRET_KEYis the only path to decryption. - The prover wallet is completely separate from trader wallets. It pays settlement gas; it never holds user funds.
- Every proof that passes
Settlement.settle()is a Groth16 proof verified by a Solidity verifier generated directly from the circuit's proving key. There is no trusted execution environment or multisig shortcut.
| Layer | Technology | Role |
|---|---|---|
| ZK Circuit | Circom 2, circomlibjs | Poseidon hash, commitment formation, match validation |
| Prover | snarkjs, Groth16, BN128 | Browser-side commitment computation + server-side proof |
| Frontend | React 19, Vite, TypeScript | Trading terminal, docs, landing page |
| Wallet | wagmi, viem, MetaMask | On-chain interaction, signing |
| Matcher API | Fastify, Zod | Secret upload, status polling, CORS auth |
| Database | Supabase (Postgres) | Encrypted order secrets, match job queue |
| Prover worker | Node.js child process | CPU-isolated proof generation |
| Contracts | Solidity, ethers.js v6 | Commitment, escrow, settlement, verification |
| Chain watcher | ethers.js WebSocket | Live CommitmentSubmitted event subscription |
| CI | GitHub Actions | Frontend build · prover build · matcher typecheck |
| Container | Docker (multi-stage) | Prover + matcher in one image |
flowchart LR
subgraph FE["Frontend (Vercel)"]
UI["React App"]
WASM["circomlibjs WASM\nPoseidon hash"]
end
subgraph Chain["Ethereum Sepolia"]
OB["OrderBook\n0x2C0E…3908"]
ST["Settlement\n0xF233…dD2"]
VR["Verifier\n0x0b5e…7eC"]
end
subgraph SVC["Matcher Service"]
API["Fastify API\n:3001"]
ENG["Matching Engine"]
WKR["Prover Worker"]
WATCHER["Chain Watcher\nethers WebSocket"]
end
subgraph DB["Supabase"]
SEC["order_secrets\nAES-256-GCM"]
JOBS["match_jobs"]
end
subgraph PRV["Groth16 Prover"]
SVC2["service-entry.js\nstdin JSON pool"]
SNJ["snarkjs fullProve()"]
end
UI -->|"submitCommitment()"| OB
UI -->|"POST /v1/secrets"| API
API --> SEC
OB -->|"CommitmentSubmitted"| WATCHER
WATCHER --> ENG
SEC --> ENG
ENG --> JOBS
JOBS --> WKR
WKR -->|"spawn"| SVC2
SVC2 --> SNJ
SNJ -->|"settle()"| ST
ST --> VR
The ZK circuit (shadowpool_match.circom) proves exactly two statements without revealing either input:
1. Commitment validity — each trader's commitment hash is the Poseidon hash of their private inputs (amount, price, nonce, salt). The prover knows the preimage; the verifier knows only the hash.
2. Match validity — the two orders satisfy the crossing condition: price_buy >= price_sell and assetAmount_A == assetAmount_B. The clearing price is the midpoint.
flowchart TD
subgraph Private["Private Inputs (never on-chain)"]
PA["assetAmount_A\nlimitPrice_A\nnonce_A\nsalt_A"]
PB["assetAmount_B\nlimitPrice_B\nnonce_B\nsalt_B"]
end
subgraph Public["Public Signals (on-chain)"]
HA["commitmentHash_A"]
HB["commitmentHash_B"]
CP["clearingPrice"]
end
PA --> POS1["Poseidon()"]
PB --> POS2["Poseidon()"]
POS1 -->|"assert equal"| HA
POS2 -->|"assert equal"| HB
PA & PB --> MATCH["assert price_buy >= price_sell\nassert amount_A == amount_B\ncompute clearingPrice"]
MATCH --> CP
1,746 R1CS constraints. The circuit is compiled with Circom 2 and uses the standard BN128 curve. The proving key lives server-side only; the frontend runs Poseidon computation via circomlibjs WASM to form the commitment before any on-chain action.
ShadowPool/
├── circuits/ ZK circuit source and build artifacts
│ └── shadowpool_match.circom Poseidon commitment + match constraint
├── contracts/ Solidity contracts
│ ├── OrderBook.sol Commitment registry + escrow
│ ├── Settlement.sol Groth16 verification + fund release
│ └── Verifier.sol Auto-generated from snarkjs
├── prover/ TypeScript Groth16 prover
│ ├── src/matcher.ts Order pairing logic (mirrors matcher)
│ ├── src/prover.ts snarkjs fullProve wrapper
│ ├── src/submitter.ts On-chain settlement submission
│ └── src/service-entry.ts stdin JSON entrypoint for child process
├── services/matcher/ Automated backend service
│ ├── src/routes/ POST /v1/secrets · GET /v1/status/:hash
│ ├── src/engine/matcher.ts Bid/ask crossing + amount rule
│ ├── src/engine/worker.ts Prover child process manager
│ ├── src/chain/watcher.ts ethers.js WebSocket event subscription
│ ├── src/crypto/aes.ts AES-256-GCM encrypt/decrypt
│ └── Dockerfile Multi-stage: prover build → matcher build
├── src/ Frontend (React + Vite)
│ ├── features/landing/ Marketing site
│ ├── features/trade/ Trading terminal
│ ├── features/orders/ Order history
│ ├── features/stats/ Protocol stats dashboard
│ └── features/docs/ Protocol documentation
├── shared/addresses.json Deployed contract addresses
├── supabase/migrations/ DB schema (order_secrets + match_jobs)
├── .github/workflows/ci.yml 3-job CI pipeline
├── README.md This file
└── DEPLOY.md Full setup and deployment guide
All three contracts are verified on Sepolia Etherscan.
| Contract | Address |
|---|---|
| OrderBook | 0x2C0E2bC142514f6B0200112049FD21D9519B3908 |
| Settlement | 0xF233DBDeb51c7cD7Ee69AC83Ad7cE698c5B62dD2 |
| Groth16 Verifier | 0x0b5e7E4443CFF7745fb8B28E1E7fdeEBc99bB7eC |
Live settlement transaction:
0x33225b04d725dd77d19f238dae3b97e07851a12639e65e7e4808a8487286cce9
The calldata contains a full Groth16 proof (pA, pB, pC — G1, G2, G1 points on BN128), both commitment hashes, and the clearing price. The OrdersSettled and two CommitmentSettled events confirm both traders received their escrowed ETH.
Full instructions are in DEPLOY.md. The short version:
# Clone and install
git clone https://github.com/vamshiganesh/ShadowPool.git
cd ShadowPool && npm install
# Configure environment
cp .env.example .env
# Fill in VITE_SEPOLIA_RPC_URL and matcher credentials
# Build the prover (required before starting matcher)
cd prover && npm install && npm run build && cd ..
# Terminal 1: frontend
npm run dev
# Terminal 2: matcher
cd services/matcher && npm install && npm run dev
# Health check
curl http://localhost:3001/healthFor a full settlement demo you need two MetaMask accounts on Sepolia, Sepolia ETH in both, and the matcher running. Use the same amount on both wallets (e.g. 2.5 ETH) with crossing prices. See DEPLOY.md — Try a full settlement for the step-by-step walkthrough including what each MetaMask popup is asking.
Three independent jobs run on every push and pull request to main. The matcher job requires the prover to finish first because the matcher worker spawns prover/dist/service-entry.js at runtime.
flowchart LR
Push["git push"]
subgraph Jobs["GitHub Actions"]
FE["frontend\ntypecheck + build"]
PR["prover\nnpm run build"]
MT["matcher\ntypecheck + build\n(needs: prover)"]
end
Push --> FE & PR
PR --> MT
ShadowPool is a research and portfolio demonstration on Ethereum Sepolia. It is not audited for mainnet production use.
| Topic | Detail |
|---|---|
| Smart contract audit | Not conducted |
| Circuit audit | Not conducted |
| Secret storage | Encrypted with AES-256-GCM; Supabase holds ciphertext only |
| Prover key exposure | The .zkey file stays server-side; the frontend never receives it |
| Trader auth | EIP-191 signature verified server-side before secrets are stored |
| Prover wallet | Separate from all trader wallets; pays gas only, holds no user funds |
| Front-running on Sepolia | Testnet validators do not run MEV bots; behavior is illustrative of mainnet architecture |
MIT
